2024 Rogue - Engine - Vanguard EFI

2024 Rogue - Engine - Vanguard EFI

The 2024 Rogue Engine - Vanguard EFI offers superior fuel efficiency and power, making it an excellent choice for high-performance mowing. To keep your Vanguard EFI engine in top shape, Bad Boy Mower Parts provides high-quality replacements for air filters, fuel injectors, and other critical components. Regular maintenance with genuine parts ensures your engine continues to deliver peak performance. Our Bad Boy Mower Part Diagrams make it easy to identify and replace necessary components, reducing downtime and keeping your mower running smoothly. Choosing Bad Boy Lawn Mower Parts guarantees durability and compatibility, helping you maintain your mower’s efficiency. Ordering through Bad Boy Parts Online ensures a seamless shopping experience with quick delivery. Plus, enjoy Free Shipping On Orders Over $100, so you can get the parts you need without added costs. Shop at BadBoyMowerParts.com today for all your Vanguard EFI engine maintenance needs.

Bad Boy Mower Parts Lookup

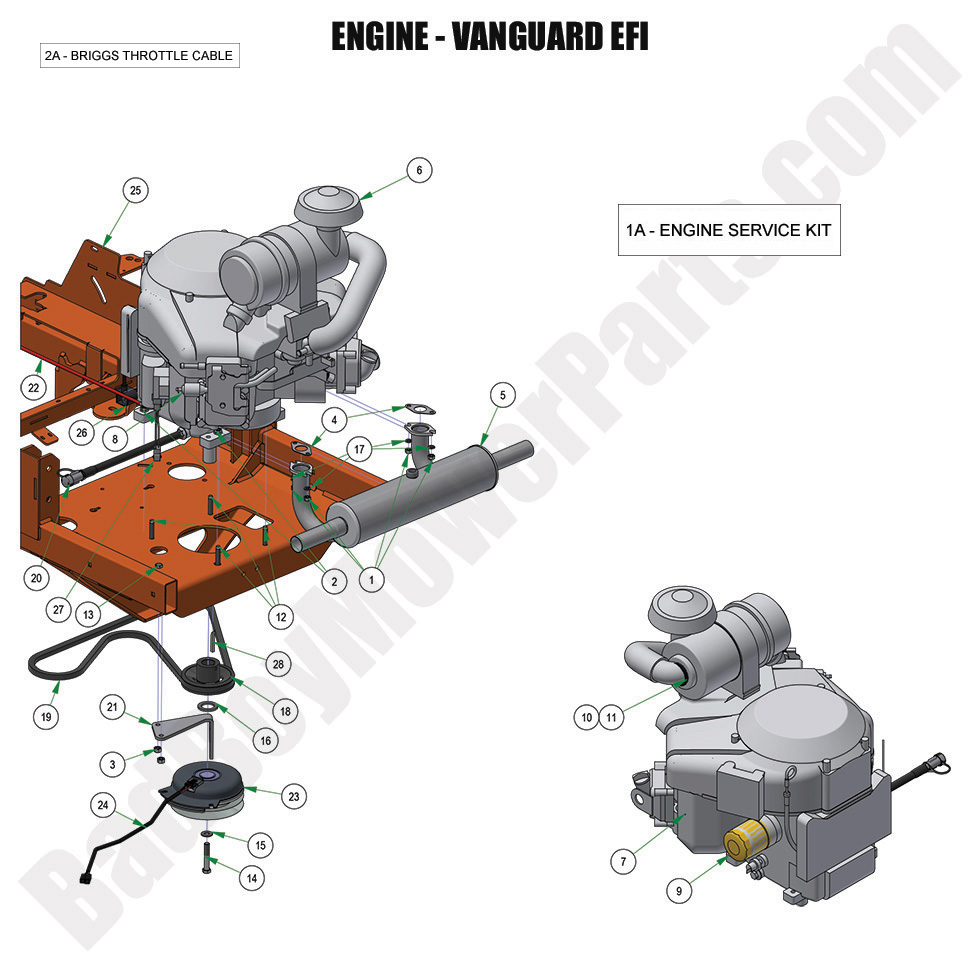

2024 Rogue - Engine - Vanguard EFI
  Position Number SKU Product Title Price
1A 063-2000-22 063-2000-22 - Engine Service Kit - Briggs Vanguard 810/993/999cc (EFI Models Only)
$127.15
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2A 055-8021-75 055-8021-75 - 52" Throttle Cable ONLY (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
4 015-0025-00 015-0025-00 - Exhaust Gasket for Vanguard (obsolete)
use part #015-2708-00
$16.04
5 015-1014-00 015-1014-00 - Exhaust (See Models Used On For Details)
$199.00
7 015-8000-03 015-8000-03 - Spark Plug for Vanguard 37hp EFI and 28hp EFI (Not for Non-EFI)
$7.69
8 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
9 063-8018-00 063-8018-00 - Oil Filter
$21.39
10 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
11 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
12 018-0061-00 018-0061-00 - 3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt
$5.93
13 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
14 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
15 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
16 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
17 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
18 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
19 041-8051-00 041-8051-00 - Rogue Pump Belt 68"
$80.24
20 051-5402-00 051-5402-00 - 14mm Oil Drain Hose-36hp Vanguard
$31.22
21 057-5906-00 057-5906-00 - PTO Engager Holder-Clutch (See Models Used On For Details)
$20.67
22 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
23 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
24 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
25 070-2305-00 070-2305-00 - 2023-Newer Rogue Frame--Orange
$1299.99
26 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
