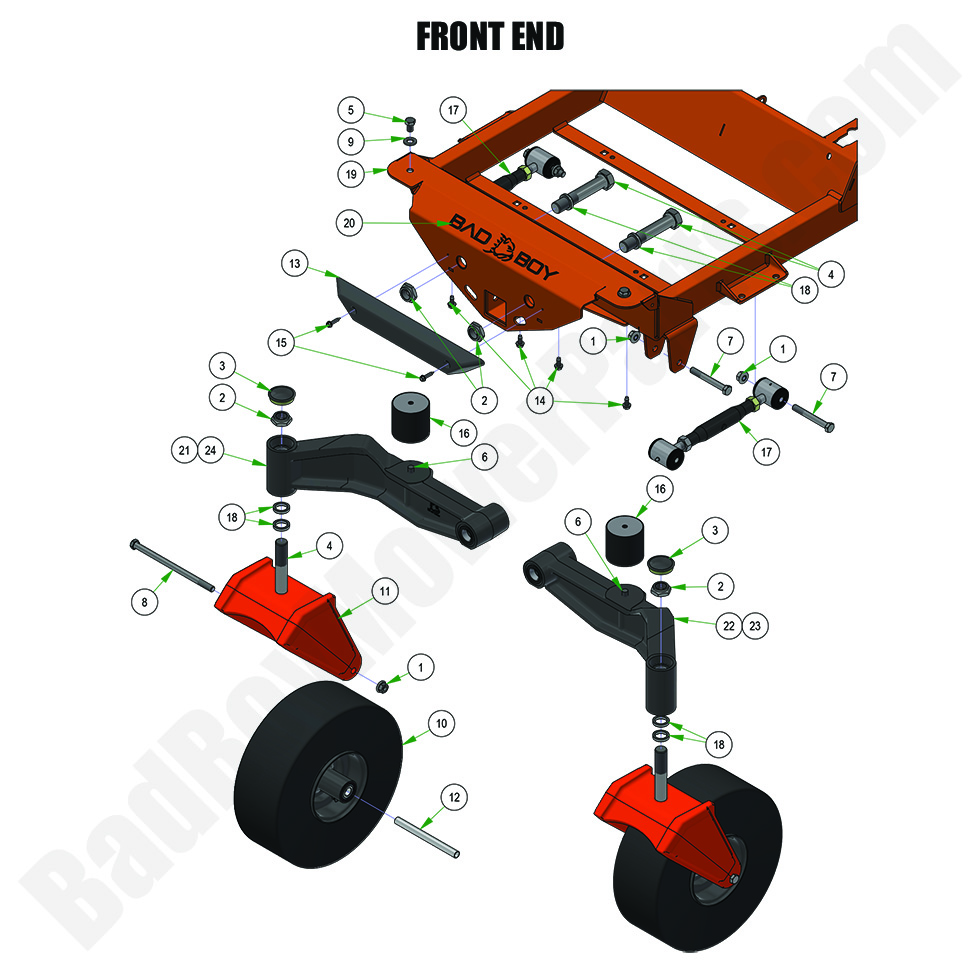

2024 Rogue - Front End

2024 Rogue - Front End

The 2024 Rogue Front End is built for durability and stability, ensuring smooth operation on various terrains. If you need to replace worn-out components like caster wheels, axles, or brackets, Bad Boy Mower Parts has everything you need to restore your mower’s front end. Maintaining these components ensures better handling and longer-lasting performance. Our Bad Boy Mower Part Diagrams provide a detailed guide, making it easy to locate the right parts for your specific model. Using high-quality Bad Boy Lawn Mower Parts helps maintain the structural integrity and functionality of your mower. Ordering from Bad Boy Parts Online allows you to get the exact parts you need quickly and easily. Plus, take advantage of Free Shipping On Orders Over $100, making it even more convenient to keep your mower in top shape. Visit BadBoyMowerParts.com today to shop for front-end components.

Bad Boy Mower Parts Lookup

2024 Rogue - Front End
  Position Number SKU Product Title Price
1 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
2 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
3 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
4 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
5 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
6 018-2009-00 018-2009-00 - 1/2-13 x 1" Stud
$5.82
7 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
8 018-7010-00 018-7010-00 - 1/2-13 X 9" Hex Bolts Zinc
$5.82
9 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
10 022-0003-00 022-0003-00 - 15x6.00-6 No-Flat Black Front Assembly
$159.99
11 023-0004-20 023-0004-20 2021-2024 R Series Cast Front Fork
$179.99
12 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
13 029-8000-00 029-8000-00 - Front Bumper (See Models Used On For Details)
$31.17
14 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
15 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
16 032-8999-00 032-8999-00 - Vibration Mount - Blue Dot Rear Mount for Diesel Models
$64.22
17 048-8000-00 048-8000-00 Turnbuckle Assembly (obsolete)
use part #048-9000-00
$80.24
18 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
19 070-2305-00 070-2305-00 - 2023-Newer Rogue Frame--Orange
$1299.99
20 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
21 250-0032-03 250-0032-03 - 2022 61/ 72 Rogue/Renagade Front Suspens
$279.99
23 250-0033-03 250-0033-03 - 2022 61/72 Rogue/Renegade Front Suspensi
$279.99
