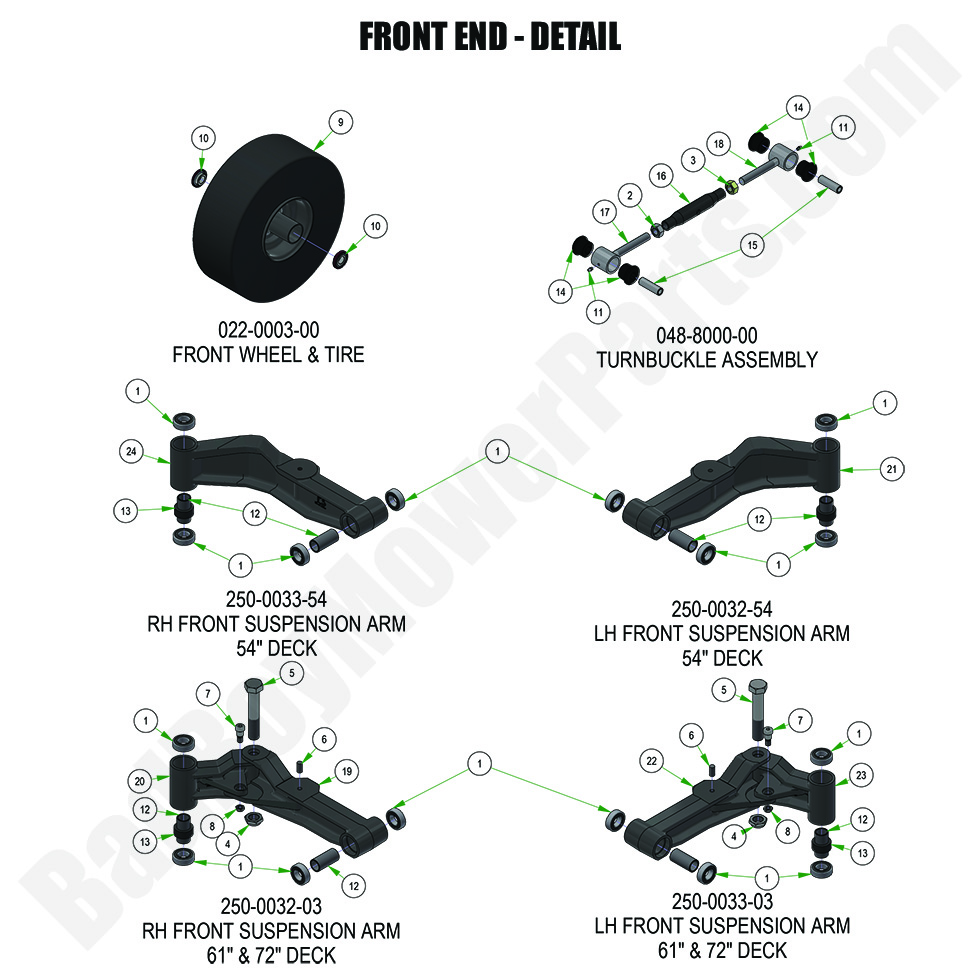

2024 Rogue - Front End - Detail

2024 Rogue - Front End - Detail

The 2024 Rogue Front End - Detail highlights the critical components responsible for stability and maneuverability. If your front-end parts are worn or damaged, Bad Boy Mower Parts provides high-quality replacements for caster wheels, bushings, and mounting brackets. Ensuring these components are in optimal condition enhances your mower’s control and efficiency. With our Bad Boy Mower Part Diagrams, you can quickly locate and replace the right parts without confusion. Using durable Bad Boy Lawn Mower Parts helps extend the lifespan of your mower while maintaining peak performance. Shopping through Bad Boy Parts Online ensures a seamless purchasing process, allowing you to get the correct components without delay. Plus, enjoy Free Shipping On Orders Over $100, making it easier than ever to maintain your mower. Visit BadBoyMowerParts.com today for all your front-end replacement needs and keep your 2024 Rogue running like new.

Bad Boy Mower Parts Lookup

2024 Rogue - Front End - Detail
  Position Number SKU Product Title Price
1.2 250-0032-03 250-0032-03 - 2022 61/ 72 Rogue/Renagade Front Suspens
$279.99
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
2.0 048-8000-00 048-8000-00 Turnbuckle Assembly (obsolete)
use part #048-9000-00
$80.24
2 013-0030-00 013-0030-00 - Hex Nut M20-2.5 No Longer Available
Obsolete.
3 013-0031-00 013-0031-00 - Hex Nut M20-2.5 Left Hand Thread No Longer Available
Obsolete.
4 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
5 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
6 018-2009-00 018-2009-00 - 1/2-13 x 1" Stud
$5.82
7 018-3001-00 018-3001-00 - 5/8 x 5/8 Shoulder Bolt
$15.61
8 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
9.0 022-0003-00 022-0003-00 - 15x6.00-6 No-Flat Black Front Assembly
$159.99
9 022-0004-00 022-0004-00 - 15x6-6 Tire Only
$85.59
10 022-7010-00 022-7010-00 - 1 3/4" Bearing - Large Bore Front Wheel
$20.32
11 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
12 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
13 029-7050-00 029-7050-00 - Rubber Stabilizer (Front Fork)
$8.74
14 032-2000-00 032-2000-00 - Toplink Bushing (See Models Used On For Detail)
$4.37
15 032-2001-00 032-2001-00 - Toplink Sleeve (See Models Used On For Detail)
$4.37
16 048-8020-00 048-8020-00 - 2024 Turnbuckle Body (obsolete)
use part #048-8000-00
$80.24
17 048-8021-00 048-8021-00 - Turnbuckle End Right-Handed Thread (obsolete)
use part #048-8000-00
$80.24
18 048-8022-00 048-8022-00 - Turnbuckle End Left-Handed Thread (obsolete)
use part #048-8000-00
$80.24
19 250-0032-01 250-0032-01 - 61" & 72" Rogue Front Suspension Arm Inner RH
$269.99
20 250-0032-02 250-0032-02 - 61" & 72" Rogue Front Suspension Arm Outer RH
$269.99
22 250-0033-01 250-0033-01 - 61" & 72" Rogue Front Suspension Arm Inner LH
$229.99
23 250-0033-02 250-0033-02 - 61" & 72" Rogue Front Suspension Arm Outer LH
$209.99
