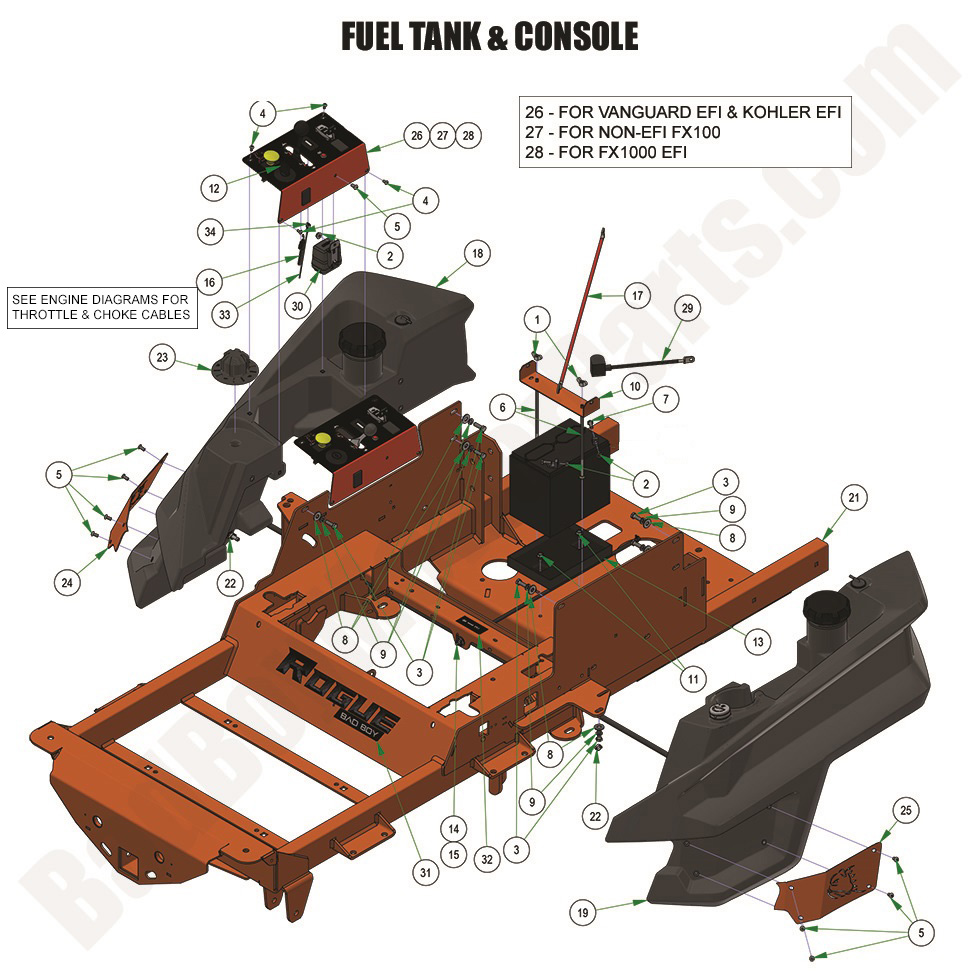

2024 Rogue - Fuel Tanks & Console

2024 Rogue - Fuel Tanks & Console

The 2024 Rogue Fuel Tanks & Console house critical components for fuel storage and mower operation. If your fuel tank assembly, gauges, or console components need replacing, Bad Boy Mower Parts has everything required for a proper repair. Maintaining these parts ensures consistent fuel flow and mower functionality. Our Bad Boy Mower Part Diagrams offer an easy way to identify and install the necessary parts, ensuring precision repairs. Choosing durable Bad Boy Lawn Mower Parts helps maximize performance and longevity. Ordering from Bad Boy Parts Online provides access to high-quality fuel tank and console parts, making maintenance simple and efficient. Plus, enjoy Free Shipping On Orders Over $100, helping you save while keeping your mower in peak condition. Visit BadBoyMowerParts.com today to browse our selection and restore your fuel system and console to optimal performance.

Bad Boy Mower Parts Lookup

2024 Rogue - Fuel Tanks & Console
  Position Number SKU Product Title Price
1 013-8051-00 013-8051-00 - 1/4-20 Wing Nuts Zinc
$2.99
2 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
3 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
4 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
5 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
6 018-8050-00 018-8050-00 - 1/4-20 X 8 Carriage Bolts Zinc Bolt for Battery Hold Down
$2.99
7 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
8 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
9 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
10 026-0312-00 026-0312-00 - Battery Hold Down Plate - Orange
$21.39
11 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
12 042-9000-00 042-9000-00 - Ignition Key
$4.06
13 043-8931-00 043-8931-00 - 2023 Battery Tray Only
$20.32
17 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
18 067-9950-50 067-9950-50 - Rebel/Rogue/Renegade Right Fuel Tank
$341.99
19 067-9960-50 067-9960-50 - Rebel/Rogue/Renegade Left Fuel Tank
$262.99
21 070-2305-00 070-2305-00 - 2023-Newer Rogue Frame--Orange
$1299.99
22 072-8076-00 072-8076-00 - 12.5mm/15mm OETIKER 2 Ear Clamp
$2.99
23 077-9001-00 077-9001-00 - Deck Height Dial Knob 2 to 6 2019-2022 Renegade & Rogue
$21.39
24 079-3290-00 079-3290-00 - Right Fuel Tank Insert 2019-& Up Rebel, Renegade, & Rogue
$8.79
25 079-3291-00 079-3291-00 - Renegade/Rogue/Rebel Left Fuel Tank Insert
$8.79
26 079-3481-10 079-3481-10 - Rogue/Rebel EFI Control Panel Assy
$109.00
27 079-3481-19 079-3481-19 - Rebel/Rogue Control Panel Assy (See Models Used On for Detail)
$109.00
28 079-3581-22 079-3581-22 - Drive by Wire Control Panel (See Models Used On For Detail)
$199.99
29 086-0005-00 086-0005-00 - Cable - Starter to Chassis (See Models Used On For Details)
$10.21
30 086-2050-19 086-2050-19 - Wiring Harness-No Display 2019-2025 Rebel & Rogue
$363.44
31 091-0516-00 091-0516-00 - MY24 Rogue Back Plate & Front Decal
$10.99
32 091-6022-00 091-6022-00 R-Series Shut Off Valve Decal
$2.99
34 216-1051-00 216-1051-00 - Female Terminal End
$2.99
