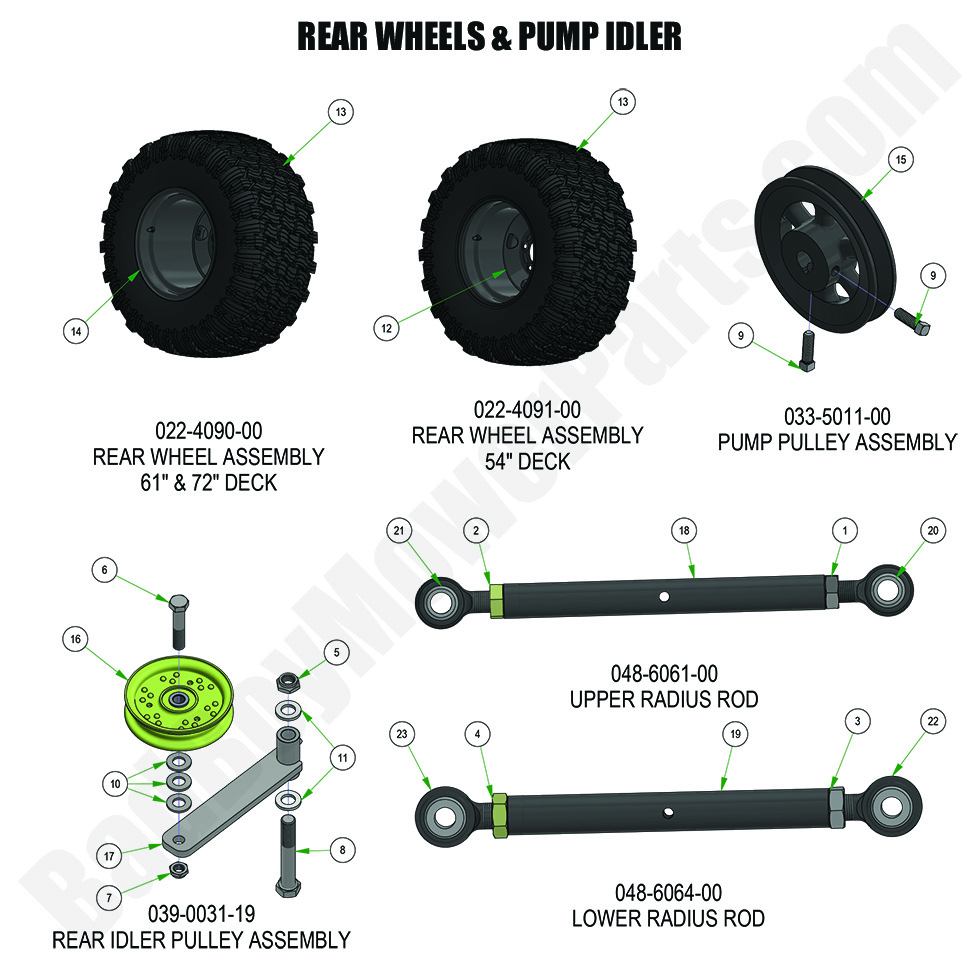

2024 Rogue - Rear Wheels & Pump Idler

2024 Rogue - Rear Wheels & Pump Idler

The 2024 Rogue Rear Wheels & Pump Idler are essential for smooth operation and power distribution. Worn-out wheels or a failing pump idler can cause performance issues, making timely replacement necessary. Bad Boy Mower Parts offers high-quality replacements, ensuring durability and longevity. Keeping these components in top condition enhances handling and extends the life of your mower. Our Bad Boy Mower Part Diagrams provide an easy-to-follow guide for identifying and installing the right parts. Using authentic Bad Boy Lawn Mower Parts ensures compatibility and reliable performance. When you shop at Bad Boy Parts Online, you get quick access to essential parts for easy repairs. Plus, with Free Shipping On Orders Over $100, you save while keeping your mower in excellent shape. Visit BadBoyMowerParts.com today for premium rear wheel and pump idler replacements for your 2024 Rogue mower.

Bad Boy Mower Parts Lookup

2024 Rogue - Rear Wheels & Pump Idler
  Position Number SKU Product Title Price
1.0 048-6061-00 048-6061-00 - Rear Radius Rod W/ Greaseable Heim (See Models Used On For Detail)
$58.84
1 013-0019-00 013-0019-00 - Nut, 5/8-18 RH
$4.39
2 013-0020-00 013-0020-00 - Nut, 5/8-18 LH
$4.39
3.0 048-6064-00 048-6064-00 - Suspension linkage (3/4 body | 5/8 Hole)
$78.08
4 013-0028-00 013-0028-00 - 3/4-16 LH Half Nut
$2.99
5.0 039-0031-19 039-0031-19 - Pump Idler Assembly For Rogue (See Models Used On For Details)
$70.97
5 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
6 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
7 018-4010-00 018-4010-00 - 1/2-13 Nylon Insert Jam Locknut Zinc Orange Nylon
$2.99
8 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
9.0 033-5011-00 033-5011-00 - Cast Pump Pulley - 17mm AOS/Diesel Models
$35.48
9 018-8072-00 018-8072-00 - 5/16-18 X 1 Set Screw (Square-Head w/Cup-Point)
$2.99
10 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
11 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
12.0 022-4091-00 022-4091-00 - 2019-2022 54" Tire Assy-26x12-12 Reaper Turf-8.5" Rim 54 Rogue Models only 8.5 Wide W
$379.99
12 022-4070-00 022-4070-00 - Black Wheel 12x8.5 (See Models Used On for Detail)
$141.99
13.0 022-4090-00 022-4090-00 - 26x12-12 Reaper Tire/Wheel Assembly
$371.99
13 022-4085-00 022-4085-00 - 2019-2025 26x12-12 Reaper Turf
$249.99
14 022-4086-00 022-4086-00 - 2019-2022 10.5" Wheel Fits 022-4090-00
$190.99
16 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
17 039-0031-00 039-0031-00 - Idler Arm (See Models Used On For Details)
$27.06
18 048-0001-00 048-0001-00 - Suspension Link Body-RH and LH Threads 2019-& Up Renegade & Rogue
$28.32
19 048-0002-00 048-0002-00 - Rear Radius Rod (3/4 Body) [Rogue, Reneg No Longer Available
Obsolete.
20 048-6062-00 048-6062-00 - RH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
21 048-6063-00 048-6063-00 - LH 5/8" Heim For Suspension (See Models Used On For Details)
$42.58
22 048-6065-00 048-6065-00 - 3/4 Body 5/8 Hole, Heim RH (See Models Used On For Details)
$42.58
23 048-6066-00 048-6066-00 - 3/4 Body 5/8 Hole, Heim LH (See Models Used On For Details)
$42.58
