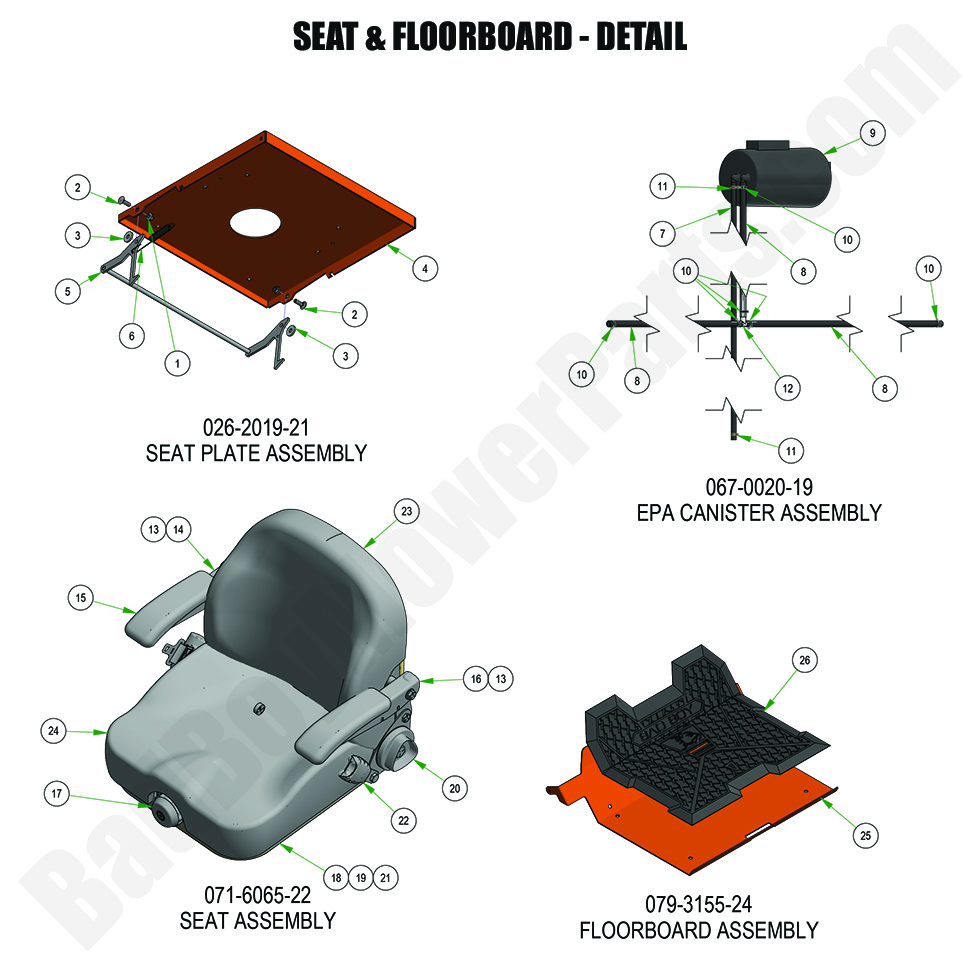

2024 Rogue - Seat  & Floorboard - Detail

2024 Rogue - Seat & Floorboard - Detail

The 2024 Rogue Seat & Floorboard - Detail is designed for operator comfort and control, ensuring a smooth mowing experience. Over time, seat cushions, brackets, or floorboard panels may need replacement due to wear. Bad Boy Mower Parts provides top-quality replacements to keep your mower comfortable and functional. Our Bad Boy Mower Part Diagrams make it easy to find and replace worn components, minimizing downtime. Using genuine Bad Boy Lawn Mower Parts helps maintain the durability and reliability of your mower’s seating and floorboard area. Ordering through Bad Boy Parts Online ensures quick access to the parts you need for fast repairs. Plus, take advantage of Free Shipping On Orders Over $100, making maintenance more affordable. Visit BadBoyMowerParts.com today to find high-quality seat and floorboard components for your 2024 Rogue and enjoy a more comfortable ride.

Bad Boy Mower Parts Lookup

2024 Rogue - Seat  & Floorboard - Detail
  Position Number SKU Product Title Price
1.0 026-2019-21 026-2019-21 - R-Series Seat Plate Assembly
$149.99
1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
2 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
3 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
4 026-2019-00 026-2019-00 - Seat Plate 2019-2024 Rebel, Renegade & Rogue
$99.32
5 028-0090-00 028-0090-00 - Seat Latch Rod Assembly (See Models Used On For Detail)
$38.97
6 034-1025-00 034-1025-00 - Brake Spring (See Models Used On For Detail)
$12.48
7.0 067-0020-19 067-0020-19 - EPA Cannister Assembly Rebel/Renegade Gas/Rogue (See Models Used On For Details)
$47.62
7 051-2025-66 051-2025-66 - 66" 3/16 Vinyl EPA Line
$13.26
8 051-8072-38 051-8072-38 - 38" 1/4 Vinyl Tubing
$28.39
9 067-0020-00 067-0020-00 - Carbon Canister
$62.40
10 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
11 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
12 073-8068-00 073-8068-00 - Fuel Line T
$9.70
13.0 071-6065-22 071-6065-22 - Suspension Seat with Seatbelt (See Models Used On For Details) (obsolete)
use part #071-6065-25
$829.99
13 071-6065-04 071-6065-04 - Arm Kit for 071-6065-00
$136.99
14 071-6065-11 071-6065-11 RH Armrest-Selfskin Front Adj. for 071-6065-22
$119.99
15 071-6065-03 071-6065-03 - Arm Pad for 071-6065-00
$33.16
16 071-6065-12 071-6065-12 - LH Armrest-Selfskin Front Adj. for 071-6065-22
$119.99
17 071-6065-05 071-6065-05 - Weight Adjustment Knob for 071-6065-00
$32.09
18 071-6065-06 071-6065-06 - Tracks for 071-6065-00 (See Models Used On For Details)
$99.37
19 071-6065-07 071-6065-07 - Seat Switch for 071-6065-00
$21.28
20 071-6065-10 071-6065-10 - Recliner Adjustment Knob
$32.09
21 071-6065-13 071-6065-13 Bellows w/Hardware for 071-6065-22
$64.19
22 071-6065-14 071-6065-14 - 2" Retractable Belt Kit w/Spacers for 07
$119.99
23 071-6065-15 071-6065-15 Back Cover for I3M - Recl - Logos for 071-6065-22
$199.99
24 071-6065-16 071-6065-16 Cushion Cover Kit for I3M - Logo for 071-6065-22
$153.99
26 081-2024-00 081-2024-00 - 2024 R-Series Floor Mat No Longer Available
Obsolete.
