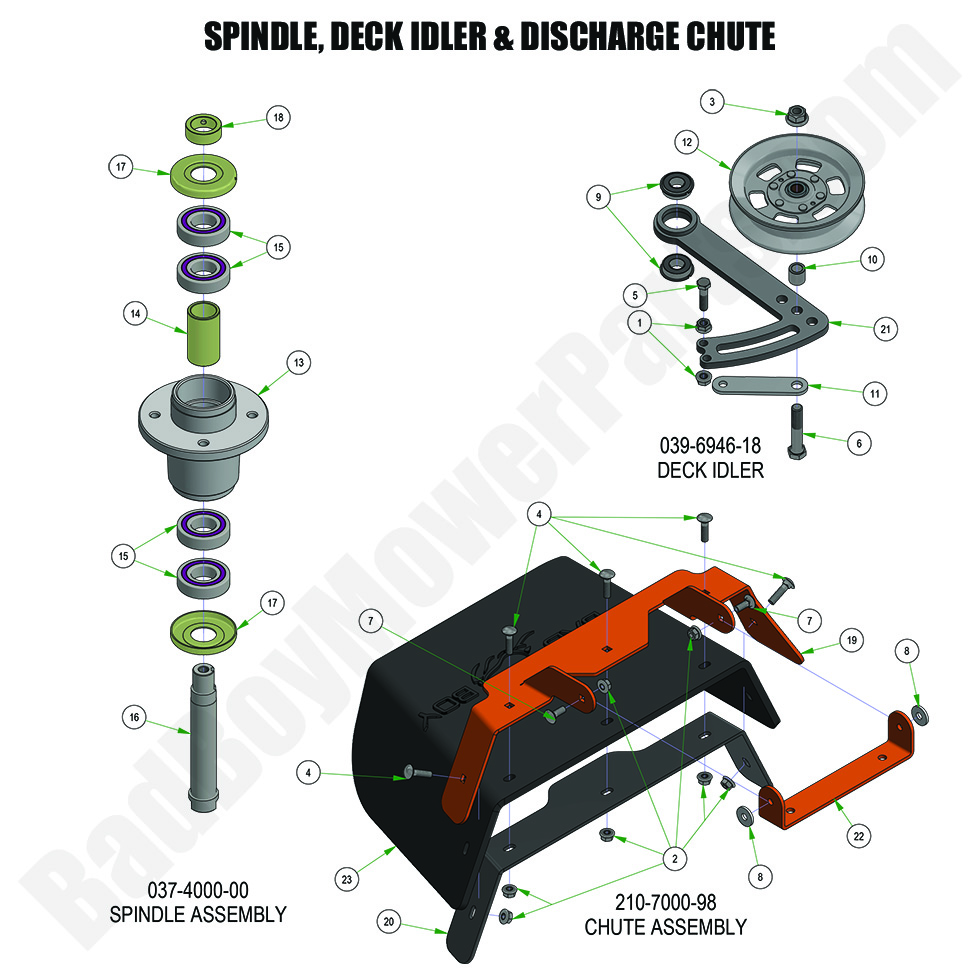

2024 Rogue - Spindle, Idler & Discharge Chute

2024 Rogue - Spindle, Idler & Discharge Chute

The 2024 Rogue Spindle, Idler & Discharge Chute are vital for efficient mowing performance and grass discharge. If your spindle bearings, idler pulleys, or discharge chute are damaged, replacing them with Bad Boy Mower Parts ensures smooth operation. A well-maintained spindle and idler system help improve cutting performance, while a sturdy discharge chute ensures proper grass dispersion. Our Bad Boy Mower Part Diagrams provide a detailed breakdown of components, making part identification and replacement simple. Using authentic Bad Boy Lawn Mower Parts guarantees durability and compatibility with your mower. Ordering from Bad Boy Parts Online ensures quick and easy access to essential repair parts. Plus, enjoy Free Shipping On Orders Over $100, making it more affordable to maintain your mower. Visit BadBoyMowerParts.com today for high-quality spindle, idler, and discharge chute replacements to keep your 2024 Rogue performing at its best.

Bad Boy Mower Parts Lookup

2024 Rogue - Spindle, Idler & Discharge Chute
  Position Number SKU Product Title Price
1.0 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2.0 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
4 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
5 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
6 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
7 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
8 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
9 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
10 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
11 026-0167-00 026-0167-00 - Belt Tensioner Retainer Plate 2019-2022 Rebel, Renegade & Rogue
$26.74
12 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
13.0 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
14 037-4002-00 037-4002-00 - Spindle Spacer (See Models Used On For Details)
$7.28
15 037-6023-00 037-6023-00 - Spindle Bearing (See Models Used On For Details) (obsolete)
use part #037-6029-00
$42.58
16 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
17 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
18 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
19 039-4893-00 039-4893-00 - Upper Chute Bracket (See Models Used On For Details)
$46.84
20 039-4894-00 039-4894-00 - Lower Chute Bracket (See Models Used On For Details)
$43.72
21 039-6946-00 039-6946-00 - Deck Tensioner 2019-2025 Rebel, Renegade & Rogue
$35.48
22 206-6018-00 206-6018-00 - Chute Hanger 2019-2025 Rebel, Revolt, Renegade & Rogue
$9.67
23 210-6025-00 210-6025-00 - Belted Chute with Logo 2019-& Up Rebel, Revolt, Renegade & Rogue
$62.40
