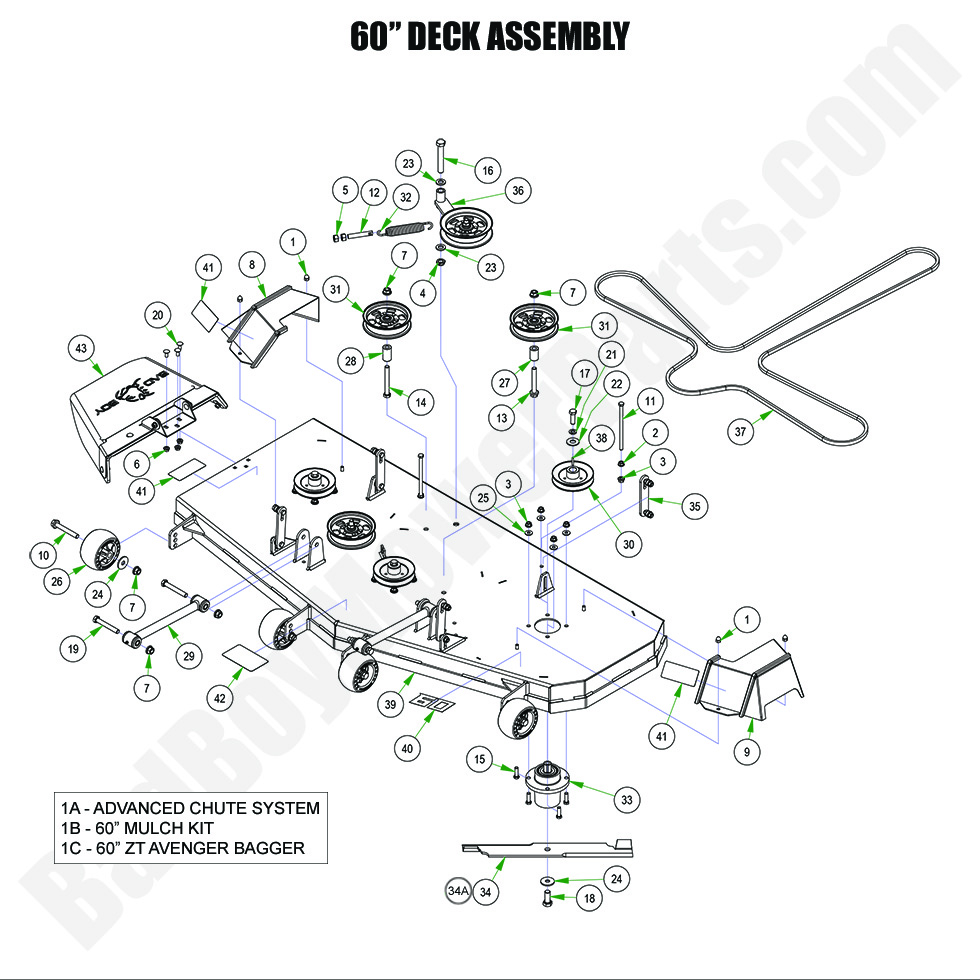

2024 ZT Avenger - 60" Deck Assembly

2024 ZT Avenger - 60" Deck Assembly

The 2024 ZT Avenger 60" Deck Assembly is designed to provide precision and durability for your mowing needs. At BadBoyMowerParts.com, we offer a variety of components to maintain and repair your deck, from deck spindles to blade mounting hardware. With our easy-to-use Bad Boy Mower Part diagrams, you can quickly identify the correct parts for your mower's 60" deck. Whether you need Bad Boy Mower Parts for a tune-up or specific Bad Boy Lawn Mower Parts for deck repairs, our comprehensive selection will meet your needs. Shopping for Bad Boy Parts Online allows you to find the exact parts you need without the hassle of searching at multiple locations. Don’t forget, with Free Shipping On Orders Over $100, you can ensure that your 2024 ZT Avenger 60" Deck Assembly stays in peak condition without any extra cost for delivery.

Bad Boy Mower Parts Lookup

2024 ZT Avenger - 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-4842-00 088-4842-00 - Advanced Chute System for all MZ, MZ Magnum & ZT Avenger decks
$249.00
1B 210-0160-50 210-0160-50 60" Mulch Kit w/blades (See Models Used On For Details)
$318.45
1C 088-1938-00 088-1938-00 - 60" Avenger 2-Bagger
$2499.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-5020-00 014-5020-00 - 2021-2022 Maverick 54"/60" RH Pulley Cover
$28.39
9 014-5021-00 014-5021-00 - 2021-2022 Maverick 54"/60" LH Pulley Cover
$28.39
10 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
11 018-0073-00 018-0073-00 - 3/8-16 x 6.5 Hex Head GR.5
$3.29
12 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
13 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
14 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
15 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
16 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
19 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
20 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
21 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
22 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
23 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
24 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
25 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
26 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
27 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
28 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
29 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
30 033-4301-00 033-4301-00 - Spindle Pulley
$42.58
31 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
32 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
33 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
34A 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2025 Revolt SD 42"
$22.99
34 038-6060-00 038-6060-00 - 60" High Lift Fusion Blade & 2023-2025 Revolt SD 42"
$22.99
35 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
36 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
37 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
38 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
39 060-2315-00 060-2315-00 - 2023 ZT Avenger Deck--Painted
$1399.99
40 091-0505-00 091-0505-00 - MY24 60" Deck Decal
$10.99
41 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
42 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
43 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
