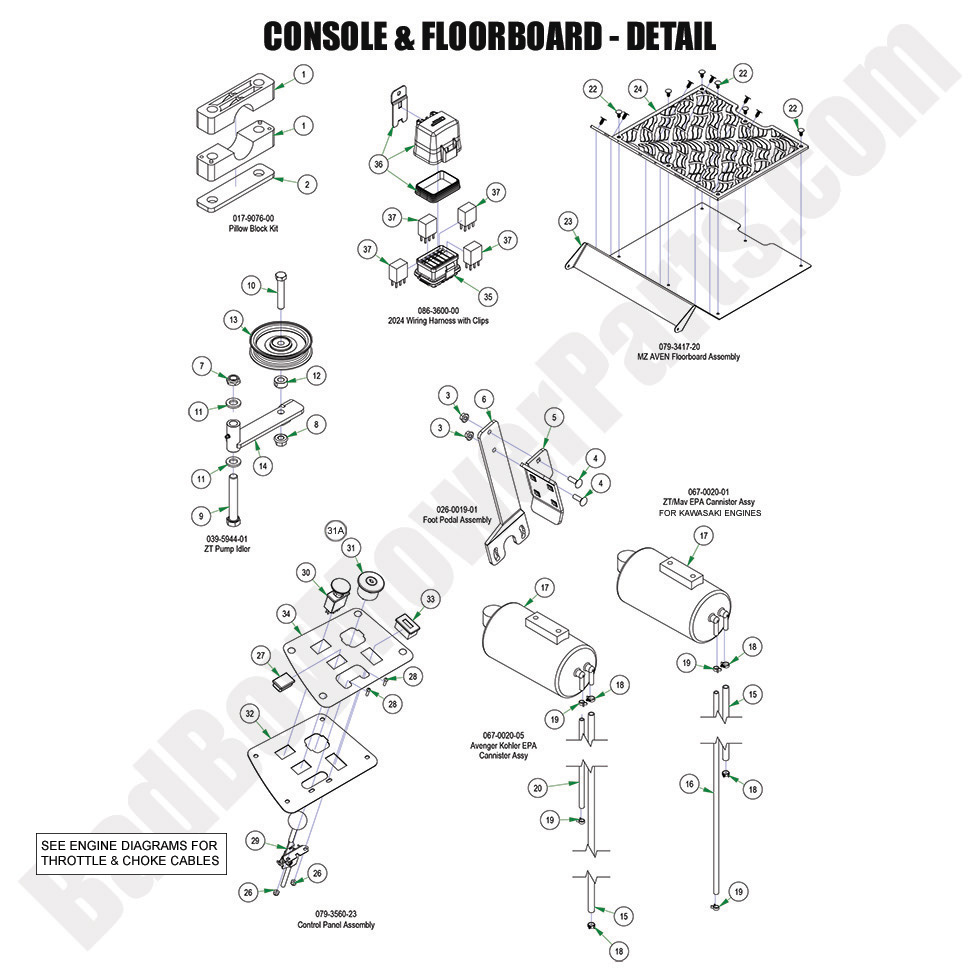

2024 ZT Avenger - Control Panel & Floorboard

2024 ZT Avenger - Control Panel & Floorboard

The 2024 ZT Avenger Control Panel & Floorboard is a critical part of your mower’s comfort and functionality. At BadBoyMowerParts.com, we provide a wide range of replacement and upgrade parts to keep your control panel and floorboard in excellent condition. Our detailed Bad Boy Mower Part diagrams make it easy to locate the parts you need to replace or repair your control panel and floorboard. Whether you're looking for Bad Boy Mower Parts for essential maintenance or Bad Boy Lawn Mower Parts to improve performance, our inventory has everything you need. Shopping for Bad Boy Parts Online ensures you get high-quality components delivered directly to your door. Plus, we offer Free Shipping On Orders Over $100, making it more affordable to keep your 2024 ZT Avenger Control Panel & Floorboard in top shape for a smoother and safer mowing experience.

Bad Boy Mower Parts Lookup

2024 ZT Avenger - Control Panel & Floorboard
  Position Number SKU Product Title Price
1.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
2 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
3.0 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
6 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
7.0 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
7 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
8 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
9 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
10 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
11 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
12 025-7036-00 025-7036-00 - 1/2 Set Collar w/set screw
$4.60
13 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
14 039-5944-00 039-5944-00 - Pump Idler Bracket
$42.58
15.0 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
15 051-2020-01 051-2020-01 - 1/4 Vinyl 46" EPA Line (See Models Used On For Details)
$12.48
16 051-2025-02 051-2025-02 - 3/16 Vinyl 55" EPA Line
$12.48
17 067-0020-00 067-0020-00 - Carbon Canister
$62.40
18 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
19 072-8073-00 072-8073-00 - 3/16" Vinyl Hose Clamp
$2.99
20 051-8073-00 051-8073-00 - 3/16" Vinyl Tubing (Priced Per Foot)
$2.99
22 040-6080-00 040-6080-00 - Ratchet Fastener - Floorboard
$2.99
23 079-3417-00 079-3417-00 - 2017-2024 Floorboard (See Models Used On For Details)
$145.95
24 081-4001-00 081-4001-00 - 2021-2024 Floor Mat W/ Reaper Tread
$53.49
26 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
27 018-1040-00 018-1040-00 - Light Plug
$2.99
28 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
30 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
31A 042-9000-00 042-9000-00 - Ignition Key
$4.06
31 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
32 079-3461-00 079-3461-00 - Control Panel--Orange
$23.53
33 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
34 091-4072-00 091-4072-00 - Control Panel Decal
$9.89
35.0 086-3600-00 086-3600-00 - Wiring Harness With Clips (See Models Used On For Details)
$299.99
36 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
37 086-1202-19 086-1202-19 - Relay Terminal
$24.97
