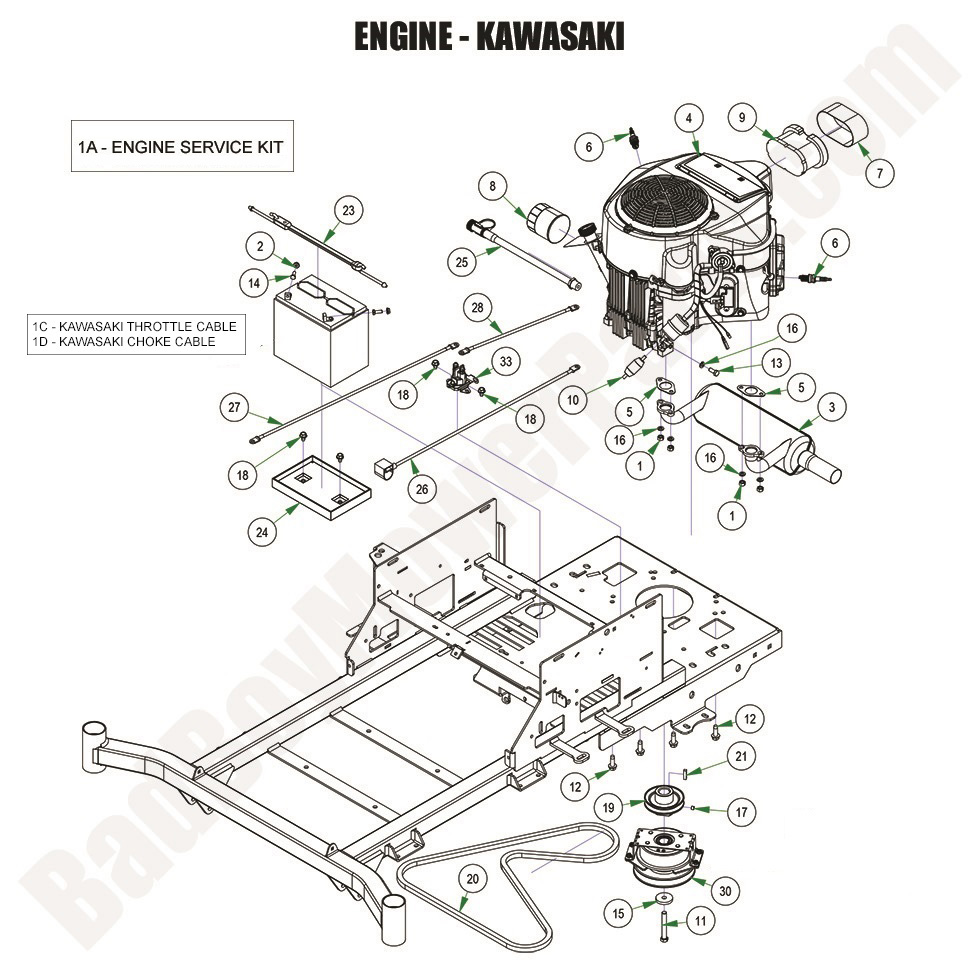

2024 ZT Avenger - Engine - Kawasaki FR691

2024 ZT Avenger - Engine - Kawasaki FR691

The 2024 ZT Avenger Engine - Kawasaki FR691 offers reliable power for your mower, and maintaining it is crucial for smooth operation. At BadBoyMowerParts.com, we carry a variety of components for the Kawasaki FR691 engine, from filters to spark plugs, to ensure its peak performance. Our detailed Bad Boy Mower Part diagrams help you identify the parts you need for repairs or upgrades. Whether you're in need of Bad Boy Mower Parts for engine maintenance or Bad Boy Lawn Mower Parts to keep your mower running smoothly, we have the parts for you. Shopping for Bad Boy Parts Online makes it easy to find the exact components you need. Plus, with Free Shipping On Orders Over $100, you can maintain your 2024 ZT Avenger Engine - Kawasaki FR691 without any additional shipping fees.

Bad Boy Mower Parts Lookup

2024 ZT Avenger - Engine - Kawasaki FR691
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1C 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
1D 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
3 015-0052-00 015-0052-00 - Kawasaki Exhaust MZ/ZT/Maverick/Compact Outlaw (See Models Used On For Details)
$217.48
4 015-0068-00 015-0068-00 - Kawasaki FR691 29.5HP
$2499.99
5 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
6 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
7 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
8 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
9 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
10 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
11 018-0007-21 018-0007-21 - 7/16-20x3 Hex Bolt GR8 w/Patch
$3.29
12 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
13 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
14 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
15 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
16 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
17 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
18 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
19 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
20 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
21 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
23 043-8930-00 043-8930-00 2023 - Rubber Battery Hold Down Strap
$21.39
24 043-8931-00 043-8931-00 - 2023 Battery Tray Only
$20.32
25 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
26 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
27 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
28 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
30 070-0055-00 070-0055-00 - PTO Clutch (See Models Used On For Detail)
$279.99
31 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
33 108-0001-00 108-0001-00 - Solenoid
$29.41
