2024 ZT Avenger - Front Fork

2024 ZT Avenger - Front Fork

The 2024 ZT Avenger Front Fork is vital for the stability and handling of your mower. If you need a replacement or upgrade, BadBoyMowerParts.com offers the parts you need. Our Bad Boy Mower Part diagrams help you easily identify the front fork and related components, so you can quickly place your order. Whether you need Bad Boy Mower Parts for routine maintenance or Bad Boy Lawn Mower Parts for repairs, we have a full selection available. Shopping for Bad Boy Parts Online makes the entire process convenient and efficient. Plus, enjoy Free Shipping On Orders Over $100, so you can get your 2024 ZT Avenger Front Fork delivered right to your door without any extra shipping costs.

Bad Boy Mower Parts Lookup

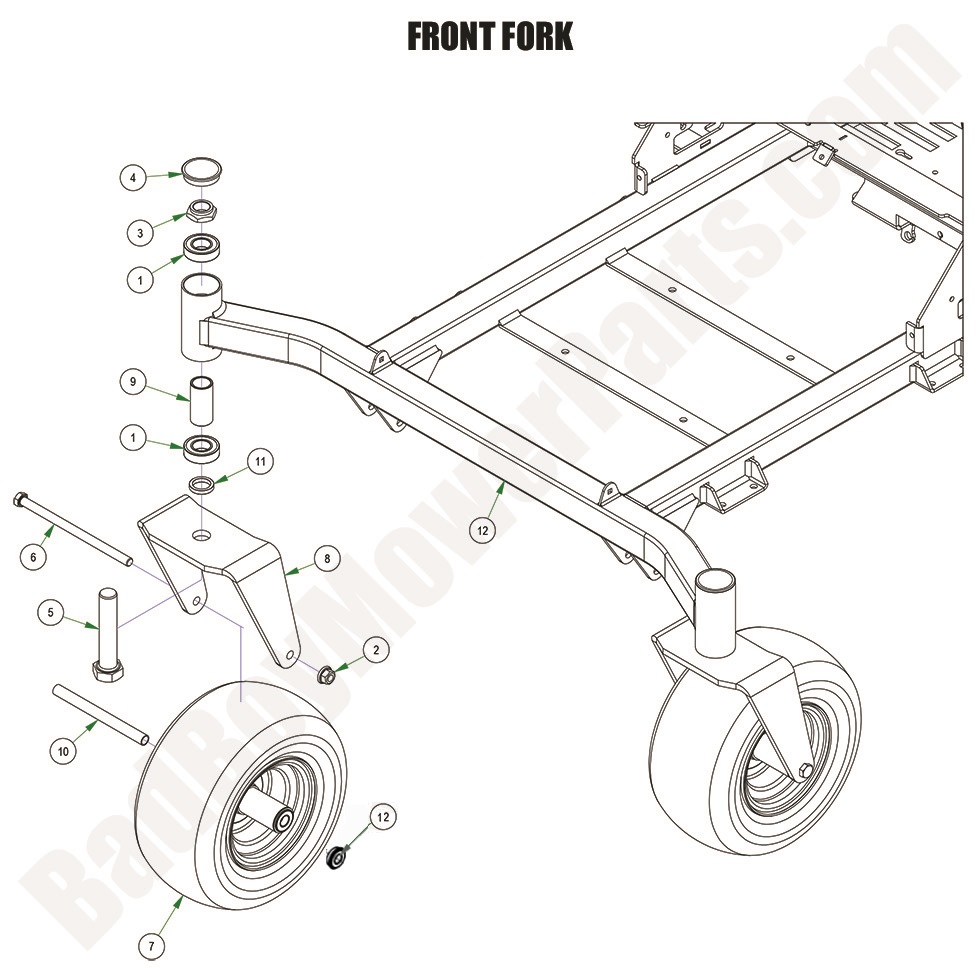

2024 ZT Avenger - Front Fork
  Position Number SKU Product Title Price
1 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
3 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
4 014-2025-00 014-2025-00 - Caster Bearing Cover (See Models Used On For Details)
$2.99
5 018-0005-00 018-0005-00 - 1-14 X 5 BOLT GR 8 Zinc
$7.69
6 018-0040-00 018-0040-00 - 1/2-13 x 8 1/2 Gr5 Hex Bolt
$7.18
7 022-0007-00 022-0007-00 12X6X6 Black Wheel Assembly
$139.99
8 023-0003-00 023-0003-00 - Front Fork (See Models Used On For Details)
$39.04
9 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
10 025-5202-00 025-5202-00 - Front Wheel Spanner-All Models Except MZ
$10.44
11 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
12 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
