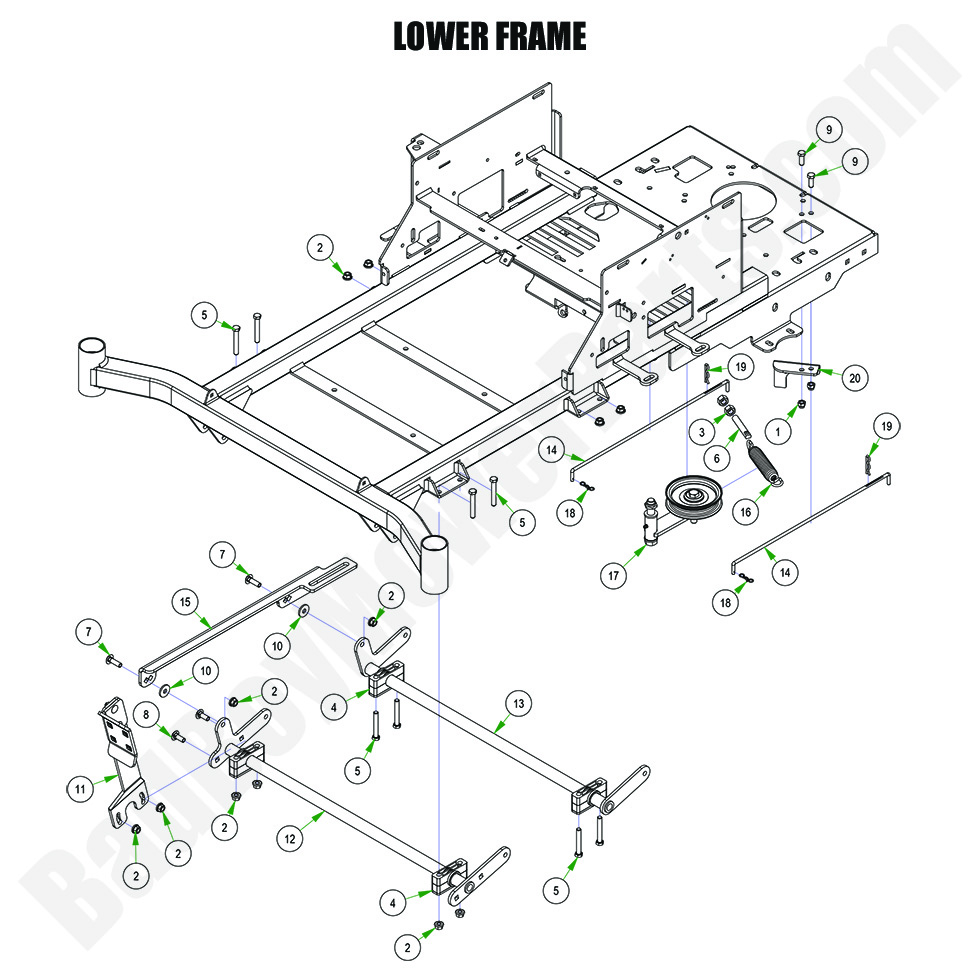

2024 ZT Avenger - Lower Frame

2024 ZT Avenger - Lower Frame

The 2024 ZT Avenger Lower Frame is a crucial part of the mower's structure, providing support for the entire machine. At BadBoyMowerParts.com, we offer high-quality replacement frames designed to fit your model perfectly. Our Bad Boy Mower Part diagrams make it easy to identify and order the right parts for your 2024 ZT Avenger. Whether you need Bad Boy Mower Parts for repairs or Bad Boy Lawn Mower Parts to enhance your machine, our online store has a comprehensive selection. Shopping for Bad Boy Parts Online ensures you get the parts you need delivered quickly. And with Free Shipping On Orders Over $100, replacing or upgrading your 2024 ZT Avenger Lower Frame is more affordable than ever.

Bad Boy Mower Parts Lookup

2024 ZT Avenger - Lower Frame
  Position Number SKU Product Title Price
1 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
4 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
5 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
6 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
7 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
8 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
9 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
10 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
11 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
12 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
13 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
14 028-0070-00 028-0070-00 - Neutral Rod
$12.48
15 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
16 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
17 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
18 044-2004-00 044-2004-00 - Bow Pin
$2.99
19 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
20 057-5900-00 057-5900-00 - Clutch Stop 2017-2024 MZ, 2020-2024 ZT Avenger
$31.17
