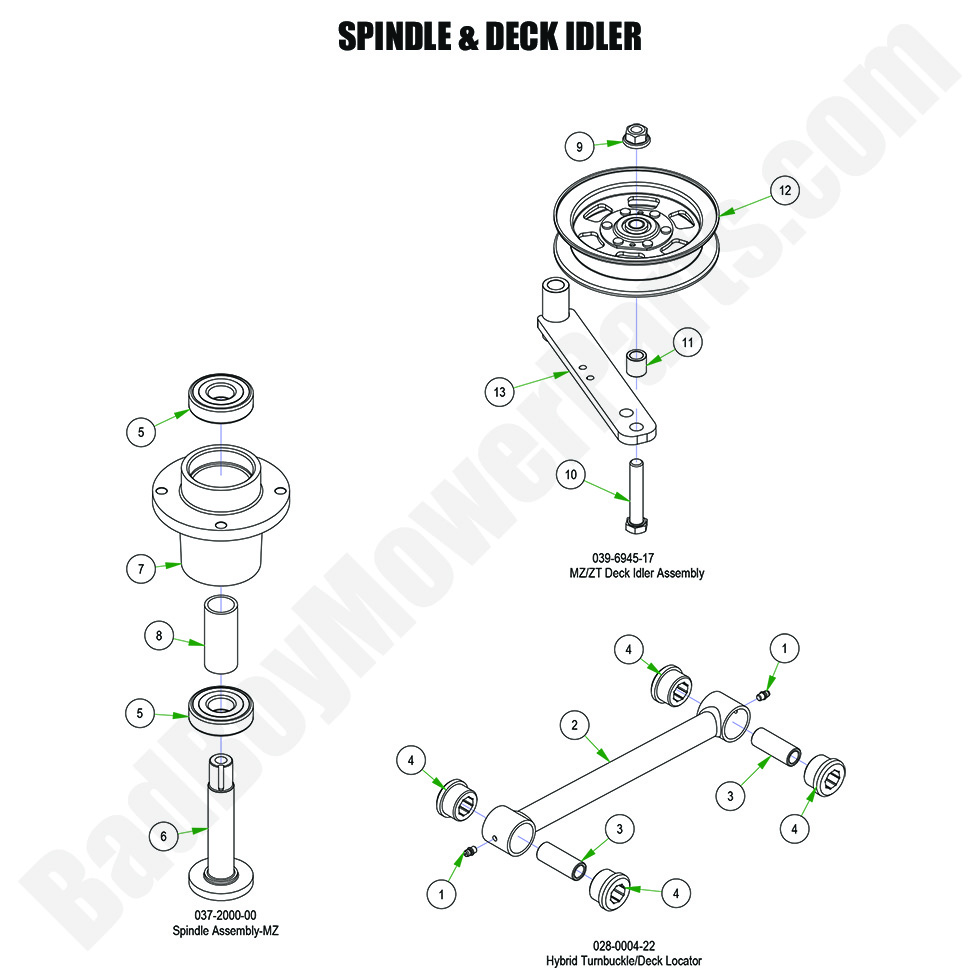

2024 ZT Avenger - Spindle & Deck Idler

2024 ZT Avenger - Spindle & Deck Idler

The 2024 ZT Avenger Spindle & Deck Idler are key components in ensuring that your mower deck operates efficiently. If you need replacements or upgrades, BadBoyMowerParts.com offers everything you need. Our Bad Boy Mower Part diagrams allow you to easily identify the parts for your spindle and deck idler. Whether you're looking for Bad Boy Mower Parts to maintain your deck or Bad Boy Lawn Mower Parts to repair other parts of your mower, we have a wide selection available. Shopping for Bad Boy Parts Online is quick and easy, and with Free Shipping On Orders Over $100, you can keep your 2024 ZT Avenger Spindle & Deck Idler in top shape without the extra shipping fees.

Bad Boy Mower Parts Lookup

2024 ZT Avenger - Spindle & Deck Idler
  Position Number SKU Product Title Price
1.0 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
1 024-0001-00 024-0001-00 - 1/4-28 Threaded Grease Fitting
$2.99
3 048-6004-00 048-6004-00 - Maverick/Compact Outlaw Topllink Bushing Sleeve (See Models Used On For Details)
$11.29
4 048-6005-00 048-6005-00 - Toplink Bushing (See Models Used On For Details)
$32.09
5.0 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
5 037-6024-00 037-6024-00 - All MZ Models & 2016-2022 Stand-On (36" Deck) Spindle Bearing
$34.35
6 037-6025-00 037-6025-00 - Spindle Shaft - All MZ/MZ Magnum & 2016-2022 Stand-On (36" Deck)
$60.98
7 037-6027-00 037-6027-00 - Spindle Housing For 037-2000-00 Spindle Assembly (See Models Used On For Details)
$99.32
8 037-6028-00 037-6028-00 - Spacer for 037-2000-00 Spindle
$14.19
9.0 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
9 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
11 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
11 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
12 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
13 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
