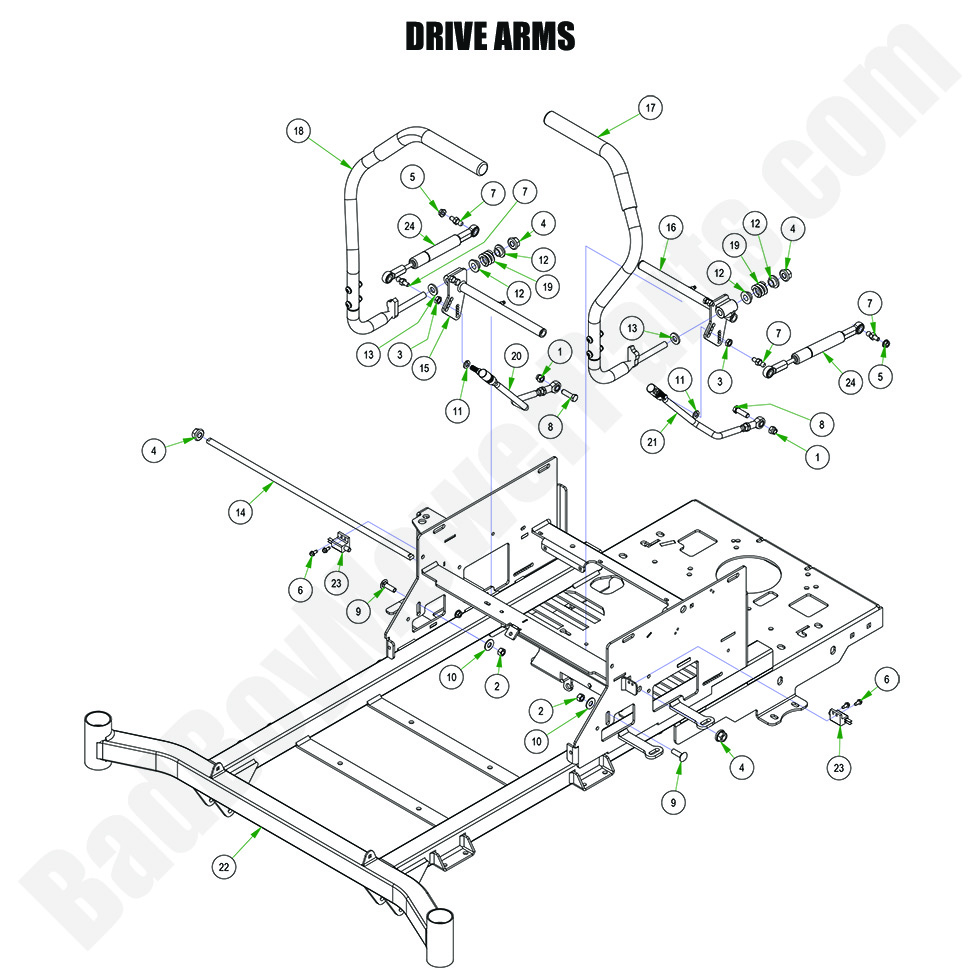

2024 ZT Avenger - Drive Arms

2024 ZT Avenger - Drive Arms

The 2024 ZT Avenger Drive Arms are essential components that help your mower maintain its forward motion and provide stability. At BadBoyMowerParts.com, we carry a wide range of drive arms and other related components to ensure your mower operates smoothly. With our Bad Boy Mower Part diagrams, you can easily locate and order the exact parts you need for your 2024 ZT Avenger. Whether you’re searching for Bad Boy Mower Parts for repairs or Bad Boy Lawn Mower Parts for upgrades, we provide a comprehensive selection. You can conveniently shop for Bad Boy Parts Online and enjoy Free Shipping On Orders Over $100, allowing you to keep your mower in top condition without the additional cost of shipping.

Bad Boy Mower Parts Lookup

2024 ZT Avenger - Drive Arms
  Position Number SKU Product Title Price
1 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99
7 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
8 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
9 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
10 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
11 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
12 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
13 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
14 028-0049-00 028-0049-00 - 2021 Maverick Steering Actuator Rod
$21.39
15 031-0053-21 031-0053-21 - 2021-2022 Maverick Drive Arm Actuator RH Assembly
$42.79
16 031-0054-21 031-0054-21 - 2021-2022 Maverick Drive Arm Actuator LH Assembly
$42.79
17 031-8850-70 031-8850-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$93.64
18 031-8851-70 031-8851-70 - Right Steering Arm Black Elbow (See Models Used On For Details)
$93.64
19 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
20 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
21 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
23 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
24 087-0004-00 087-0004-00 - ZT Avenger Steering Dampener
$70.97
