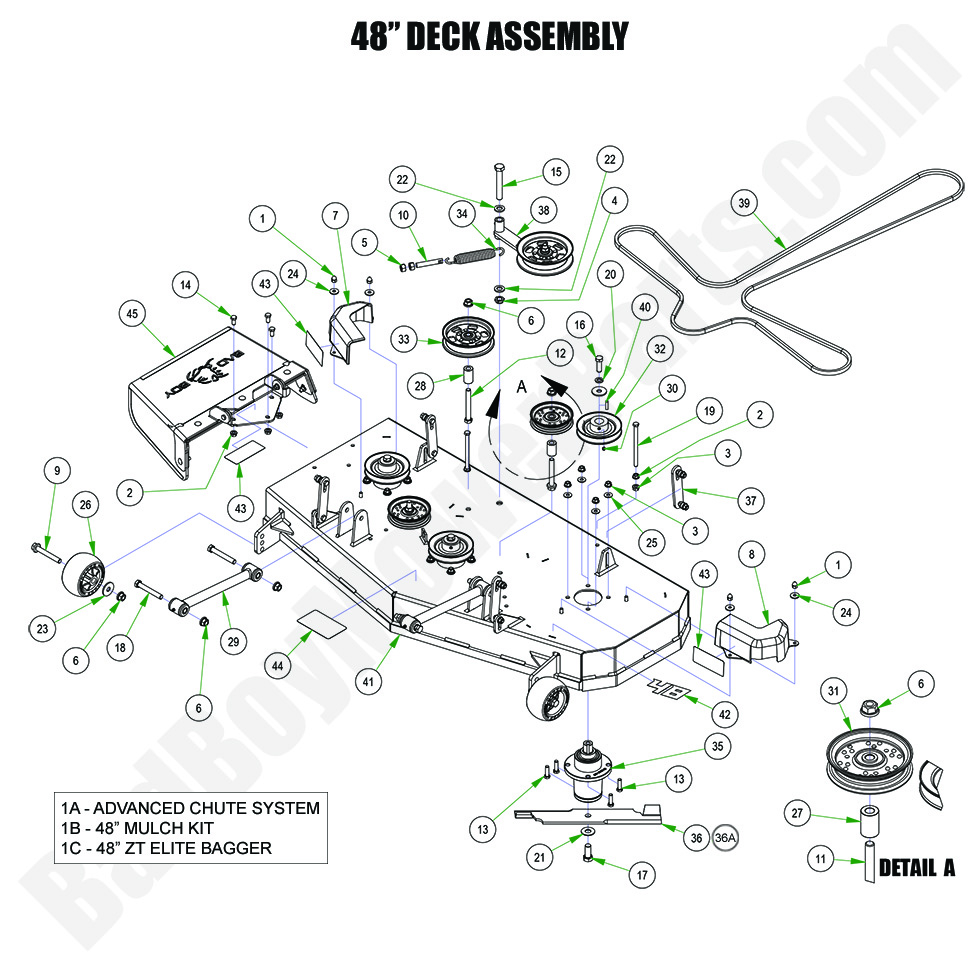

2024 ZT Elite - 48" Deck Assembly

2024 ZT Elite - 48" Deck Assembly

The 2024 ZT Elite 48" Deck Assembly is essential for efficient mowing, and ensuring it stays in optimal condition is crucial for a clean, precise cut. At BadBoyMowerParts.com, we offer replacement parts and upgrades for the 2024 ZT Elite 48" Deck Assembly, including spindles, pulleys, and belts. With our detailed Bad Boy Mower Part diagrams, locating the right parts is easy and straightforward. Whether you’re maintaining your mower with Bad Boy Mower Parts or upgrading to Bad Boy Lawn Mower Parts for improved performance, we have what you need. Shopping for Bad Boy Parts Online means you can quickly find and order your parts, and with Free Shipping On Orders Over $100, you’ll save on delivery costs while keeping your 2024 ZT Elite 48" Deck Assembly in peak working condition for a long-lasting and reliable mowing experience.

Bad Boy Mower Parts Lookup

2024 ZT Elite - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1C 092-4001-23 092-4001-23 Top Discharge Bagger (2017-2025 48" Maverick & Maverick HD)
$2399.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
5 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
8 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
9 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
10 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
11 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
12 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
13 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
14 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
15 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
16 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
17 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
18 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
19 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
22 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
25 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
26 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
27 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
28 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
29 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
30 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
31 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
32 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
33 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
34 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
35 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
36A 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
36 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
37 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
38 039-6945-17 039-6945-17 - Deck Idler Assembly
$70.97
39 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
40 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
41 060-2312-00 060-2312-00 - 2023 48" ZT/Maverick/HD Deck--Painted
$999.99
42 091-0503-00 091-0503-00 - MY24 48" Deck Decal
$10.99
43 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
44 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
45 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
