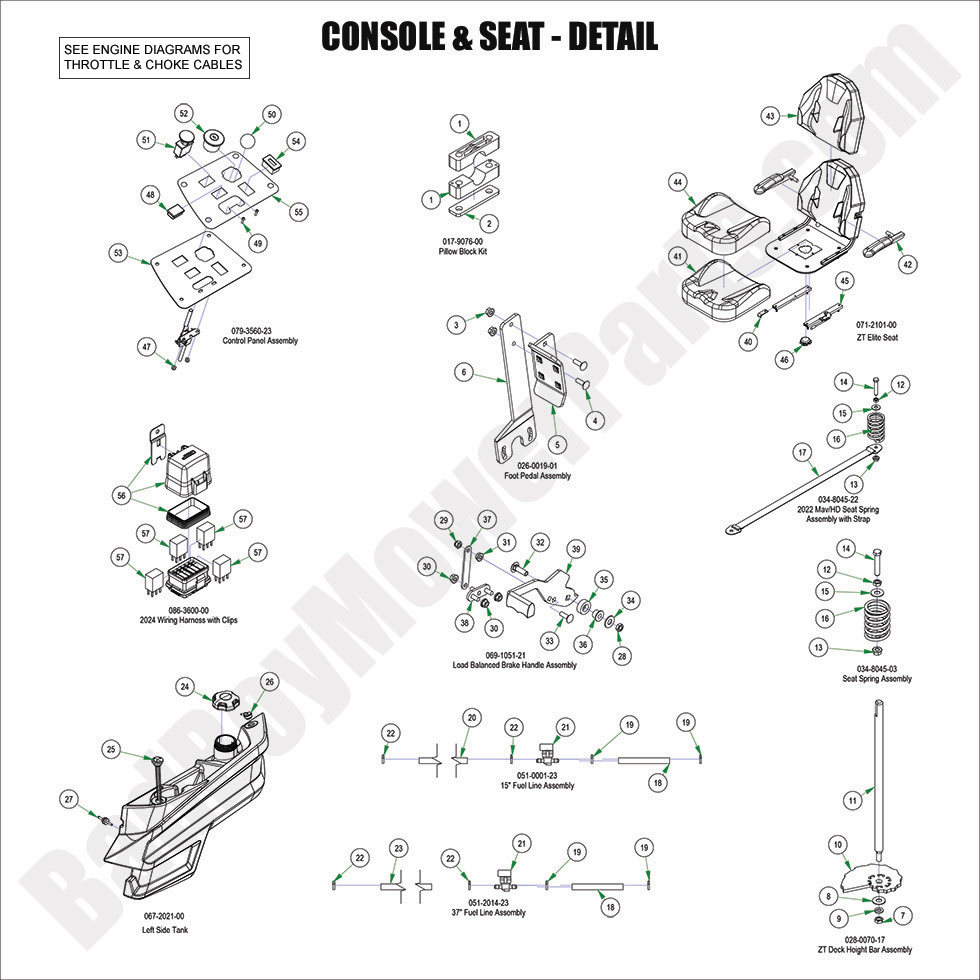

2024 ZT Elite - Console & Seat - Detail

2024 ZT Elite - Console & Seat - Detail

The 2024 ZT Elite Console & Seat - Detail provides comfort and control for your mowing experience. If you need replacement parts or wish to upgrade, BadBoyMowerParts.com offers a variety of options to fit your needs. Our Bad Boy Mower Part diagrams help you identify the correct parts for your console and seat, ensuring that you can make the right choices for your mower. Whether you're looking for Bad Boy Mower Parts for comfort or Bad Boy Lawn Mower Parts to maintain safety and performance, we have a full selection. Shopping for Bad Boy Parts Online is simple and efficient, and with Free Shipping On Orders Over $100, you can replace or upgrade your 2024 ZT Elite Console & Seat - Detail with no additional shipping fees.

Bad Boy Mower Parts Lookup

2024 ZT Elite - Console & Seat - Detail
  Position Number SKU Product Title Price
1.0 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
2 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
3.0 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
6 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
7 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
8.0 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
8 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
9 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
10 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
11 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
12.0 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
12.0 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
12 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
13 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
14 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
16 034-8045-00 034-8045-00 - Seat Spring
$20.49
17 064-8083-00 064-8083-00 Seat Strap w/Buckles
$24.60
18 051-8067-00 051-8067-00 - 1/4 Fuel Line Hose (Priced by the Foot)
$6.41
19 072-8069-00 072-8069-00 - 1/4 Fuel Line Clamp
$2.99
21 067-6057-00 067-6057-00 2 Way Fuel Shut-Off Valve
$16.04
23 051-2014-01 051-2014-01 - 37" 1/4 Fuel Line (No Clamp)
$19.25
24.0 067-2021-00 067-2021-00 - 2021-2024 Maverick Left Side Tank
$349.99
24 066-8083-00 066-8083-00 - 3.5" Tethered Fuel Cap
$23.53
25 067-4090-00 067-4090-00 - Fuel Gauge (See Models Used On For Details)
$46.00
26 067-6070-00 067-6070-00 - Rollover Valve and Grommet New
$24.60
28 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
29.0 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
29 013-8042-00 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
$2.99
31 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
32 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
35 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
36 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
37 039-0170-00 039-0170-00 - Brake Cable Extension Plate
$10.99
38 039-0171-00 039-0171-00 - Brake Load Balancer Weldment
$10.99
39 069-1051-00 069-1051-00 - Load Balanced Brake Handle With Grip
$64.19
40.0 071-2101-00 071-2101-00 - 2021-2024 ZT Elite Seat
$625.99
40 039-2157-00 039-2157-00 - Black Seat stop
$14.19
42 071-2054-00 071-2054-00 - Arm Rest Kit (See Models Used On For Details) (obsolete)
use part #071-2119-00
$139.99
43 071-2101-02 071-2101-02 - Back Cover for 071-2101-00
$96.29
44 071-2102-02 071-2102-02 - Seat Cover (See Models Used On For Details)
$131.37
45 071-5015-00 071-5015-00 - Seat Rails
$93.69
46 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
47 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
48 018-1040-00 018-1040-00 - Light Plug
$2.99
49 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
51 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
52 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
53 079-3461-00 079-3461-00 - Control Panel--Orange
$23.53
54 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
55 091-4072-00 091-4072-00 - Control Panel Decal
$9.89
56.0 086-3600-00 086-3600-00 - Wiring Harness With Clips (See Models Used On For Details)
$299.99
56 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
57 086-1202-19 086-1202-19 - Relay Terminal
$24.97
