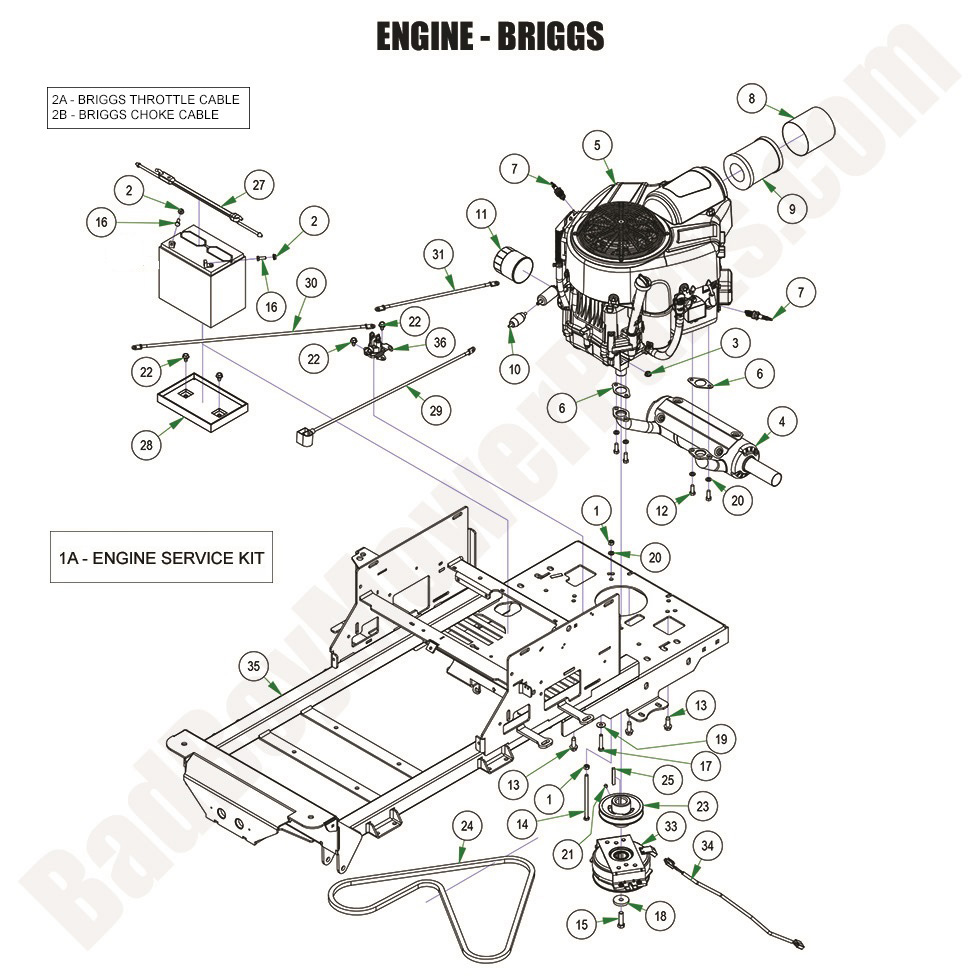

2024 ZT Elite - Engine - Briggs CXI

2024 ZT Elite - Engine - Briggs CXI

The 2024 ZT Elite Engine - Briggs CXI provides reliable power for your mower, and keeping it well-maintained ensures peak performance. If you need Bad Boy Mower Parts for your Briggs engine, BadBoyMowerParts.com offers a variety of replacement components. Our Bad Boy Mower Part diagrams make it easy to find parts for the 2024 ZT Elite Engine - Briggs CXI, such as air filters, spark plugs, and oil filters. Whether you're performing routine maintenance or tackling more extensive repairs, we have the Bad Boy Lawn Mower Parts you need. Shopping for Bad Boy Parts Online is simple and efficient, and with Free Shipping On Orders Over $100, you can get all the necessary parts for your 2024 ZT Elite Engine - Briggs CXI delivered quickly to your door without the extra shipping costs.

Bad Boy Mower Parts Lookup

2024 ZT Elite - Engine - Briggs CXI
  Position Number SKU Product Title Price
1A 063-2000-04 063-2000-04 - Briggs 30hp & CXI Engine Service Kit
$92.93
1 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
3 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
4 015-0057-00 015-0057-00 - 2017-2024 Exhaust 810 Vanguard
$169.99

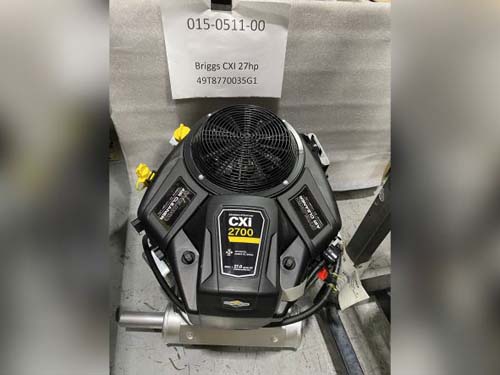

5 015-0511-00 015-0511-00 - Vangaurd 27hp CXI with Out Oil Filter
$3099.99
6 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
7 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
8 063-1000-00 063-1000-00 - Pre-Cleaner for 063-3003-00
$12.83
9 063-1005-00 063-1005-00 - Air Filter for Vanguard CXI Engine (obsolete)
use part #063-3003-00
$44.93
10 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
11 063-8018-00 063-8018-00 - Oil Filter
$21.39
12 018-0017-00 018-0017-00 - Vanguard Exhaust Torx Bolt
$5.82
13 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
14 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
15 018-5450-21 018-5450-21 - 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch
$2.99
16 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
17 018-8059-00 018-8059-00 - 5/16-18x1-3/4 Hex Bolt
$2.99
18 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
19 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
20 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
21 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
22 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
23 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
24 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
25 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
27 043-8930-00 043-8930-00 2023 - Rubber Battery Hold Down Strap
$21.39
28 043-8931-00 043-8931-00 - 2023 Battery Tray Only
$20.32
29 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
30 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
31 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
33 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
34 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
35 070-2402-00 070-2402-00 - 2024 ZT Elite Frame--Orange
$799.99
36 108-0001-00 108-0001-00 - Solenoid
$29.41
