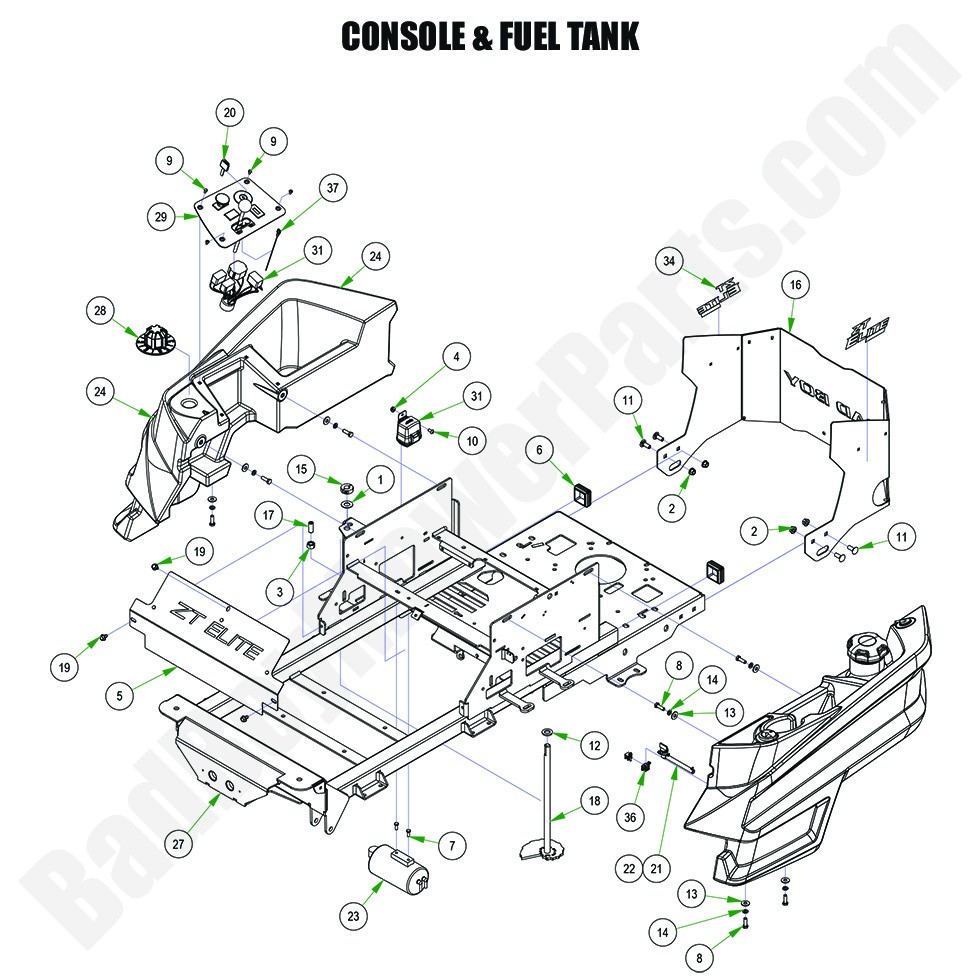

2024 ZT Elite - Console & Fuel Tank

2024 ZT Elite - Console & Fuel Tank

The 2024 ZT Elite Console & Fuel Tank are key components of your mower's performance. If you need a replacement or are upgrading, BadBoyMowerParts.com has the parts you need. We offer high-quality fuel tanks and consoles that are compatible with your 2024 ZT Elite. Our Bad Boy Mower Part diagrams make it easy to find the correct parts and ensure you’re getting the right fit for your mower. Whether you're in need of Bad Boy Mower Parts for fuel system maintenance or Bad Boy Lawn Mower Parts for other upgrades, we have the inventory you need. By shopping for Bad Boy Parts Online, you can conveniently order parts from home, and with Free Shipping On Orders Over $100, you can save on delivery costs while keeping your 2024 ZT Elite Console & Fuel Tank in excellent condition.

Bad Boy Mower Parts Lookup

2024 ZT Elite - Console & Fuel Tank
  Position Number SKU Product Title Price
1 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
4 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99

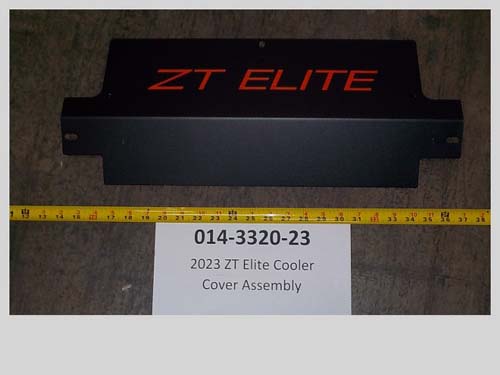

5 014-3320-23 014-3320-23 - 2023 ZT Elite Cooler Cover Assembly
$74.89
6 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
7 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
8 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
9 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
10 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
11 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
12 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
13 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
14 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
15 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
16 026-0225-00 026-0225-00 - 2022-2025 ZT Elite Rear Plate Assembly
$172.99
17 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
18 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
19 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
20 042-9000-00 042-9000-00 - Ignition Key
$4.06
23 067-0020-01 067-0020-01 - 2019-2025 ZT/Maverick EPA Cannister Assy, Also Fits 2019-2021 Compact Outlaw
$85.59
24 067-2020-00 067-2020-00 - 2021-2022 Maverick Right Side Tank
$248.99
27 070-2402-00 070-2402-00 - 2024 ZT Elite Frame--Orange
$799.99
28 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
31 086-3600-00 086-3600-00 - Wiring Harness With Clips (See Models Used On For Details)
$299.99
34 091-0511-00 091-0511-00 - MY24 ZT Elite Back Plate Decal
$2.99
37 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
