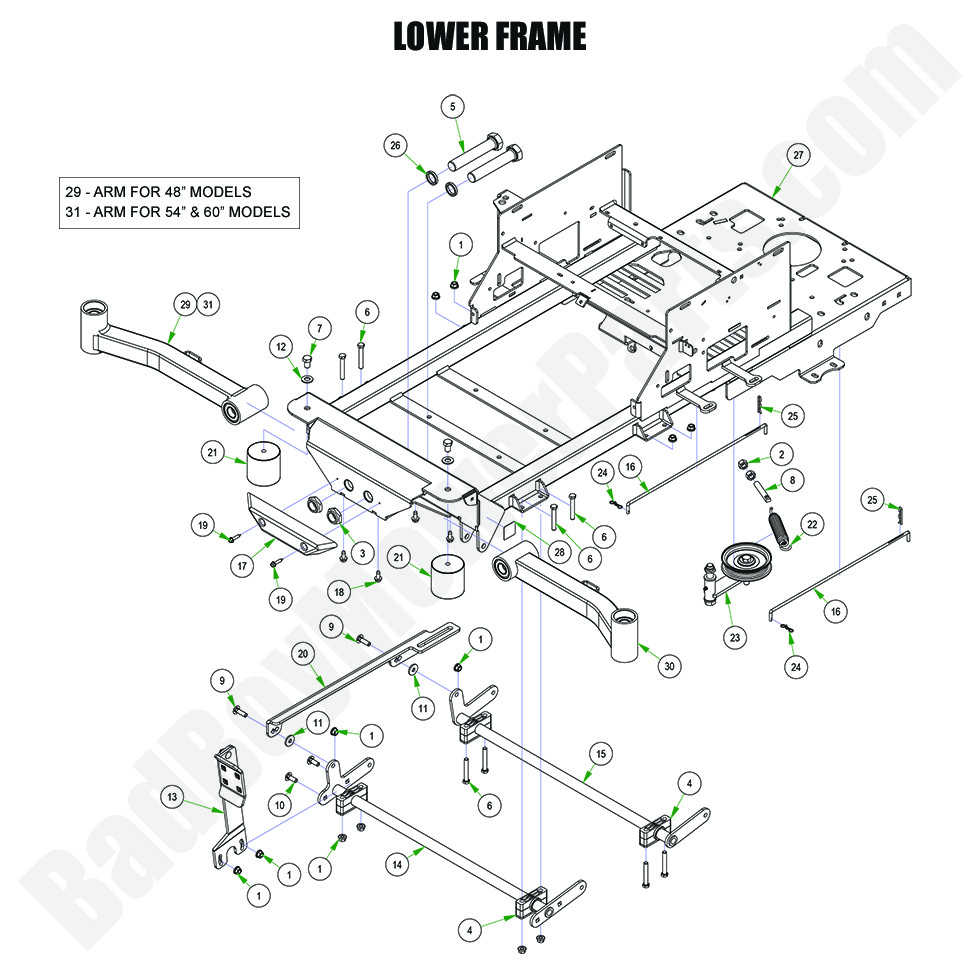

2024 ZT Elite - Lower Frame

2024 ZT Elite - Lower Frame

The 2024 ZT Elite Lower Frame is a crucial component that supports the mower’s structure and ensures stability during operation. If your frame is damaged or worn, BadBoyMowerParts.com has the high-quality replacement parts you need. We offer a selection of Bad Boy Mower Parts designed for the 2024 ZT Elite Lower Frame, including reinforcements, brackets, and more. Our detailed Bad Boy Mower Part diagrams make it easy to find the exact parts you need for your mower. Whether you're performing routine maintenance or need Bad Boy Lawn Mower Parts for repairs, we provide everything necessary to keep your mower in peak condition. Shopping for Bad Boy Parts Online makes it simple and convenient, and with Free Shipping On Orders Over $100, you can have the 2024 ZT Elite Lower Frame parts delivered to your door with no additional shipping costs, making repairs or upgrades affordable and hassle-free.

Bad Boy Mower Parts Lookup

2024 ZT Elite - Lower Frame
  Position Number SKU Product Title Price
1 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
2 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
3 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
4 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
5 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
6 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
7 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
8 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
9 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
10 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
11 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
12 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
13 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
14 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
15 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
16 028-0070-00 028-0070-00 - Neutral Rod
$12.48
17 029-7040-00 029-7040-00 - EZT Front Bumper (See Models Used On For Detail)
$31.17
18 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
19 030-7040-00 030-7040-00 - 1/4 x 1 Hex Head Tek Screw
$2.99
20 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
21 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
22 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
23 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
24 044-2004-00 044-2004-00 - Bow Pin
$2.99
25 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
26 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
27 070-2402-00 070-2402-00 - 2024 ZT Elite Frame--Orange
$799.99
28 091-8002-00 091-8002-00 - Independently Articulating Front Susp. Arms Patent Decal
$5.49
29 250-1751-21 250-1751-21 2021-2024 ZT Suspension Arm Assy. Short Right
$109.99
30 250-1801-21 250-1801-21 - 2021-2022 ZT Suspension Arm Assembly Left
$106.99
31 250-1851-21 250-1851-21 - 2021-2022 ZT Suspension Arm Assembly Long Right (54 & 60 Decks)
$106.99
