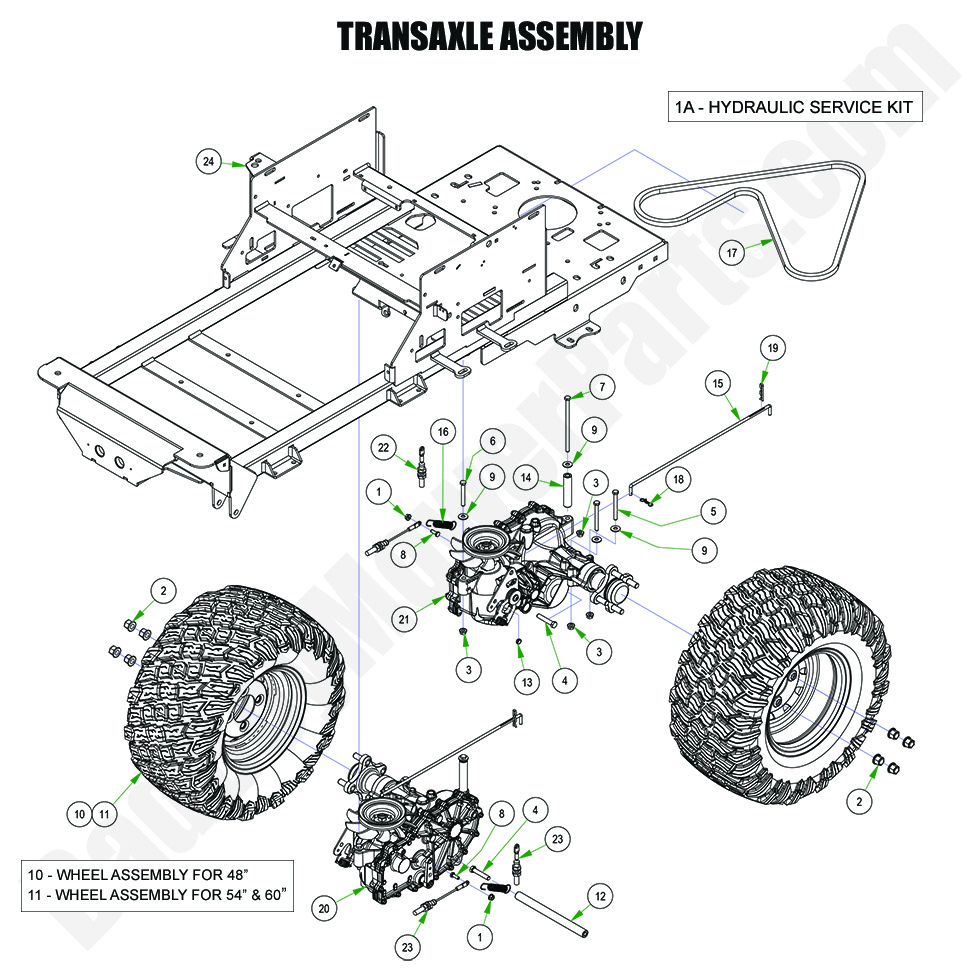

2024 ZT Elite - Transaxle Assembly

2024 ZT Elite - Transaxle Assembly

The 2024 ZT Elite Transaxle Assembly is a key component that helps transfer power from the engine to the wheels, ensuring smooth operation and performance. If you need to replace or repair your transaxle assembly, BadBoyMowerParts.com offers high-quality parts specifically for your 2024 ZT Elite. Our Bad Boy Mower Part diagrams allow you to quickly find the necessary parts, including gears, seals, and other related components. Whether you need Bad Boy Mower Parts for regular maintenance or Bad Boy Lawn Mower Parts for more extensive repairs, we carry a wide selection to meet your needs. Shopping for Bad Boy Parts Online makes it easy to order parts from home, and with Free Shipping On Orders Over $100, you can get the 2024 ZT Elite Transaxle Assembly parts delivered to your door without any extra shipping costs.

Bad Boy Mower Parts Lookup

2024 ZT Elite - Transaxle Assembly
  Position Number SKU Product Title Price
1A 085-4051-01 085-4051-01 - Hydro Service Kit for 2021 & Newer ZT Avenger, ZT Elite & Maverick Models (Without Expansion Tanks)
$125.99
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
5 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
6 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
7 018-5355-00 018-5355-00 - 5/16-18 X 6 Hex Bolt Zinc
$2.99
8 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
9 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
10 022-2028-00 022-2028-00 - 22-10x10 Reaper Wheel/Tire Assembly
$229.99
11 022-2215-00 022-2215-00 - 22x11-10 Reaper Rear Black Assy
$229.99
12 025-0017-00 025-0017-00 - Transaxle Spacer (See Models Used On For Detail)
$14.04
13 025-0036-00 025-0036-00 - Drive Arm Transaxle Spacer
$5.49
14 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
15 028-0070-00 028-0070-00 - Neutral Rod
$12.48
16 034-1026-00 034-1026-00 - Brake Return Spring (See Models Used On For Details)
$14.19
17 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
18 044-2004-00 044-2004-00 - Bow Pin
$2.99
19 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
20 050-2095-02 050-2095-02 - 2021-2022 RH 3100 Transaxle
$729.99
21 050-2096-02 050-2096-02 - 2021-2022 LH 3100 Transaxle
$729.99
22 064-3050-21 064-3050-21 - 2021-2025 Load Balanced Brake Cable 1
$56.77
23 064-3051-21 064-3051-21 - 2021-2025 Load Balanced Brake Cable 2
$56.77
24 070-2402-00 070-2402-00 - 2024 ZT Elite Frame--Orange
$799.99
