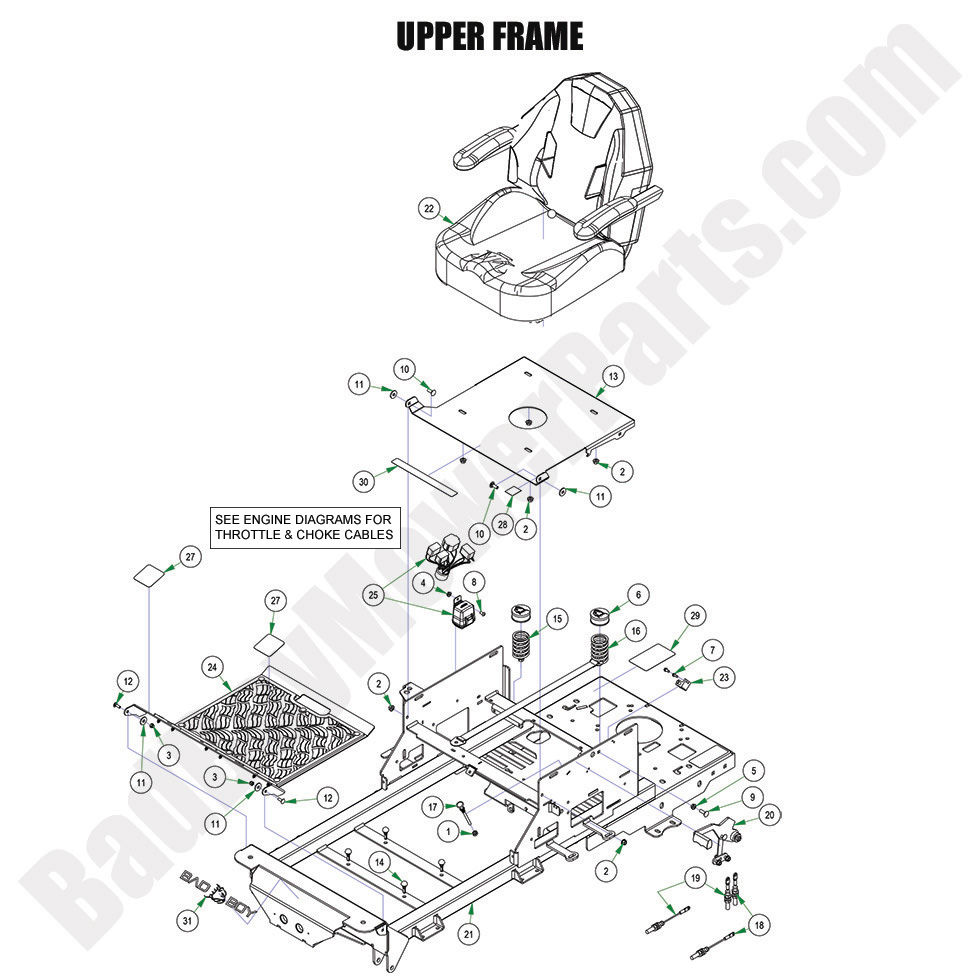

2024 ZT Elite - Upper Frame

2024 ZT Elite - Upper Frame

The 2024 ZT Elite Upper Frame provides essential structural support for your mower, contributing to its overall durability and performance. If you need to replace or upgrade your upper frame, BadBoyMowerParts.com offers a variety of parts designed specifically for the 2024 ZT Elite. Our Bad Boy Mower Part diagrams help you easily locate the correct upper frame components, ensuring that your mower is as strong and durable as it was when it was new. Whether you need Bad Boy Mower Parts for general maintenance or Bad Boy Lawn Mower Parts for repairs, we provide a wide selection of quality options. By shopping for Bad Boy Parts Online, you can conveniently find the parts you need, and with Free Shipping On Orders Over $100, you can have your 2024 ZT Elite Upper Frame delivered to your door without extra shipping charges.

Bad Boy Mower Parts Lookup

2024 ZT Elite - Upper Frame
  Position Number SKU Product Title Price
1 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
2 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
3 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99

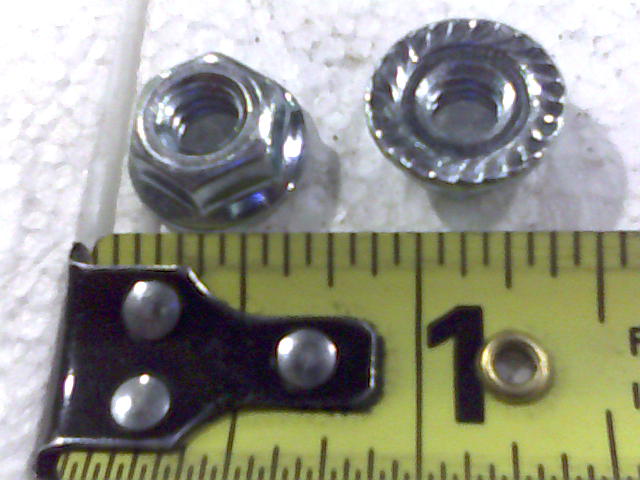

4 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 014-8047-00 014-8047-00 - Rubber Cap Cover
$2.99
7 018-1080-00 018-1080-00 - 12-24 x 1/2 HWH Bolt - Safety Switch
$2.99

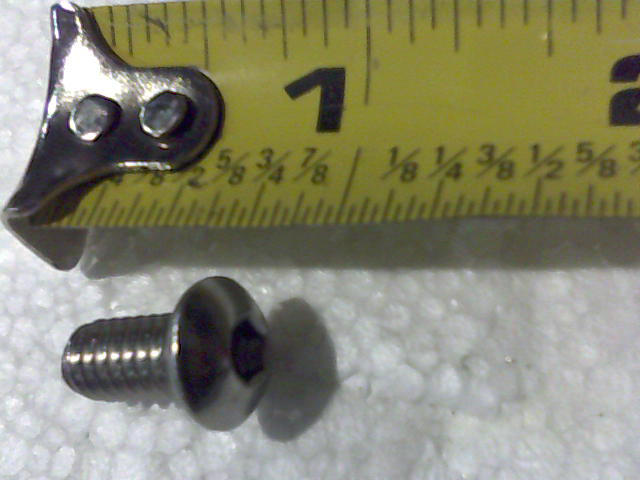

8 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
9 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
10 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
11 019-6042-00 019-6042-00 -.360 ID Plastic Washer
$2.99
12 019-8040-00 019-8040-00 - 1/4 x 3/4 Carriage Bolt
$2.99

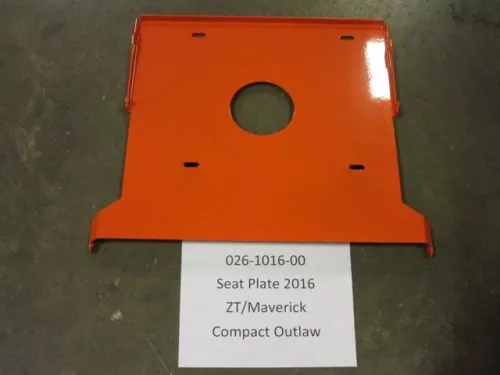

13 026-1016-00 026-1016-00 - Seat Plate
$102.11
14 029-4011-00 029-4011-00 2023 Floorboard Rubber Bumpers
$2.99
15 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
16 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09

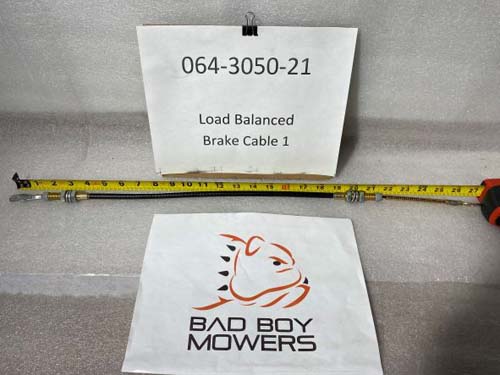

18 064-3050-21 064-3050-21 - 2021-2025 Load Balanced Brake Cable 1
$56.77

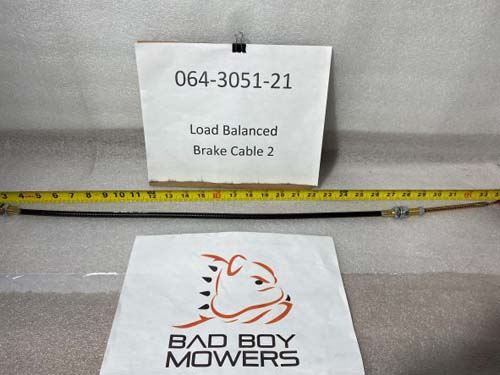

19 064-3051-21 064-3051-21 - 2021-2025 Load Balanced Brake Cable 2
$56.77

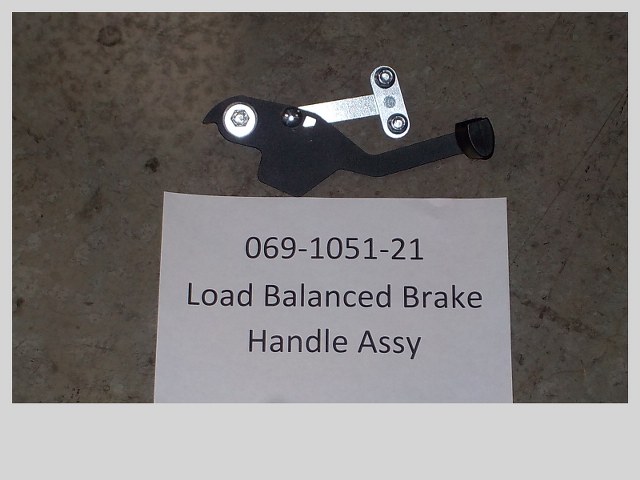

20 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
21 070-2402-00 070-2402-00 - 2024 ZT Elite Frame--Orange
$799.99
22 071-2101-00 071-2101-00 - 2021-2024 ZT Elite Seat
$625.99
23 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
24 079-3470-21 079-3470-21 - 2021 Maverick Floorboard Assembly
$159.99
25 086-3600-00 086-3600-00 - Wiring Harness With Clips (See Models Used On For Details)
$299.99
27 091-0021-00 091-0021-00 - Steering Control Sticker
$11.76
28 091-0339-18 091-0339-18 - Brake Decal (See Models Used On For Details)
$11.76

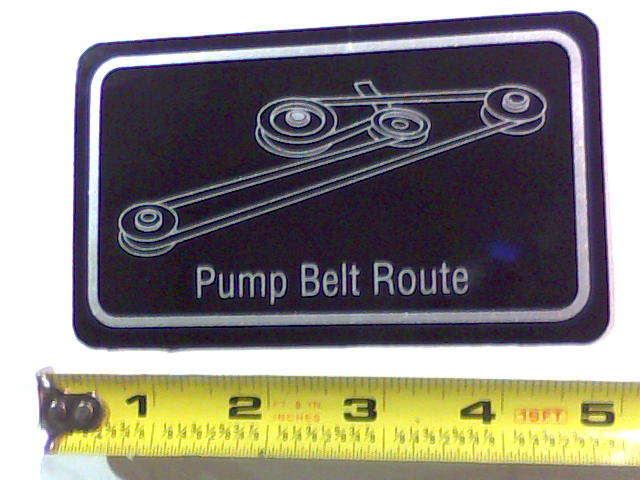

29 091-3017-00 091-3017-00 - Pump Belt Route Decal
$4.92
30 091-3150-00 091-3150-00 - Outlaw Warning Decal (See Models Used On For Details)
$10.91
31 091-4063-00 091-4063-00 - Flying Bulldog Front Bumper Decal
$12.83
