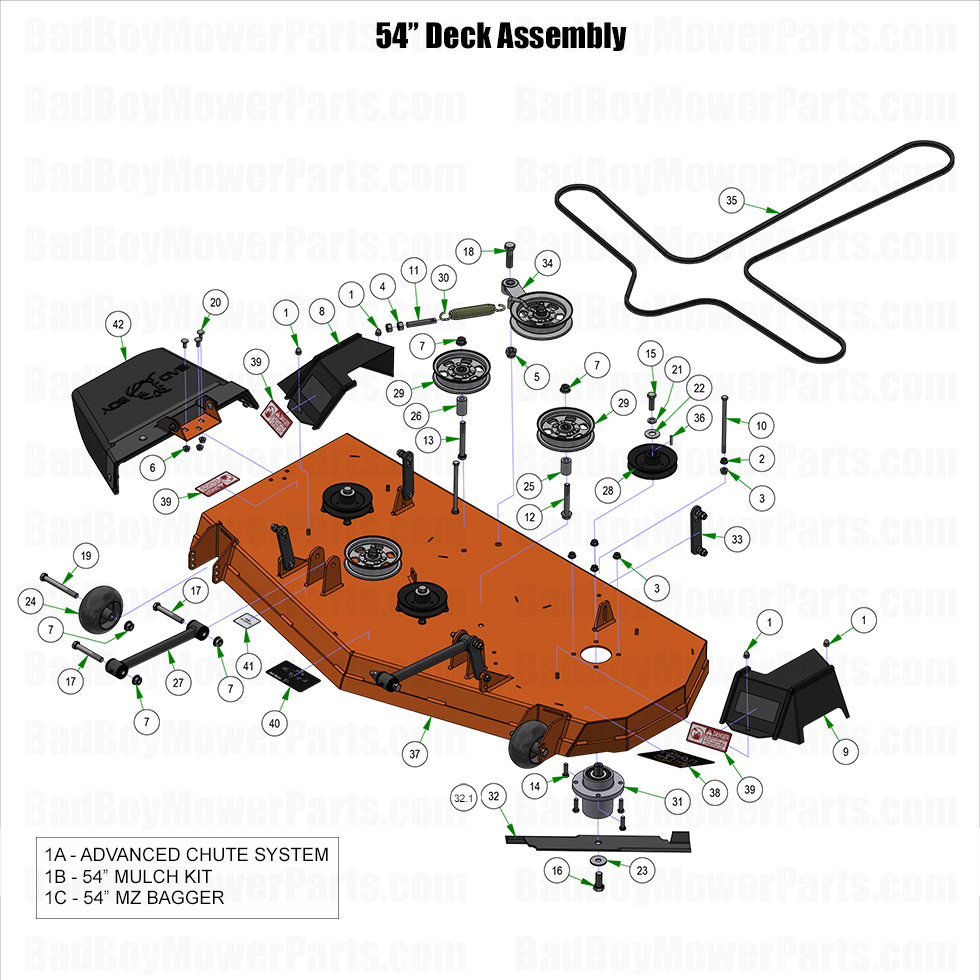

2025 MZ Magnum - 54" Deck Assembly

2025 MZ Magnum - 54" Deck Assembly

If your 2025 MZ Magnum is equipped with a 54" Deck Assembly, proper maintenance is key to optimal performance. At BadBoyMowerParts.com, we stock premium Bad Boy Mower parts to ensure your cutting deck operates efficiently. Whether you need new blades, spindles, or deck belts, our Bad Boy Mower part diagrams for 2025 MZ Magnum help you find the exact components needed for a seamless repair. Over time, normal wear can affect your deck’s ability to deliver a clean and even cut. Our fast-moving inventory ensures you receive replacement parts quickly, reducing downtime. Plus, with Free Shipping On Orders Over $100, keeping your mower in peak condition is easier than ever. Don’t let a worn deck slow you down—order high-quality 54" Deck Assembly parts today and maintain the cutting power of your MZ Magnum for years to come.

Bad Boy Mower Parts Lookup

2025 MZ Magnum - 54" Deck Assembly
  Position Number SKU Product Title Price
1B 210-0154-50 210-0154-50 - 2017-2025 54" MZ & 54" Avenger Mulch Kit w/Blades
$318.45
1C 088-1818-00 088-1818-00 - 54" MZ Magnum & 54" Avenger Bagger (See Models Used On For Details)
$2399.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-5020-00 014-5020-00 - 2021-2022 Maverick 54"/60" RH Pulley Cover
$28.39
9 014-5021-00 014-5021-00 - 2021-2022 Maverick 54"/60" LH Pulley Cover
$28.39
10 018-0073-00 018-0073-00 - 3/8-16 x 6.5 Hex Head GR.5
$3.29
11 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
12 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
13 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
14 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
15 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
18 018-6058-00 018-6058-00 - 5/8-11 X 2-1/4 Hex Bolts
$2.99
19 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
20 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
21 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
22 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
23 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
24 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
25 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
26 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
27 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
28 033-4890-00 033-4890-00 - Deck Pulley 2013-2025 54" MZ Magnum, 2020-2025 54" ZT Avenger
$31.17
29 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
30 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
31 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
32.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
32 038-0005-00 038-0005-00 - 54" MZ High Lift Fusion Blade
$22.99
33 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
35 041-1560-00 041-1560-00 - Deck Belt (See Models Used On For Details)
$88.80
36 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
39 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
40 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
41 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
42 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
