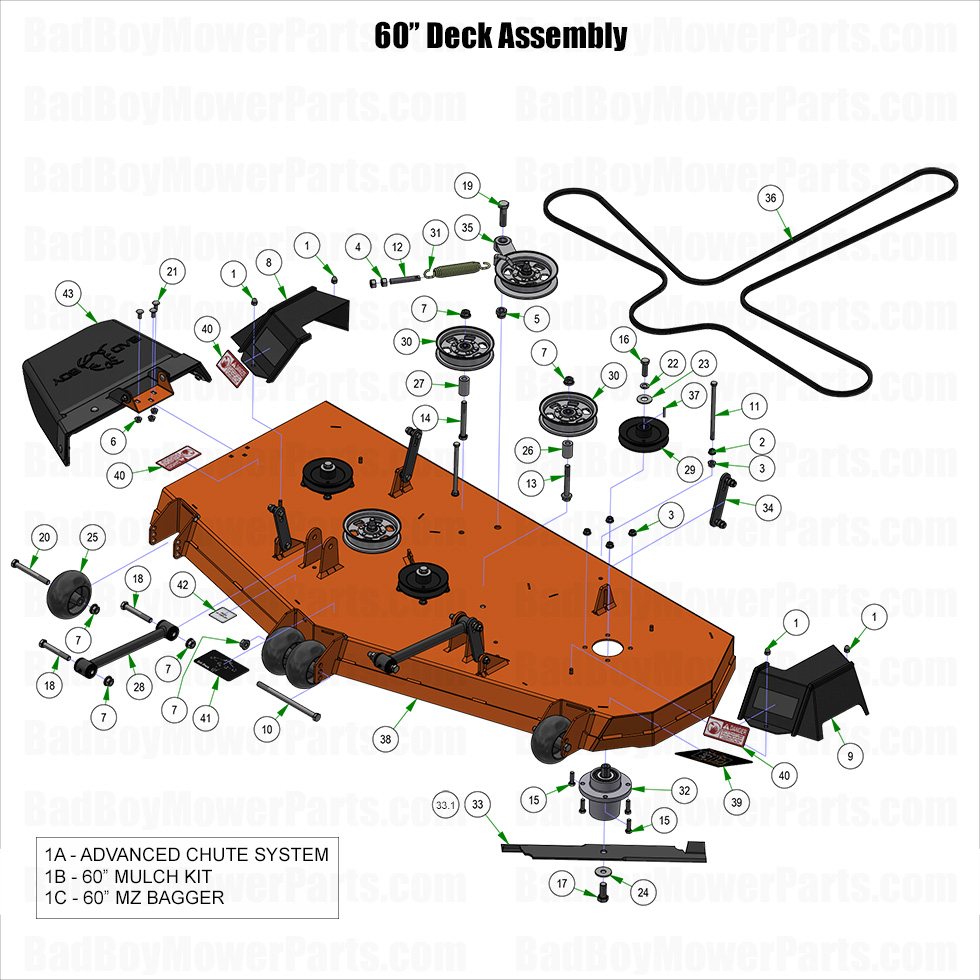

2025 MZ Magnum - 60" Deck Assembly

2025 MZ Magnum - 60" Deck Assembly

The 60" Deck Assembly on your 2025 MZ Magnum allows you to cover large areas quickly with professional-grade precision. At BadBoyMowerParts.com, we supply durable Bad Boy Mower parts to keep your deck running at peak efficiency. Whether you need replacement blades, spindles, idler arms, or belts, our Bad Boy Mower part diagrams for 2025 MZ Magnum make finding the correct parts quick and hassle-free. A well-maintained deck reduces strain on your mower, ensuring a longer lifespan and better performance. We stock fast-moving parts so you can make repairs immediately and get back to work. Plus, take advantage of Free Shipping On Orders Over $100, ensuring you get the best quality parts without extra costs. Don’t settle for subpar cutting—shop for 60" Deck Assembly parts today and keep your MZ Magnum mowing with precision and power.

Bad Boy Mower Parts Lookup

2025 MZ Magnum - 60" Deck Assembly
  Position Number SKU Product Title Price
1A 088-4842-00 088-4842-00 - Advanced Chute System for all MZ, MZ Magnum & ZT Avenger decks
$249.00
1B 210-0160-50 210-0160-50 60" Mulch Kit w/blades (See Models Used On For Details)
$318.45
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-5020-00 014-5020-00 - 2021-2022 Maverick 54"/60" RH Pulley Cover
$28.39
9 014-5021-00 014-5021-00 - 2021-2022 Maverick 54"/60" LH Pulley Cover
$28.39
10 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
11 018-0073-00 018-0073-00 - 3/8-16 x 6.5 Hex Head GR.5
$3.29
12 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
13 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
14 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
15 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
16 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
17 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
18 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
19 018-6058-00 018-6058-00 - 5/8-11 X 2-1/4 Hex Bolts
$2.99
20 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
21 018-8062-00 018-8062-00 - 5/16-18 X 3/4 Carriage Bolts
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
24 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
25 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
26 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
27 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
28 028-0004-22 028-0004-22 - Hybrid Turnbuckle/Deck Locator
$46.84
29 033-4301-00 033-4301-00 - Spindle Pulley
$42.58
30 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
31 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
32 037-2000-00 037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2022 36" Stand-On
$204.33
33.1 038-6003-00 038-6003-00 - 60" Gator Mulching Blade & 2023-2025 Revolt SD 42"
$22.99
33 038-0013-00 038-0013-00 - 60" MZ High Light Fusion Blade
$22.99
34 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
36 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
37 042-0010-00 042-0010-00 - 3/16 X 1 Square Machine Key
$4.81
39 091-0534-00 091-0534-00 - 60" Grip Deck Decal
$10.99
40 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
41 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
42 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
43 210-6015-98 210-6015-98 - Discharge Chute Assembly (See Models Used On For Detail)
$145.95
