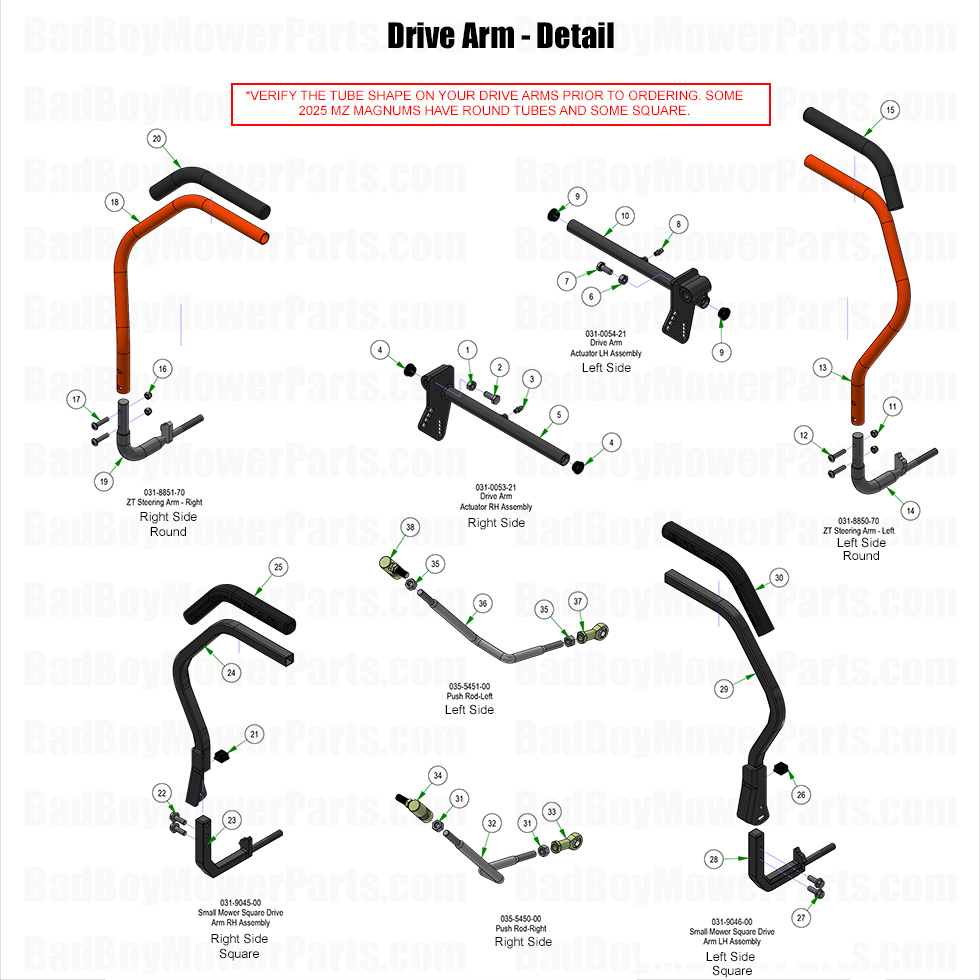

2025 MZ Magnum - Drive Arm - Detail

2025 MZ Magnum - Drive Arm - Detail

The Drive Arm - Detail components play a critical role in the smooth steering and maneuverability of your 2025 MZ Magnum. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower parts to ensure precise handling and long-lasting performance. Our Bad Boy Mower part diagrams for 2025 MZ Magnum simplify finding the correct bushings, bolts, and linkages for seamless repairs. A worn-out drive arm can lead to jerky movements and reduced steering efficiency, making timely maintenance essential. We carry fast-moving parts to help you replace faulty components quickly, minimizing downtime. Regular inspections and replacements help extend the life of your mower and improve overall performance. Plus, with Free Shipping On Orders Over $100, maintaining your MZ Magnum’s steering system is both convenient and cost-effective. Don't let steering issues slow you down—order Drive Arm - Detail parts today and keep your mower operating with precision and ease.

Bad Boy Mower Parts Lookup

2025 MZ Magnum - Drive Arm - Detail
  Position Number SKU Product Title Price
1A 031-0053-21 031-0053-21 - 2021-2022 Maverick Drive Arm Actuator RH Assembly
$42.79
1 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
2 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
3 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
4 031-0032-00 031-0032-00 - Drive Arm Bushing (Plastic Flange)
$7.28
5 031-0053-00 031-0053-00 - 2021 Maverick Drive Actuator RH Weldment No Longer Available
Obsolete.
6A 031-0054-21 031-0054-21 - 2021-2022 Maverick Drive Arm Actuator LH Assembly
$42.79
10 031-0054-00 031-0054-00 - 2021 Maverick Drive Actuator LH Weldment No Longer Available
Obsolete.
11A 031-8850-70 031-8850-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$93.64
11 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
12 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
13 031-8850-02 031-8850-02 - Steering Arm Left - Tubing (See Models Used On For Details)
$85.12
14 031-9020-70 031-9020-70 - Left Steering Arm Black Elbow (See Models Used On For Details)
$85.17
15 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
16A 031-8851-70 031-8851-70 - Right Steering Arm Black Elbow (See Models Used On For Details)
$93.64
18 031-8851-02 031-8851-02 - Steering Arm Right - 5" Tubing (See Models Used On For Details)
$85.12
19 031-9025-70 031-9025-70 - Right Steering Arm Black Elbow
$85.17
21A 031-9045-00 031-9045-00 - Small Mower Square Drive Arm RH Assembly
$53.49
26A 031-9046-00 031-9046-00 - Small Mower Square Drive Arm LH Assembly
$42.79
31A 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
31 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
33 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
34 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
35A 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
