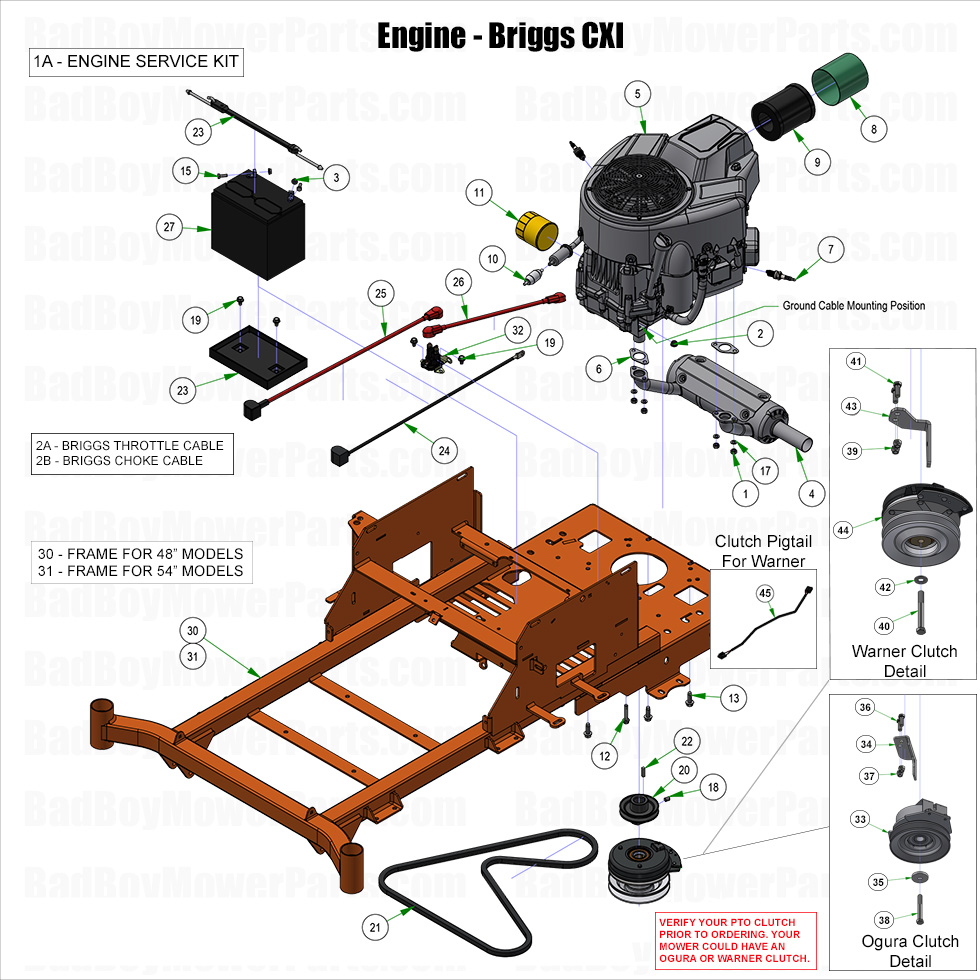

2025 MZ Magnum - Engine - Briggs CXI

2025 MZ Magnum - Engine - Briggs CXI

A powerful Briggs CXI engine ensures that your 2025 MZ Magnum delivers maximum performance with every mow. At BadBoyMowerParts.com, we stock premium Bad Boy Mower parts designed to keep your Briggs engine running smoothly. Whether you need spark plugs, air filters, fuel pumps, or gaskets, our Bad Boy Mower part diagrams for 2025 MZ Magnum help you find the exact replacement parts you need. Regular maintenance helps prevent fuel inefficiencies and mechanical failures, ensuring optimal operation and longevity. We carry fast-moving parts so you can perform quick repairs without unnecessary delays. Plus, take advantage of Free Shipping On Orders Over $100, making it easier than ever to keep your mower in peak condition. Don’t let engine troubles slow you down—order Briggs CXI engine parts today and maintain the powerful performance of your MZ Magnum.

Bad Boy Mower Parts Lookup

2025 MZ Magnum - Engine - Briggs CXI
  Position Number SKU Product Title Price
1A 063-2000-04 063-2000-04 - Briggs 30hp & CXI Engine Service Kit
$92.93
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
3 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
4 015-0057-00 015-0057-00 - 2017-2024 Exhaust 810 Vanguard
$169.99
5 015-0510-00 015-0510-00 - Vanguard 25hp CXI with out Oil Filter
$2599.99
6 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
7 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
8 063-1000-00 063-1000-00 - Pre-Cleaner for 063-3003-00
$12.83
9 063-1005-00 063-1005-00 - Air Filter for Vanguard CXI Engine (obsolete)
use part #063-3003-00
$44.93
10 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
11 063-8018-00 063-8018-00 - Oil Filter
$21.39
13 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
15 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
17 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
18 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
19 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
20 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
21 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
22 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
23 043-8930-98 043-8930-98 - 2023-2024 Battery Hold Down Assembly Strap
$26.74
24 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
25 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
26 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
30 070-2500-00 070-2500-00 - 2025 MZ 42-48 Frame--Orange
$899.99
31 070-2501-00 070-2501-00 - 2025 MZ-Avenger 54-60 Frame--Orange
$899.99
32 108-0001-00 108-0001-00 - Solenoid
$29.41
33 070-0055-00 070-0055-00 - PTO Clutch (See Models Used On For Detail)
$279.99
34 057-5900-00 057-5900-00 - Clutch Stop 2017-2024 MZ, 2020-2024 ZT Avenger
$31.17
35 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
36 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
37 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
38 018-0007-21 018-0007-21 - 7/16-20x3 Hex Bolt GR8 w/Patch
$3.29
40 018-5052-21 018-5052-21 - 7/16-20x3.5 Hex Bolt GR 8 W/ Patch No Longer Available
Obsolete.
42 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
43 039-0267-00 039-0267-00-ZT Clutch Bracket-Plated
$21.39
44 070-0057-00 070-0057-00 - 105 Ft Lb. Clutch- 1 Shaft
$139.99
45 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
