2025 MZ Magnum - Engine - Kohler KT724

2025 MZ Magnum - Engine - Kohler KT724

The Kohler KT724 engine is a powerful and efficient engine option for the 2025 MZ Magnum, but it requires proper maintenance to stay in peak condition. At BadBoyMowerParts.com, we carry all the Bad Boy Mower parts needed to keep your Kohler engine running smoothly, including air filters, fuel pumps, spark plugs, and cooling components. Our Bad Boy Mower part diagrams for 2025 MZ Magnum make finding the right engine parts simple and convenient. A well-maintained engine ensures optimal performance, reducing fuel waste and preventing breakdowns. We stock fast-moving parts to ensure quick shipping and minimal downtime. Plus, with Free Shipping On Orders Over $100, keeping your Kohler KT724 engine in top shape is easier than ever. Don’t let engine trouble stop your mowing progress—order today and keep your MZ Magnum running strong with reliable replacement parts.

Bad Boy Mower Parts Lookup

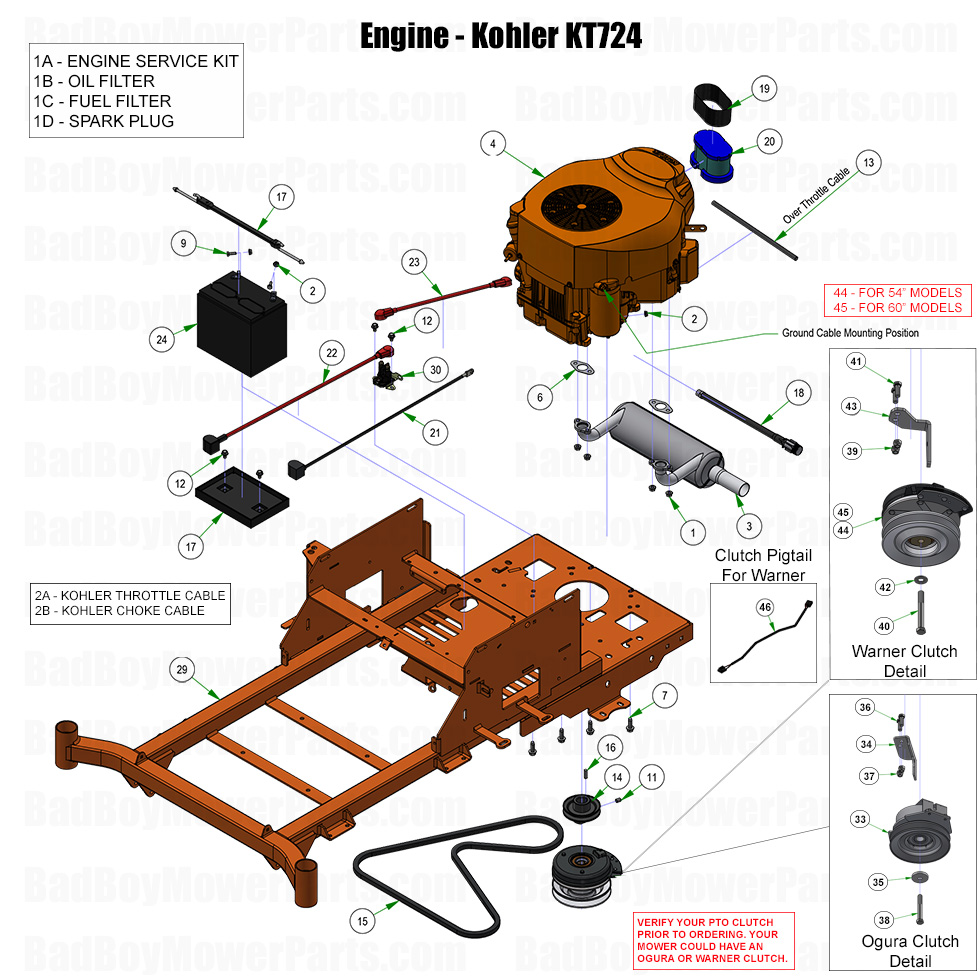

2025 MZ Magnum - Engine - Kohler KT724
  Position Number SKU Product Title Price
1A 063-2000-12 063-2000-12 - Engine Service Kit For Kohler 7000 Series PRO
$106.06
1B 063-5004-00 063-5004-00 - Oil Filter for Kohler KT725, KT740, KT745, ZT740, CV749 & ECV749 Engines
$29.69
1C 063-5001-00 063-5001-00 - Kohler Fuel Filter
$19.25

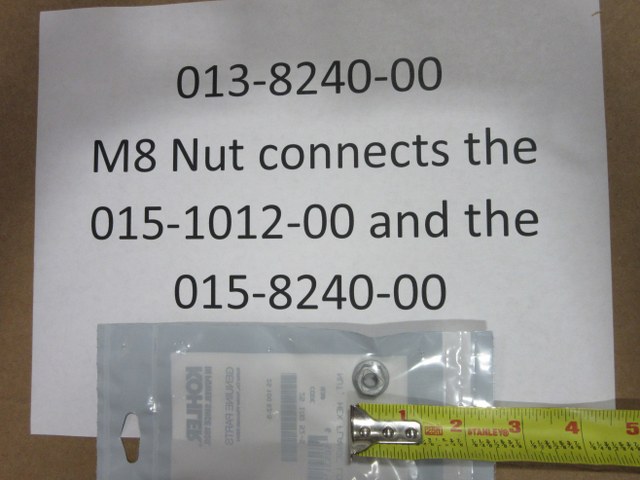

1 013-8240-00 013-8240-00 - M8 Nut For Exhaust (See Models Used On For Details)
$7.36
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
3 015-0051-00 015-0051-00 - 2017-2024 Kohler Exhaust MZ/ZT/Maverick
$217.48

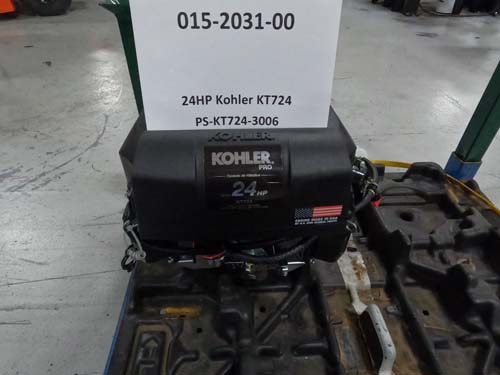

4 015-2031-00 015-2031-00 - 24hp Kohler KT724
$1599.99
6 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
7 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
9 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
11 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99

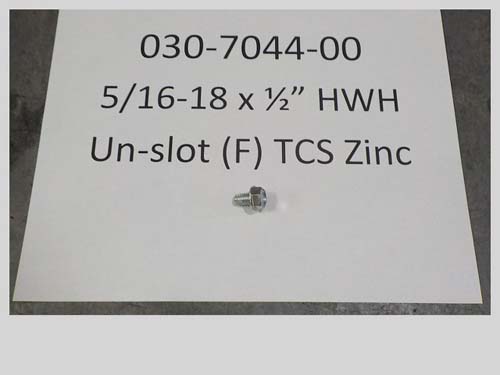

12 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99

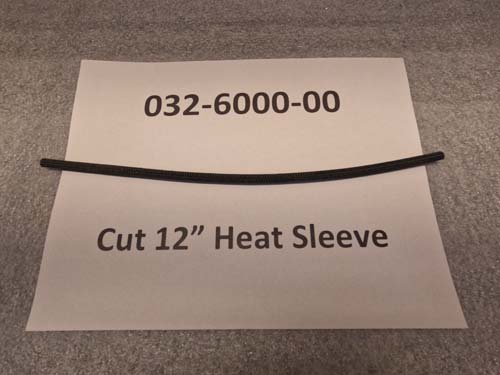

13 032-6000-00 032-6000-00 - Cut 12" Heat Sleeve
$2.99
14 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
15 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
16 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
17 043-8930-98 043-8930-98 - 2023-2024 Battery Hold Down Assembly Strap
$26.74
18 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
19 015-2026-02 015-2026-02 - Air Pre-Cleaner for Kohler
$10.91
20 015-2026-03 015-2026-03 - Air Filter Element for Kohler
$37.44
21 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
22 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
23 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
25 070-0057-00 070-0057-00 - 105 Ft Lb. Clutch- 1 Shaft
$139.99
26 070-0058-00 070-0058-00 - 120 Ft Lb. Clutch- 1 Shaft
$154.99
29 070-2501-00 070-2501-00 - 2025 MZ-Avenger 54-60 Frame--Orange
$899.99
30 108-0001-00 108-0001-00 - Solenoid
$29.41
33 070-0055-00 070-0055-00 - PTO Clutch (See Models Used On For Detail)
$279.99
34 057-5900-00 057-5900-00 - Clutch Stop 2017-2024 MZ, 2020-2024 ZT Avenger
$31.17
35 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
36 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
37 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
38 018-0007-21 018-0007-21 - 7/16-20x3 Hex Bolt GR8 w/Patch
$3.29

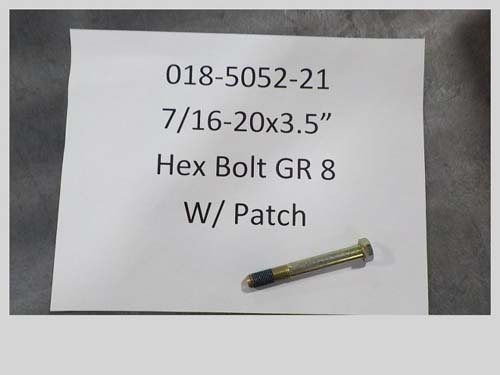

40 018-5052-21 018-5052-21 - 7/16-20x3.5 Hex Bolt GR 8 W/ Patch No Longer Available
Obsolete.
42 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
43 039-0267-00 039-0267-00-ZT Clutch Bracket-Plated
$21.39
46 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
