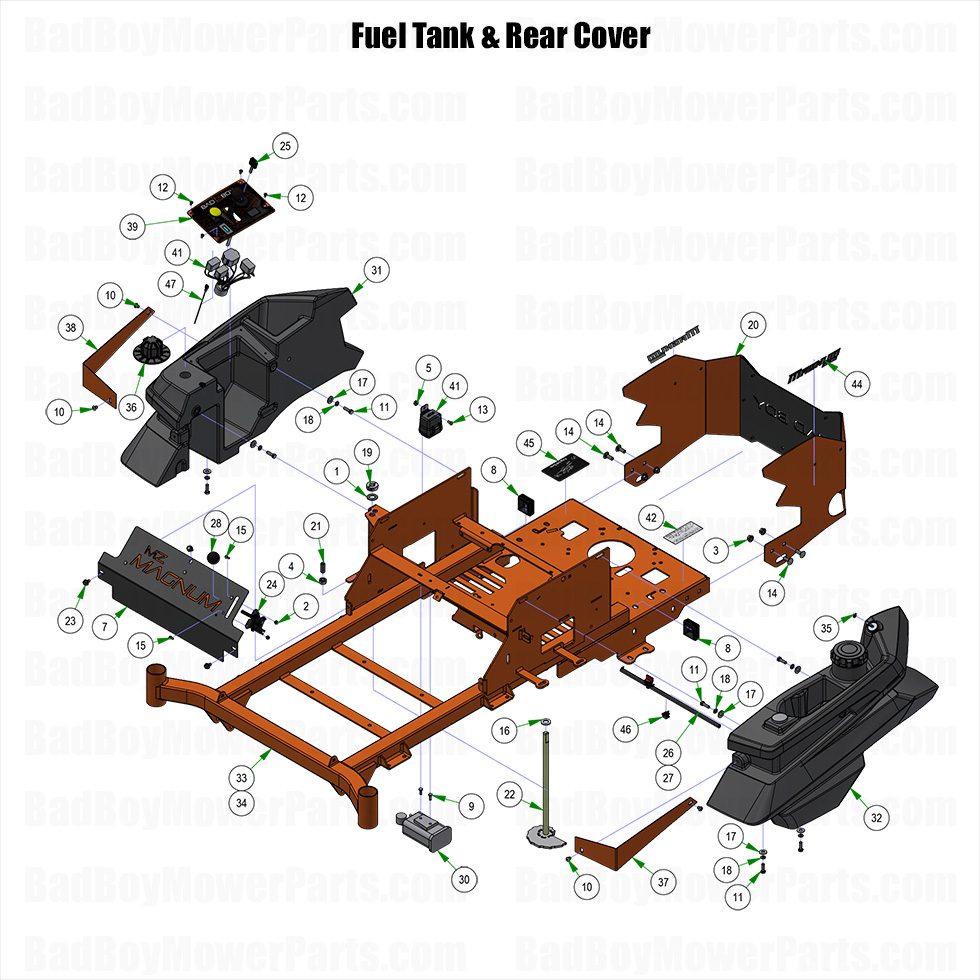

2025 MZ Magnum - Fuel Tank & Rear Cover

2025 MZ Magnum - Fuel Tank & Rear Cover

The Fuel Tank & Rear Cover assembly on your 2025 MZ Magnum protects essential fuel components while ensuring a secure and efficient fueling system. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower parts to keep these critical components in top condition. Our Bad Boy Mower part diagrams for 2025 MZ Magnum help you quickly locate and order the exact fuel tank, rear cover, and mounting hardware needed for maintenance or repairs. A cracked or worn-out fuel tank can lead to leaks and performance issues, while a damaged rear cover exposes your mower’s internal parts to debris. We stock fast-moving parts to get your mower back in action quickly. Plus, enjoy Free Shipping On Orders Over $100, making it easy and affordable to maintain your fuel system. Keep your mower’s fuel system safe and efficient—order Fuel Tank & Rear Cover parts today for optimal performance.

Bad Boy Mower Parts Lookup

2025 MZ Magnum - Fuel Tank & Rear Cover
  Position Number SKU Product Title Price
1 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
2 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99

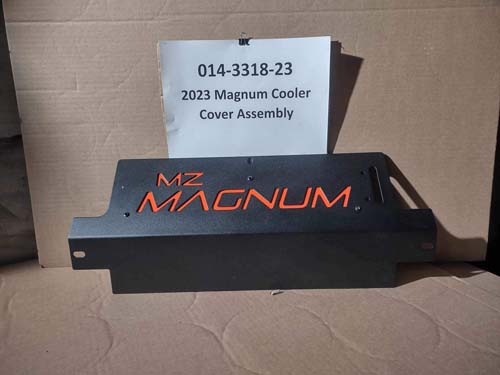

7 014-3318-23 014-3318-23 - 2023 Magnum Cooler Cover Assembly
$74.89
8 014-9000-00 014-9000-00 - Frame Plug 2x2
$2.99
9 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99

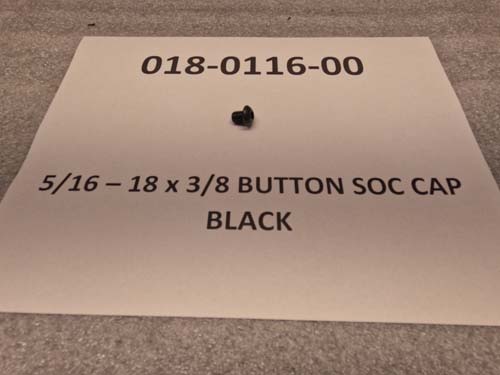

10 018-0116-00 018-0116-00 - 5/16-18 x 3/8 Button SOC CAP BLACK
$2.99
11 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
12 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
13 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
14 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
15 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
16 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
17 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
18 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
19 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
20 026-0400-25 026-0400-25 -2025 Rambler/Magnum backplate assembly
$78.99
21 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
22 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
23 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
24 039-0035-22 039-0035-22 - MZ Brake Plate Assembly w/ Brake Cable
$53.49
25 042-9000-00 042-9000-00 - Ignition Key
$4.06
28 055-2013-00 055-2013-00 - Throttle/Brake Head Ball
$12.48
30 067-0015-02 067-0015-02 - MZ Kohler EPA Cannister Assy
$56.72
32 067-2026-00 067-2026-00 - LH Fuel Tank (See Models Used On For Details)
$309.99
33 070-2500-00 070-2500-00 - 2025 MZ 42-48 Frame--Orange
$899.99
34 070-2501-00 070-2501-00 - 2025 MZ-Avenger 54-60 Frame--Orange
$899.99
35 072-8070-00 072-8070-00 - Tank Hose Clamp 3/16 (See Models Used On For Detail)
$2.99
36 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
44 091-0509-00 091-0509-00 - MY24 Magnum Back Plate Decal
$10.99
45 091-3017-00 091-3017-00 - Pump Belt Route Decal
$4.92
47 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
