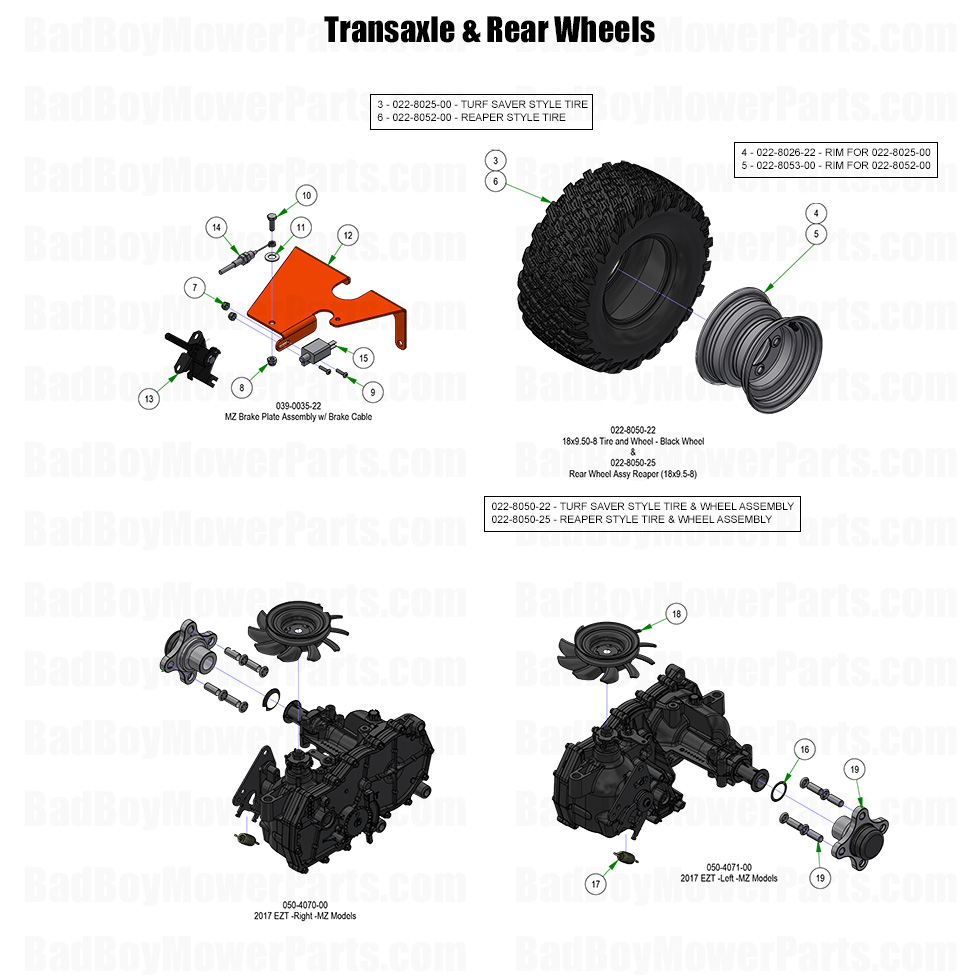

2025 MZ Magnum - Transaxle & Rear Wheels

2025 MZ Magnum - Transaxle & Rear Wheels

The Transaxle & Rear Wheels on your 2025 MZ Magnum play a crucial role in power distribution and overall mower performance. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower parts, including transaxle components, rear wheels, hubs, and mounting hardware. Our Bad Boy Mower part diagrams for 2025 MZ Magnum make it easy to find the correct parts for seamless repairs and upgrades. A worn-out transaxle or damaged rear wheels can lead to poor traction, uneven mowing, and reduced maneuverability. Regular maintenance ensures your mower operates smoothly and efficiently across all terrains. We keep fast-moving parts in stock for quick replacements, and with Free Shipping On Orders Over $100, maintaining your mower is more affordable than ever. Don’t let worn-out wheels or a faulty transaxle slow you down—order Transaxle & Rear Wheels parts today for improved performance and reliability.

Bad Boy Mower Parts Lookup

2025 MZ Magnum - Transaxle & Rear Wheels
  Position Number SKU Product Title Price
3A 022-8050-22 022-8050-22 - 18x9.50-8 Tire and Wheel - Black Wheel - Turf Saver Style Tire (See Models Used On For Details)
$163.99
3 022-8025-00 022-8025-00 - 18x9.50-8 Rear Tire Only (One Tire Only)
$197.99
4 022-8026-22 022-8026-22 - Black Rear Wheel 48in MZ (See Models Used On For Details)
$58.84
6A 022-8050-25 022-8050-25 - Rear Wheel Assy Reaper (18x9.5-8)
$229.99
6 022-8052-00 022-8052-00 - Tire Only for Rear Wheel Assy Reaper (18x9.5-8)
$149.99
7A 039-0035-22 039-0035-22 - MZ Brake Plate Assembly w/ Brake Cable
$53.49
7 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
8 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
9 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
10 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
11 019-2003-00 019-2003-00 - .390 x .750 x .062 Nylon Washer
$2.99
12 039-0035-00 039-0035-00 - MZ Brake Lock Bracket (See Models Used On for more details)
$9.61
13 055-2012-00 055-2012-00 - Universal Throttle/Brake Lever (Knob Not Included)
$25.54
14 064-8057-17 064-8057-17 - 2017-2025 MZ Brake Cable- 18.37" CABLE ONLY
$25.54
15 077-8073-00 077-8073-00 - Safety Switch (See Models Used On For Detail)
$10.99
16A 050-4071-00 050-4071-00 - 2017-2025 - Left Transaxle- MZ Models
$599.99
16B 050-4070-00 050-4070-00 - 2017-2025 - Right Transaxle - MZ Models
$599.99
16 015-8003-00 015-8003-00 - MZ Series Transaxle Seal & Retainer Kit
$86.54
17 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
18 050-2075-00 050-2075-00 - Fan/Pulley Kit for ZT/CZT/Maverick/Stand-On and MZ (2017-2024)
$70.97
19 050-2078-00 050-2078-00 - MZ 4 Bolt Hub Kit (See Models Used On For Details)
$95.22
