2025 MZ Rambler - Engine - Kohler KT722

2025 MZ Rambler - Engine - Kohler KT722

The 2025 MZ Rambler Engine - Kohler KT722 is built for durability and efficiency, but proper maintenance is key to long-term performance. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts, including air filters, fuel lines, carburetors, and ignition components. Our Bad Boy Lawn Mower Parts selection makes it easy to keep your Kohler engine running smoothly. Using our Bad Boy Mower Part diagrams, you can quickly find and order the correct replacement parts. Routine engine maintenance ensures fuel efficiency, reliable starts, and smooth operation. We stock Bad Boy Parts Online so you can complete repairs without delay. Plus, take advantage of Free Shipping On Orders Over $100, making it more convenient to keep your engine performing at its best. Don’t wait for performance issues—order 2025 MZ Rambler Engine - Kohler KT722 parts today and ensure long-lasting reliability.

Bad Boy Mower Parts Lookup

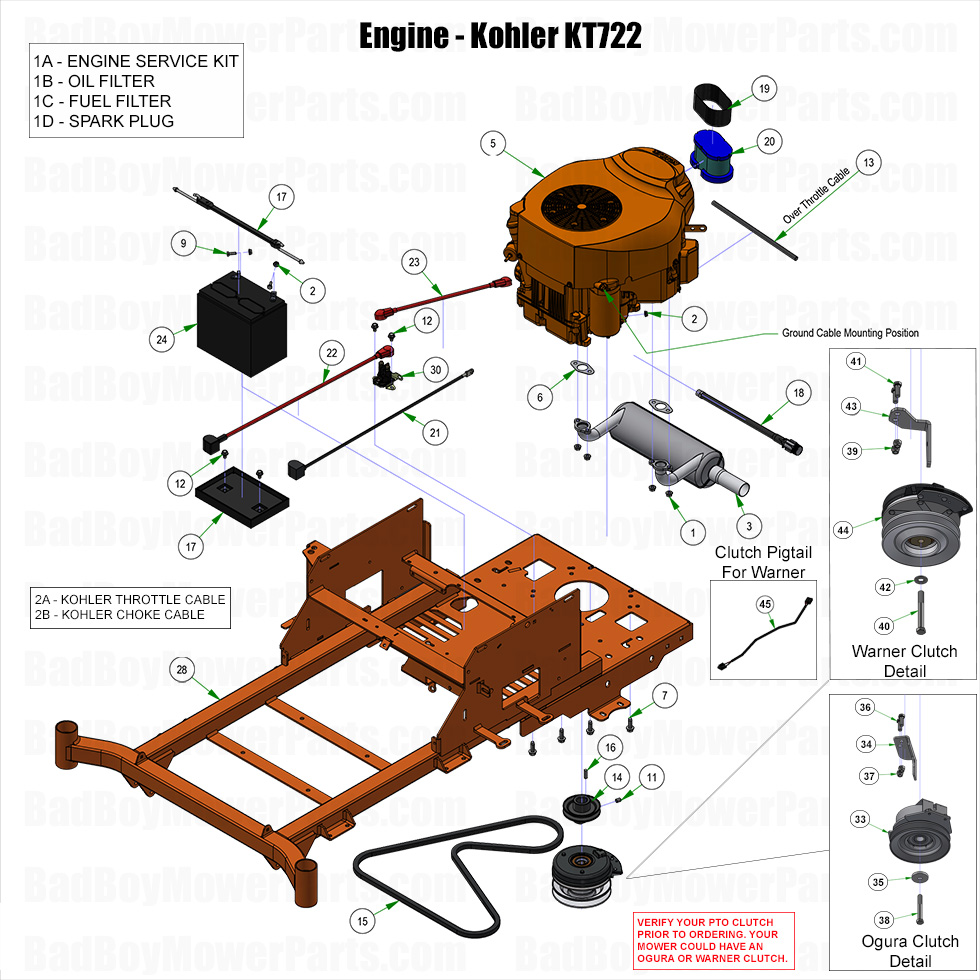

2025 MZ Rambler - Engine - Kohler KT722
  Position Number SKU Product Title Price
1A 063-2000-23 063-2000-23 - Kohler KT722 Engine Service Kit
$116.41
1 013-8240-00 013-8240-00 - M8 Nut For Exhaust (See Models Used On For Details)
$7.36
1b 015-0077-04 015-0077-04 - Oil Filter (See Models Used On For Details)
$24.12
1c 015-0077-07 015-0077-07 - Fuel Filter
$16.04
1d 015-2023-03 015-2023-03 - Spark Plug for ECV749
$12.83
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8016-00 054-8016-00 - 47" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$28.88
2 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
3 015-0051-00 015-0051-00 - 2017-2024 Kohler Exhaust MZ/ZT/Maverick
$217.48
6 015-2751-00 015-2751-00 - Exhaust Gasket for 27,30 hp Kohler Engines
$6.56
7 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
9 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
11 030-6029-00 030-6029-00 - 3/8-16x1/2 Set Screw
$2.99
12 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
13 032-6000-00 032-6000-00 - Cut 12" Heat Sleeve
$2.99
14 033-2010-00 033-2010-00 - 3 3/4 Motor Pulley (See Models Used On For Details)
$31.22
15 041-6400-00 041-6400-00 - Pump Belt (See Models Used On For Details)
$58.84
16 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
17 043-8930-98 043-8930-98 - 2023-2024 Battery Hold Down Assembly Strap
$26.74
18 051-5401-00 051-5401-00 - Kohler/Briggs Oil Drain Hose
$31.17
19 015-2023-02 015-2023-02 - Pre-Filter For 015-2023-01
$10.99
20 015-2023-01 015-2023-01 - Air Filter for 015-2023-00
$32.09
21 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
22 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
23 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
30 108-0001-00 108-0001-00 - Solenoid
$29.41
33 070-0055-00 070-0055-00 - PTO Clutch (See Models Used On For Detail)
$279.99
34 057-5900-00 057-5900-00 - Clutch Stop 2017-2024 MZ, 2020-2024 ZT Avenger
$31.17
35 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
36 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
37 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
38 018-0007-21 018-0007-21 - 7/16-20x3 Hex Bolt GR8 w/Patch
$3.29
40 018-5052-21 018-5052-21 - 7/16-20x3.5 Hex Bolt GR 8 W/ Patch No Longer Available
Obsolete.
42 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
43 039-0267-00 039-0267-00-ZT Clutch Bracket-Plated
$21.39
44 070-0057-00 070-0057-00 - 105 Ft Lb. Clutch- 1 Shaft
$139.99
45 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
