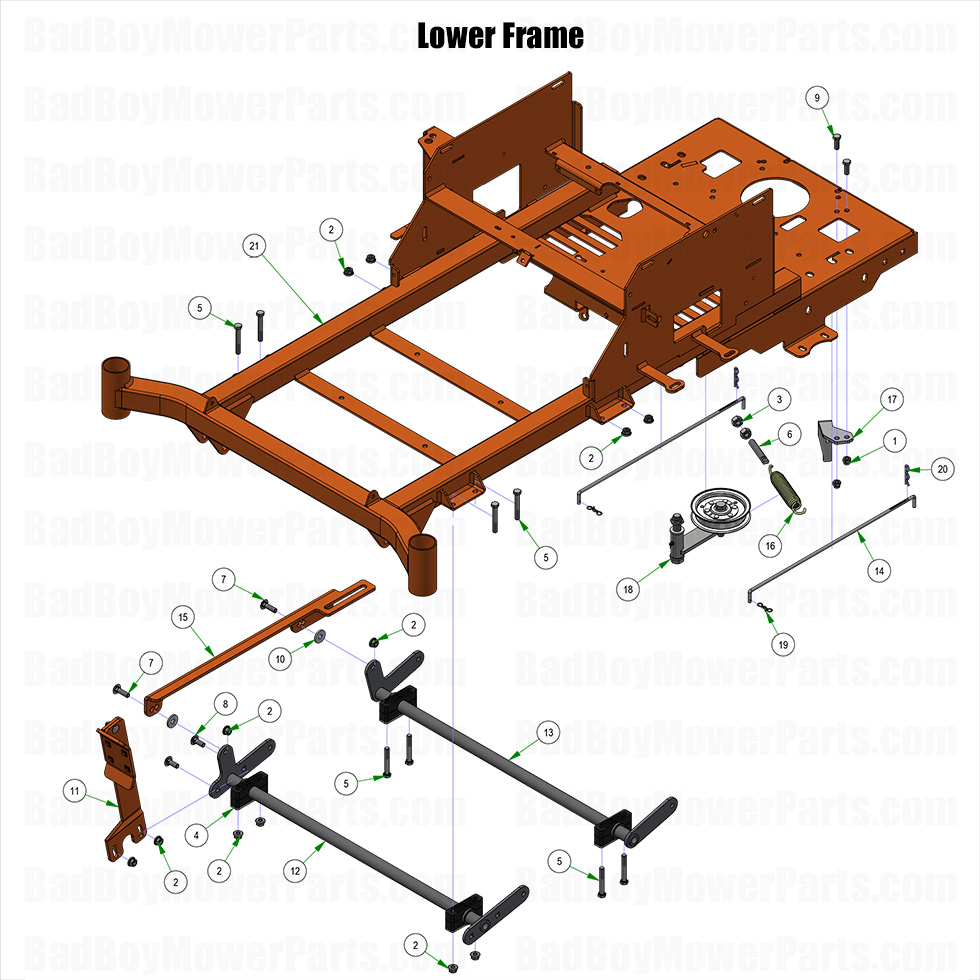

2025 MZ Rambler - Lower Frame Assembly

2025 MZ Rambler - Lower Frame Assembly

The 2025 MZ Rambler Lower Frame Assembly provides stability and support for your mower’s overall structure. At BadBoyMowerParts.com, we offer durable Bad Boy Mower Parts designed to keep your mower’s frame secure and long-lasting. Our Bad Boy Lawn Mower Parts inventory includes brackets, bolts, and reinforcements to maintain the strength of your lower frame. Using our Bad Boy Mower Part diagrams, you can easily locate and order the exact parts needed for repairs. A damaged lower frame can lead to vibrations and instability, affecting mowing efficiency. We keep Bad Boy Parts Online available for quick replacements, ensuring minimal downtime. Plus, with Free Shipping On Orders Over $100, maintaining your mower’s structural integrity is affordable and hassle-free. Don’t let wear and tear weaken your machine—order 2025 MZ Rambler Lower Frame Assembly parts today and keep your mower running smoothly.

Bad Boy Mower Parts Lookup

2025 MZ Rambler - Lower Frame Assembly
  Position Number SKU Product Title Price
1 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
4 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
5 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
6 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
7 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
8 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
9 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
10 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
11 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
12 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
13 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
14 028-0070-00 028-0070-00 - Neutral Rod
$12.48
15 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
16 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
17 039-0267-00 039-0267-00-ZT Clutch Bracket-Plated
$21.39
18 039-5944-01 039-5944-01 - Pump Idler Bracket Assy (See Models Used On For Details)
$62.46
19 044-2004-00 044-2004-00 - Bow Pin
$2.99
20 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
21 070-2500-00 070-2500-00 - 2025 MZ 42-48 Frame--Orange
$899.99
