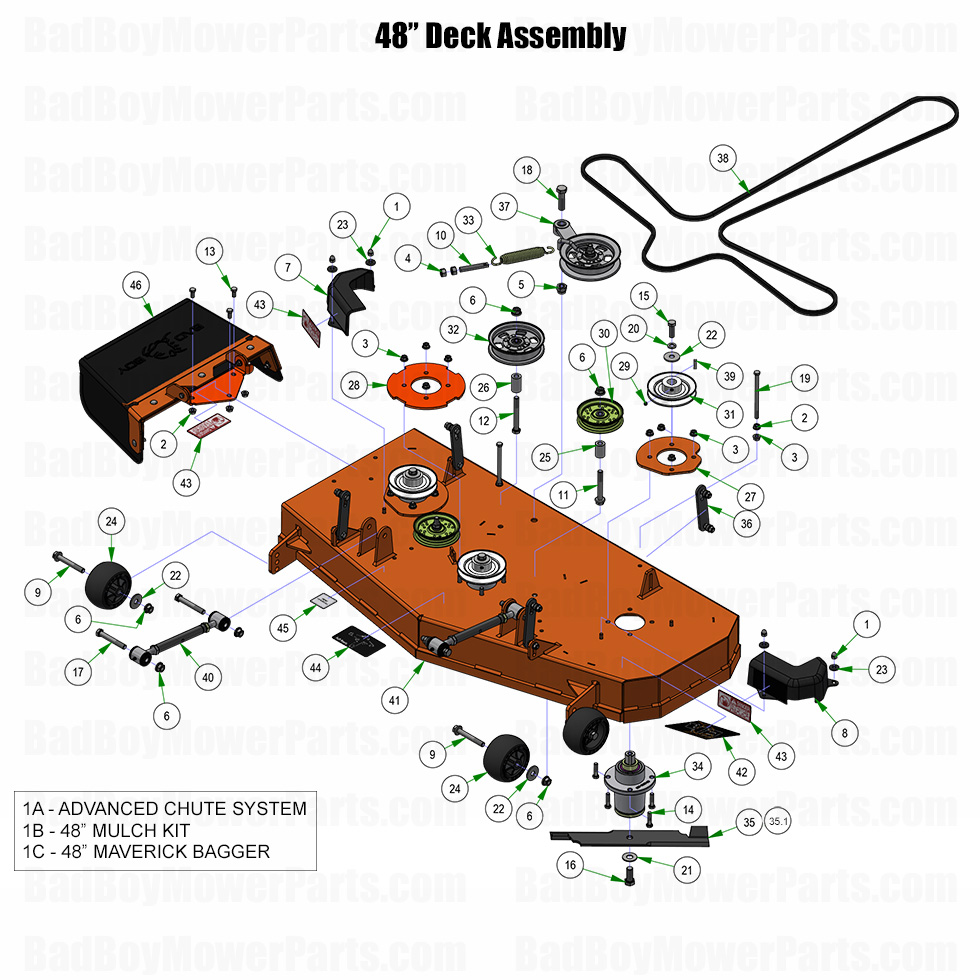

2025 Maverick - 48" Deck Assembly

2025 Maverick - 48" Deck Assembly

A well-maintained 48" Deck Assembly ensures a precise, even cut every time. At BadBoyMowerParts.com, we provide a full selection of Bad Boy Mower parts to keep your deck running like new. Whether you need blades, spindles, belts, or pulleys, our Bad Boy Mower part diagrams for 2025 Maverick make finding the right component simple. Built for durability and efficiency, the 48" deck is designed to handle tough mowing conditions, but regular maintenance is essential for peak performance. Our fast-moving parts inventory ensures you get what you need quickly, reducing downtime. Plus, take advantage of Free Shipping On Orders Over $100 for even greater savings. Don’t let worn-out deck parts slow you down—shop our extensive selection today and keep your 48" Deck Assembly in top condition for a flawless cut every time.

Bad Boy Mower Parts Lookup

2025 Maverick - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1C 092-4001-23 092-4001-23 Top Discharge Bagger (2017-2025 48" Maverick & Maverick HD)
$2399.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
8 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
9 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
10 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
11 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
12 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
13 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
14 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
15 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
18 018-6058-00 018-6058-00 - 5/8-11 X 2-1/4 Hex Bolts
$2.99
19 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
20 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
21 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
22 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
23 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
24 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
25 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
26 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
27 026-0024-00 026-0024-00 - 42 & 48 Deck Spindle Support Plate
$14.19
28 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
29 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
30 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
31 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
32 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
33 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
34 037-6015-50 037-6015-50 - Spindle Assembly (See Models Used On For Detail)
$199.99
35.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
35 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
36 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
38 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
39 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
40 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
42 091-0532-00 091-0532-00 - 48" Grip Deck Decal
$5.49
43 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
44 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
45 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
46 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
