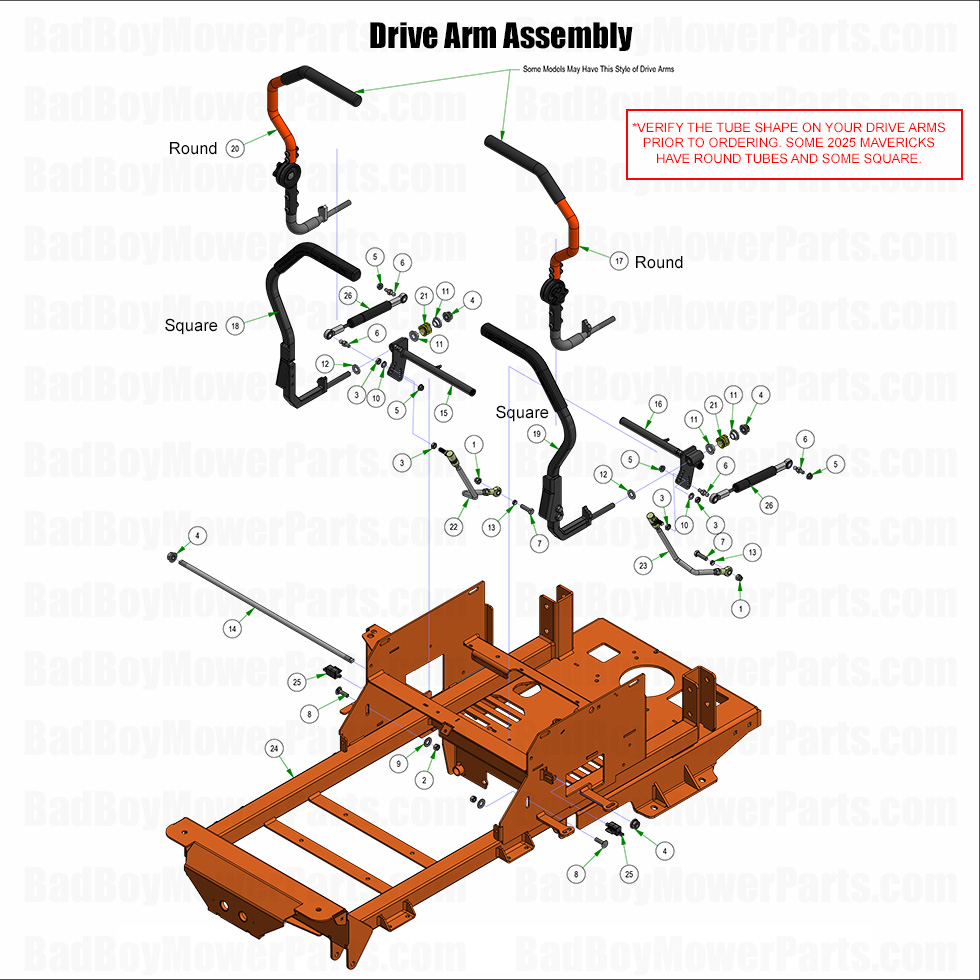

2025 Maverick - Drive Arm Assembly

2025 Maverick - Drive Arm Assembly

The Drive Arm Assembly is a crucial component of your Bad Boy Mower, ensuring precise steering and smooth control. At BadBoyMowerParts.com, we provide top-quality Bad Boy Mower parts to keep your 2025 Maverick in excellent condition. Whether you need replacement arms, bearings, or mounting hardware, our Bad Boy Mower part diagrams for 2025 Maverick make finding the correct components easy. Regular use can cause the drive arm assembly to wear, leading to poor maneuverability and uneven mowing performance. Keeping this part properly maintained is key to ensuring a smooth ride. We offer fast-moving parts for quick repairs and Free Shipping On Orders Over $100 to help you save on maintenance costs. Don't wait for steering issues to worsen—order your Drive Arm Assembly replacement parts today and keep your Maverick running smoothly all season long.

Bad Boy Mower Parts Lookup

2025 Maverick - Drive Arm Assembly
  Position Number SKU Product Title Price
1 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
7 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
8 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
9 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
10 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
11 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
12 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
13 025-0036-00 025-0036-00 - Drive Arm Transaxle Spacer
$5.49
14 028-0049-00 028-0049-00 - 2021 Maverick Steering Actuator Rod
$21.39
15 031-0053-21 031-0053-21 - 2021-2022 Maverick Drive Arm Actuator RH Assembly
$42.79
16 031-0054-21 031-0054-21 - 2021-2022 Maverick Drive Arm Actuator LH Assembly
$42.79
17 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
18 031-9045-00 031-9045-00 - Small Mower Square Drive Arm RH Assembly
$53.49
19 031-9046-00 031-9046-00 - Small Mower Square Drive Arm LH Assembly
$42.79
20 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
21 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
22 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
23 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
25 077-8075-00 077-8075-00 - Rail Mount Safety Switch
$6.59
26 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
