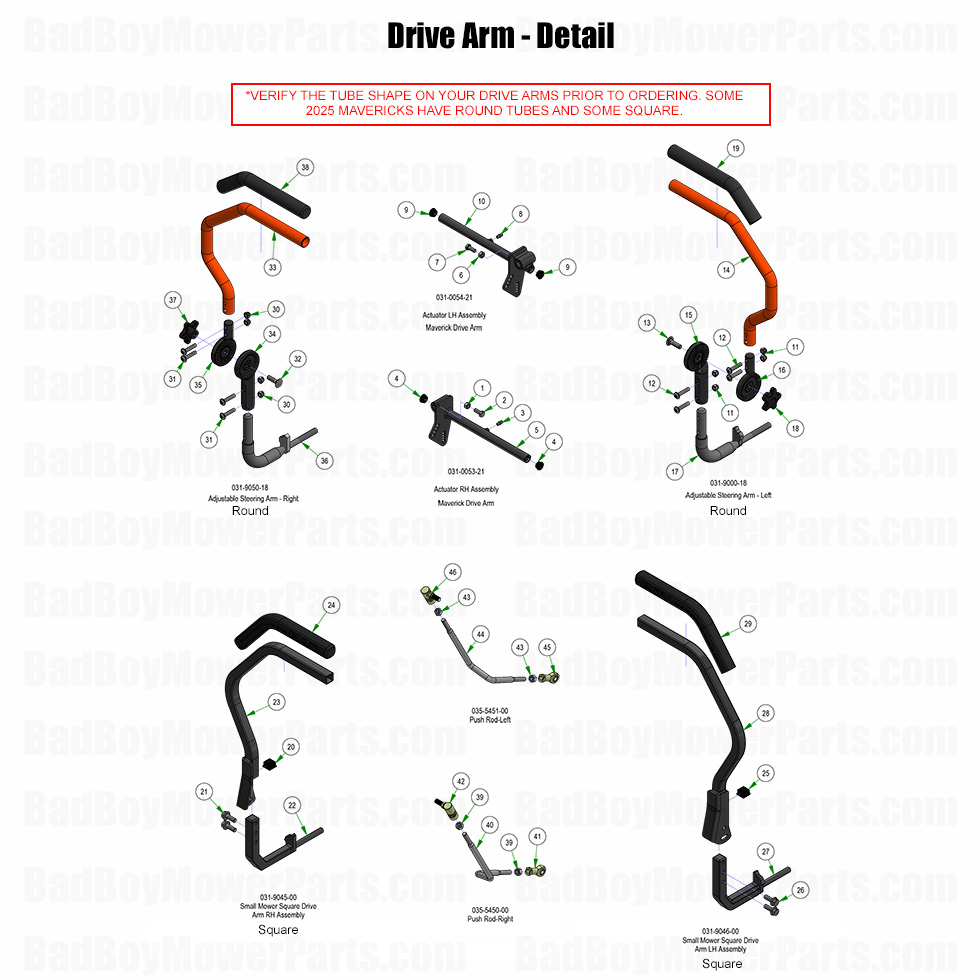

2025 Maverick - Drive Arm - Detail

2025 Maverick - Drive Arm - Detail

For precision steering and smooth operation, keeping your Drive Arm - Detail components in top condition is essential. At BadBoyMowerParts.com, we provide a full selection of Bad Boy Mower parts to ensure your 2025 Maverick runs like new. Our Bad Boy Mower part diagrams for 2025 Maverick make it easy to locate the exact drive arm components you need, from bolts and bushings to linkages and brackets. Over time, wear and tear can cause steering responsiveness to decline, but with the right replacement parts, your mower will handle smoothly again. We stock fast-moving parts to minimize downtime and get you back to mowing quickly. Plus, with Free Shipping On Orders Over $100, ordering high-quality replacement parts is even more convenient. Don't let worn-out drive arms slow you down—browse our selection today and keep your Maverick operating at peak performance.

Bad Boy Mower Parts Lookup

2025 Maverick - Drive Arm - Detail
  Position Number SKU Product Title Price
1A 031-9050-18 031-9050-18 - 2017 - 2022 Right Adjustable Steering Arm Black
$144.50
1B 031-9000-18 031-9000-18 - Left Adjustable Steering Arm (See Models Used On For Details)
$144.50
1C 031-0054-21 031-0054-21 - 2021-2022 Maverick Drive Arm Actuator LH Assembly
$42.79
1D 031-0053-21 031-0053-21 - 2021-2022 Maverick Drive Arm Actuator RH Assembly
$42.79
1E 031-9045-00 031-9045-00 - Small Mower Square Drive Arm RH Assembly
$53.49
1F 031-9046-00 031-9046-00 - Small Mower Square Drive Arm LH Assembly
$42.79
1G 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
1H 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
1 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
2 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
3 024-6034-00 024-6034-00 - 1/4 Drive-in Grease Fitting
$2.99
4 031-0032-00 031-0032-00 - Drive Arm Bushing (Plastic Flange)
$7.28
5 031-0053-00 031-0053-00 - 2021 Maverick Drive Actuator RH Weldment No Longer Available
Obsolete.
10 031-0054-00 031-0054-00 - 2021 Maverick Drive Actuator LH Weldment No Longer Available
Obsolete.
11 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
12 018-2020-18 018-2020-18 - 5/16-18 x 1 3/8" Button Head Torx Drive
$2.99
13 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
14 031-9010-18 031-9010-18 - Upper Steering Arm (See Models Used On For Details)
$28.32
15 031-9014-18 031-9014-18 - Black Lower Adjuster Steering Arm 2019-2022 Maverick, Compact Outlaw
$53.24
16 031-9017-18 031-9017-18 - Black Upper Adjuster - Steering Arm (See Models Used On For Details)
$53.24
17 031-9020-18 031-9020-18 - Left Black Steering Arm Elbow
$85.17
18 045-5000-00 045-5000-00 - Knob - Adjustable Steering Arm
$5.49
19 069-4010-00 069-4010-00 - Black Steering Grip
$8.12
34 031-9015-18 031-9015-18 - Left Lower Steering Arm Adjuster Black
$53.24
35 031-9016-18 031-9016-18 - Black Upper Adjuster - Steering Arm (See Models Used On For Details)
$53.24
36 031-9025-18 031-9025-18 - 2019 and Newer Black Steering Arm Elbow - Right
$85.17
39 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
41 048-3000-00 048-3000-00 - Spherical Rod End (See Models Used On For Details)
$14.19
42 099-2009-00 099-2009-00 - Quick Release Ball Joint (See Models Used On For Details)
$9.89
