2025 Maverick - Engine - Briggs CXI

2025 Maverick - Engine - Briggs CXI

If your 2025 Maverick is powered by a Briggs CXI engine, keeping it well-maintained is crucial for peak performance. At BadBoyMowerParts.com, we carry a full selection of Bad Boy Mower parts, including filters, spark plugs, gaskets, and more. Our Bad Boy Mower part diagrams for 2025 Maverick make it easy to identify and order the exact components you need. Regular maintenance helps extend the life of your Briggs CXI engine, ensuring smooth starts and powerful cutting performance. We stock fast-moving parts so you can replace worn-out components quickly and get back to work. Plus, take advantage of Free Shipping On Orders Over $100, making it more affordable to maintain your mower. Keep your Briggs CXI engine running like new with high-quality parts from BadBoyMowerParts.com—your trusted source for all Bad Boy Mower needs.

Bad Boy Mower Parts Lookup

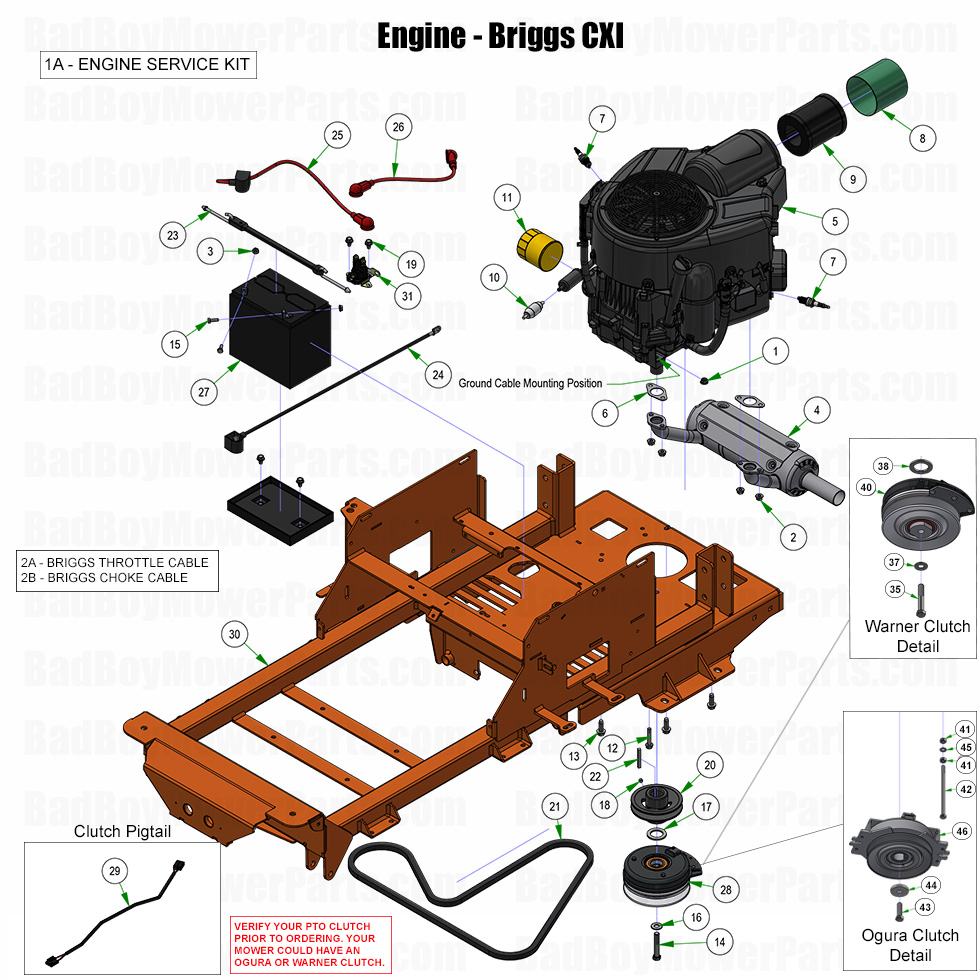

2025 Maverick - Engine - Briggs CXI
  Position Number SKU Product Title Price
1A 063-2000-04 063-2000-04 - Briggs 30hp & CXI Engine Service Kit
$92.93
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
3 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
4 015-0057-00 015-0057-00 - 2017-2024 Exhaust 810 Vanguard
$169.99
5 015-0511-00 015-0511-00 - Vangaurd 27hp CXI with Out Oil Filter
$3099.99
6 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
7 015-8000-00 015-8000-00 - Spark Plug (RC12YC or Equivalent)
$13.90
8 063-1000-00 063-1000-00 - Pre-Cleaner for 063-3003-00
$12.83
9 063-1005-00 063-1005-00 - Air Filter for Vanguard CXI Engine (obsolete)
use part #063-3003-00
$44.93
10 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
11 063-8018-00 063-8018-00 - Oil Filter
$21.39
13 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
14 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
15 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
16 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
17 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
18 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
19 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
20 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
21 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
22 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
23 043-8930-98 043-8930-98 - 2023-2024 Battery Hold Down Assembly Strap
$26.74
24 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
25 064-5300-00 064-5300-00 - 24" Red Battery Cable
$21.85
26 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
28 070-0059-00 070-0059-00 - 120 Ft Lb. Clutch- 1 1/8 Shaft
$359.99
29 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
31 108-0001-00 108-0001-00 - Solenoid
$29.41
34 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
36 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
39 039-0267-00 039-0267-00-ZT Clutch Bracket-Plated
$21.39
41 013-8043-00 013-8043-00 - 5/16-18 Hex Nut
$2.99
42 018-5350-00 018-5350-00 - 5/16-18 X 5-1/2 Hex Bolt
$2.99
43 018-5450-21 018-5450-21 - 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch
$2.99
44 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
45 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
46 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
