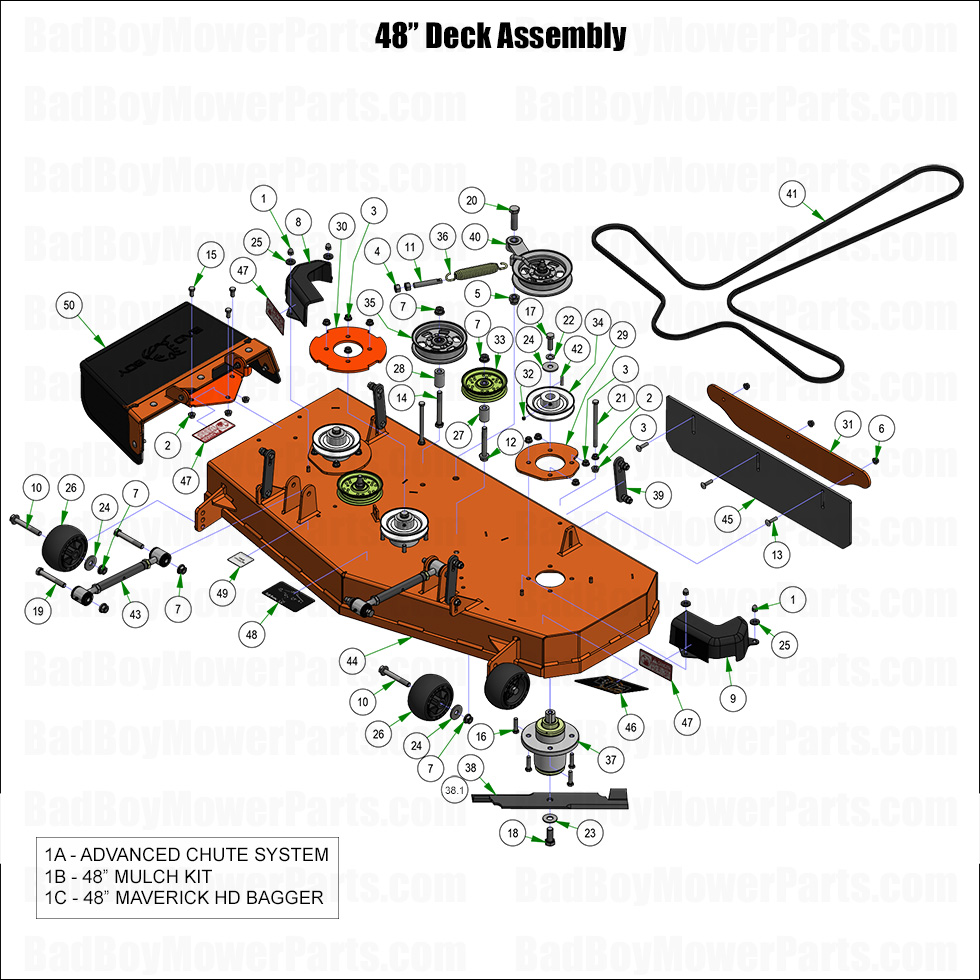

2025 Maverick HD - 48" Deck Assembly

2025 Maverick HD - 48" Deck Assembly

Your 48" Deck Assembly is a vital part of your 2025 Maverick HD, and regular maintenance ensures top-tier cutting performance. At BadBoyMowerParts.com, we stock a wide selection of Bad Boy Mower parts, including spindles, belts, blades, and idler arms to keep your mower in excellent condition. Our Bad Boy Mower part diagrams for 2025 Maverick HD help you locate the exact replacement parts you need for quick and hassle-free repairs. A damaged deck can cause uneven cuts and strain on your mower, making timely replacements crucial. We offer fast-moving parts to minimize downtime and keep your mower running at its best. Plus, take advantage of Free Shipping On Orders Over $100, ensuring you get the best value on high-quality parts. Keep your 48" Deck Assembly in top shape and enjoy a flawless mowing experience—order today!

Bad Boy Mower Parts Lookup

2025 Maverick HD - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6006-00 088-6006-00 - Advanced Chute System For Select 42", 48", 50", 52" Mowers & select 54", 2022 - 2024 Maverick HD 42", Will Not Fit MZ
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1C 092-4001-23 092-4001-23 Top Discharge Bagger (2017-2025 48" Maverick & Maverick HD)
$2399.99
1 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
2 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
5 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
6 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-4025-00 014-4025-00 - Extra Small Pulley Cover - Right (See Models Used On For Details)
$17.86
9 014-4026-00 014-4026-00 - Extra Small Pulley Cover - Left
$17.86
10 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
11 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
12 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
13 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
14 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
15 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
16 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
17 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
18 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
19 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
20 018-6058-00 018-6058-00 - 5/8-11 X 2-1/4 Hex Bolts
$2.99
21 018-7060-00 018-7060-00 - 3/8-16 x 5 1/2 Hex Bolt -
$2.99
22 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
23 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
24 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
25 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
26 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
27 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
28 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
29 026-0024-00 026-0024-00 - 42 & 48 Deck Spindle Support Plate
$14.19
30 026-0025-00 026-0025-00 - Deck Spindle Support Plate
$14.19
31 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
32 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
33 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
34 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
35 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
36 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
37 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
38.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
38 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
39 039-2127-17 039-2127-17 - Deck Hanger Assy. (See Models Used On For Details)
$15.60
41 041-1470-00 041-1470-00 - B147 Deck Belt (See Models Used On For Details)
$87.39
42 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
43 048-6000-00 048-6000-00 - Maverick/Compact Outlaw/Revolt Toplink
$80.24
45 084-5006-00 084-5006-00 - 2023 ZT Stripe Kit Rubber
$56.77
46 091-0532-00 091-0532-00 - 48" Grip Deck Decal
$5.49
47 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
48 091-3309-00 091-3309-00 - Deck Belt Route Decal
$6.41
49 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
50 210-6005-48 210-6005-48 - Chute Assembly (See Models Used On For Detail)
$169.99
