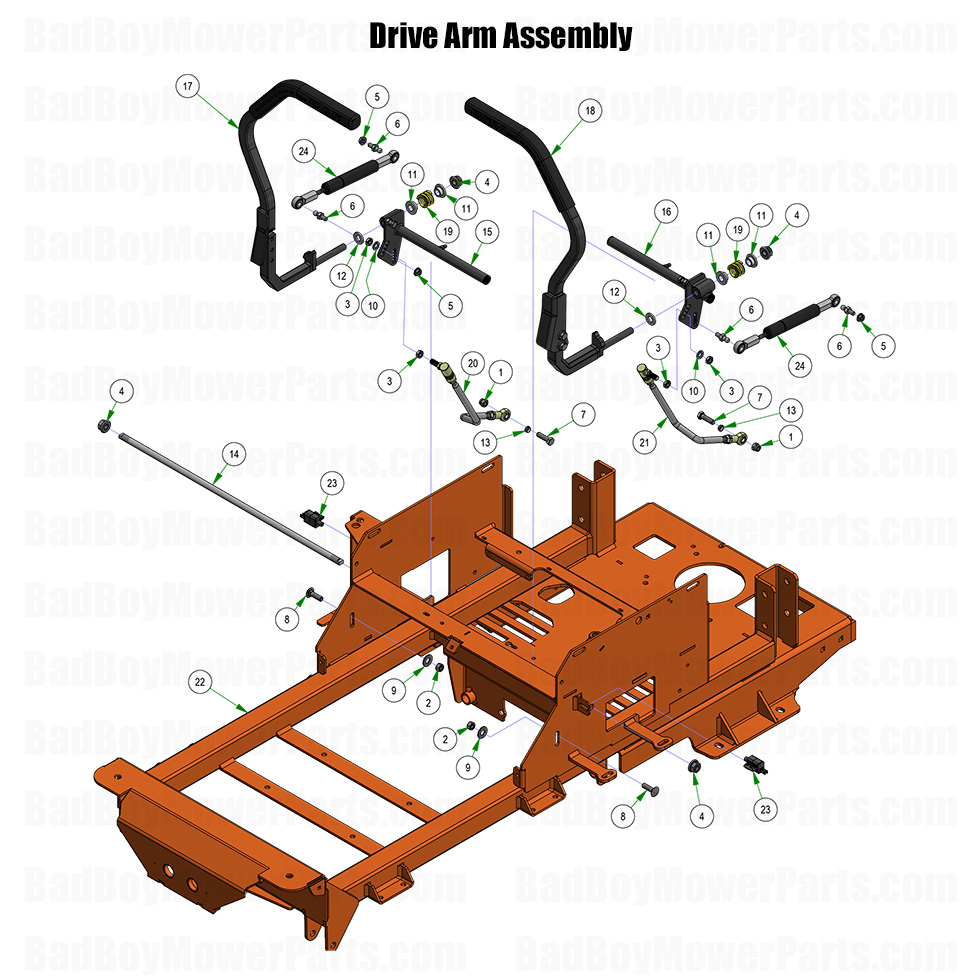

2025 Maverick HD - Drive Arm Assembly

2025 Maverick HD - Drive Arm Assembly

A reliable Drive Arm Assembly is crucial for maintaining the precise steering and performance of your 2025 Maverick HD. At BadBoyMowerParts.com, we provide durable Bad Boy Mower parts, including replacement drive arms, bolts, and adjustment components. Our Bad Boy Mower part diagrams for 2025 Maverick HD make it easy to find the right assembly parts for quick repairs. Over time, the drive arm assembly can wear down, causing issues with maneuverability and responsiveness. Regular inspections and timely replacements help prevent bigger issues and keep your mower running smoothly. We offer fast-moving parts for quick shipping, and with Free Shipping On Orders Over $100, maintaining your Maverick HD is even more affordable. Keep your mower performing at its best—order your Drive Arm Assembly replacement parts today and enjoy seamless operation all season long.

Bad Boy Mower Parts Lookup

2025 Maverick HD - Drive Arm Assembly
  Position Number SKU Product Title Price
1 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
2 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
3 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
4 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
5 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
6 018-2050-00 018-2050-00 - 10mm Damper Ball Stud-Steering Damper, Outlaw Deck Damper
$2.99
7 018-5040-00 018-5040-00 - 3/8-16 X 1-1/4 Hex Bolt
$2.99
8 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
9 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
10 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
11 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
12 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
13 025-0036-00 025-0036-00 - Drive Arm Transaxle Spacer
$5.49
14 028-0049-00 028-0049-00 - 2021 Maverick Steering Actuator Rod
$21.39
15 031-0053-21 031-0053-21 - 2021-2022 Maverick Drive Arm Actuator RH Assembly
$42.79
16 031-0054-21 031-0054-21 - 2021-2022 Maverick Drive Arm Actuator LH Assembly
$42.79
17 031-9045-00 031-9045-00 - Small Mower Square Drive Arm RH Assembly
$53.49
18 031-9046-00 031-9046-00 - Small Mower Square Drive Arm LH Assembly
$42.79
19 034-8025-00 034-8025-00 - Drive Lever Housing Spring
$4.07
20 035-5450-00 035-5450-00 - Right Steering Push Rod (See Models Used On For Details)
$33.95
21 035-5451-00 035-5451-00 - Left Steering Push Rod (See Models Used On For Details)
$42.58
23 077-8075-00 077-8075-00 - Rail Mount Safety Switch
$6.59
24 087-0001-00 087-0001-00 - Steering Damper (See Models Used On For Details)
$62.40
