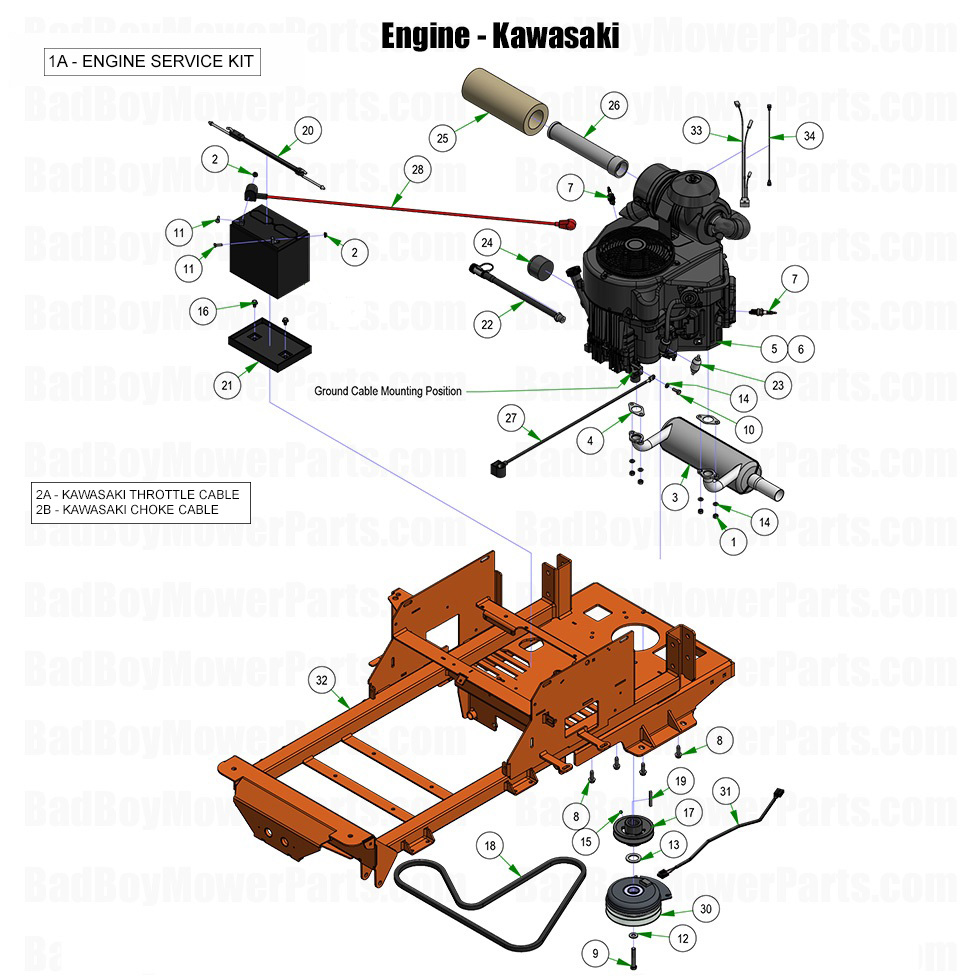

2025 Maverick HD - Engine - Kawasaki FX691/FX730

2025 Maverick HD - Engine - Kawasaki FX691/FX730

The Kawasaki FX691/FX730 engine delivers powerful, efficient performance for your 2025 Maverick HD, but it requires regular maintenance to keep running strong. At BadBoyMowerParts.com, we stock essential Bad Boy Mower parts, including filters, gaskets, spark plugs, and fuel system components. Our Bad Boy Mower part diagrams for 2025 Maverick HD make it easy to locate the exact engine parts needed for repairs. Routine maintenance ensures optimal fuel efficiency, smoother operation, and a longer engine lifespan. We carry fast-moving parts to get your mower back in action quickly, and with Free Shipping On Orders Over $100, keeping your engine in top shape has never been more cost-effective. Don't wait for engine trouble to slow you down—shop for Kawasaki FX691/FX730 engine parts today and keep your Maverick HD performing at its peak.

Bad Boy Mower Parts Lookup

2025 Maverick HD - Engine - Kawasaki FX691/FX730
  Position Number SKU Product Title Price
1A 063-2000-14 063-2000-14 - Kawasaki FX691V & FX730V Engine Service Kit
$127.15
1 013-0075-00 013-0075-00 - M8 - 1.25 Zinc Nut
$3.29
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
3 015-0052-00 015-0052-00 - Kawasaki Exhaust MZ/ZT/Maverick/Compact Outlaw (See Models Used On For Details)
$217.48
4 015-2709-00 015-2709-00 - Exhaust Gasket (See Models Used On For Detail)
$8.01
5 015-0691-00 015-0691-00 - FX691 Kawasaki Compact Outlaw
$2599.00
6 015-0730-00 015-0730-00 - FX730 Kawasaki Engine
$2599.00
7 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
8 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
9 018-5300-21 018-5300-21 - 7/16-20x2.5 Hex Bolt GR 8 W/ Patch
$3.73
10 018-5321-00 018-5321-00 - M8 x 1.25 x 20MM Hex Head Bolt
$2.99
11 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
12 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
13 019-6029-00 019-6029-00 - 1.140x1.750x.132 Flat Washer
$2.99
14 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
15 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
16 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
17 033-5035-00 033-5035-00 - 4 3/4 Motor Pulley - Extended Shaft (See Models Used On For Details)
$42.58
18 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
19 042-5020-00 042-5020-00 - 1/4 X 2 Square Key Stock
$2.99
20 043-8930-00 043-8930-00 2023 - Rubber Battery Hold Down Strap
$21.39
21 043-8931-00 043-8931-00 - 2023 Battery Tray Only
$20.32
22 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
23 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
24 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
25 063-8019-00 063-8019-00 - Outer Air Filter, Fits all except 23 Briggs/Diesel
$35.84
26 063-8020-00 063-8020-00 - Inner Canister Air Filter - Fits All except 23 Briggs/Diesel
$32.65
27 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
28 064-8060-00 064-8060-00 - 36" Red Battery Cable (See Models Used On For Details)
$20.93
30 070-1000-00 070-1000-00 - PTO Clutch (See Models Used On For Details)
$279.99
31 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
33 086-9002-00 086-9002-00 - Harness Adaptor-Outlaw FX-All
$46.84
34 086-9005-00 086-9005-00 - C-Outlaw Starter Jumper Wire
$23.53
