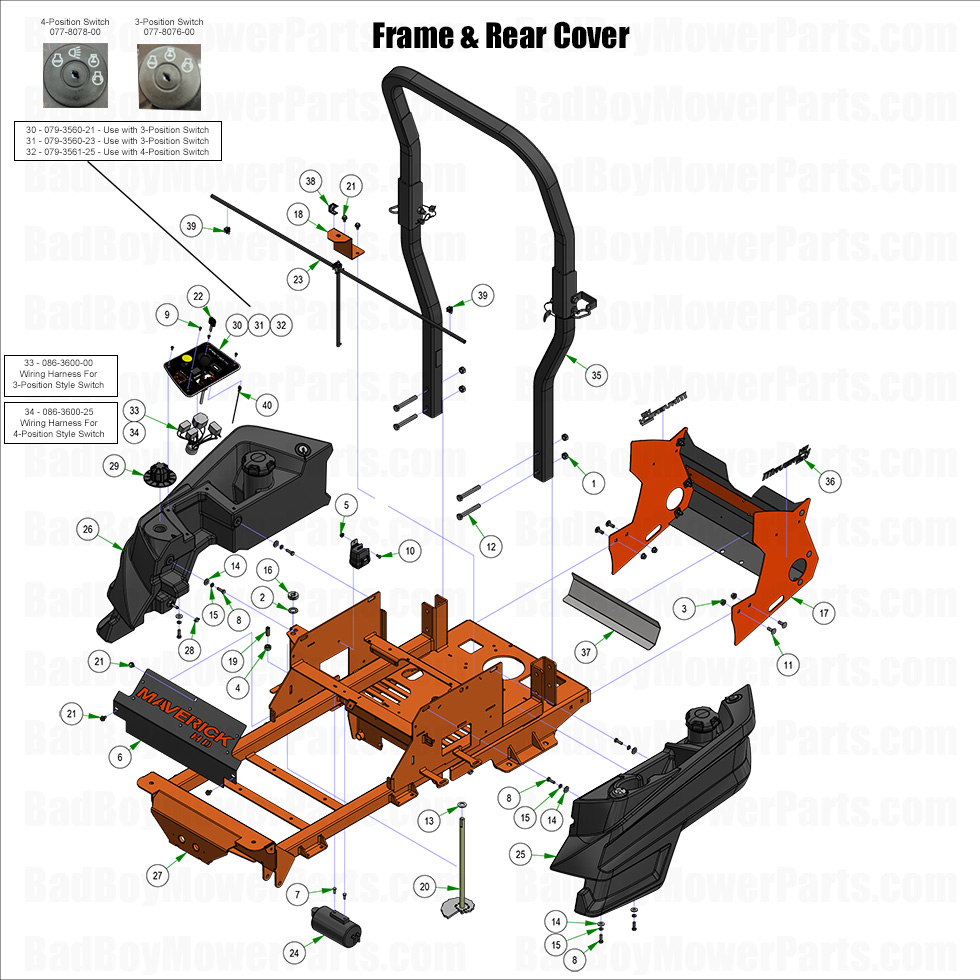

2025 Maverick HD - Frame & Rear Cover

2025 Maverick HD - Frame & Rear Cover

The Frame & Rear Cover of your 2025 Maverick HD provide structural integrity and protect essential components from debris and damage. At BadBoyMowerParts.com, we offer durable Bad Boy Mower parts to keep your mower’s frame strong and secure. Whether you need brackets, bolts, or full frame replacements, our Bad Boy Mower part diagrams for 2025 Maverick HD make finding the right parts simple. A well-maintained frame prevents unnecessary wear on other mower components, ensuring long-term durability. If your rear cover is cracked or worn, replacing it can protect critical parts like the engine and fuel tank. We stock fast-moving parts for quick repairs and offer Free Shipping On Orders Over $100, so you can maintain your mower without extra costs. Keep your Maverick HD in top condition—shop for Frame & Rear Cover parts today and enjoy reliable performance every time you mow.

Bad Boy Mower Parts Lookup

2025 Maverick HD - Frame & Rear Cover
  Position Number SKU Product Title Price
1 013-0005-00 013-0005-00 - 1/2" Center Lock Nut
$2.99
2 013-0080-00 013-0080-00 -.630 ID x 1.130 OD x.062 THK F/W Nylon Black
$2.99
3 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
4 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
4 077-8078-00 077-8078-00 - 4-Way Key Switch
$11.76
5 013-9001-00 013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations
$2.99
6 014-1001-00 014-1001-00 - Maverick HD Cooler Cover
$109.99
7 018-0024-00 018-0024-00 - M6-1.0 X 16MM HEX BOLT
$2.99
8 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
9 018-2010-00 018-2010-00 - 10-32 X 3/8 BS C/S 18-8 SS
$2.99
10 018-2012-00 018-2012-00 - 1/4-20 X 1/2 BS C/S 18-8 SS
$2.99
11 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
12 018-6054-00 018-6054-00 - 1/2-13 X 3-1/2 Hex Bolts
$2.99
13 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
14 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
15 019-8051-00 019-8051-00 - 5/16" Lockwasher Zinc
$2.99
16 025-0002-00 025-0002-00 - Two-Piece Split Collar (See Models Used On For Details)
$10.91
17 026-0205-22 026-0205-22 - 2022 Maverick Rear Cover Assembly
$189.99

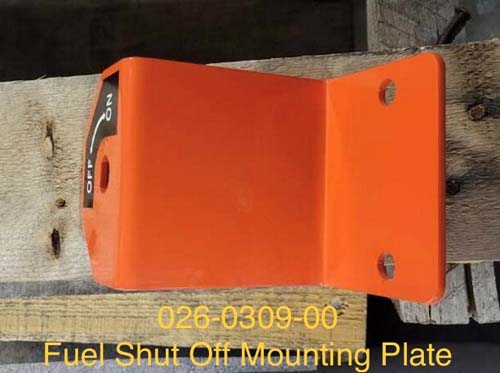

18 026-0309-00 026-0309-00 - Fuel Shut Off Mounting Plate--Orange
$21.39
19 028-0008-00 028-0008-00 - Deck Height Dial Rod Plunger (See Models Used On For Detail)
$31.17
20 028-0070-17 028-0070-17 - Deck Height Bar Assy. (See Models Used On for Details)
$29.66
21 030-7044-00 030-7044-00 - 5/16-18 x HWH unslot (F) tcs zinc
$2.99
22 042-9000-00 042-9000-00 - Ignition Key
$4.06
25 067-2021-00 067-2021-00 - 2021-2024 Maverick Left Side Tank
$349.99
26 067-2022-00 067-2022-00 - 2022 Maverick HD RH Fuel Tank
$459.99
28 072-8076-00 072-8076-00 - 12.5mm/15mm OETIKER 2 Ear Clamp
$2.99
29 077-9000-00 077-9000-00 - Deck Height Dial (See Models Used On For Detail)
$21.39
33 086-3600-00 086-3600-00 - Wiring Harness With Clips (See Models Used On For Details)
$299.99
35 089-0005-00 089-0005-00 - 2x2 Folding ROPS (See Models Used On For Details)
$796.75
36 091-0513-00 091-0513-00 - MY24 Maverick HD Back Plate Decal
$2.99
37 091-4050-00 091-4050-00 - Heat Shield (Fiberglass Adhesive)
$14.19
38 091-6021-00 091-6021-00 - Maverick HD Shut Off Valve Decal
$2.99
40 216-1000-17 216-1000-17 - 2017-2024 MZ/ZT/MAV Tach Wire Assy
$7.28
