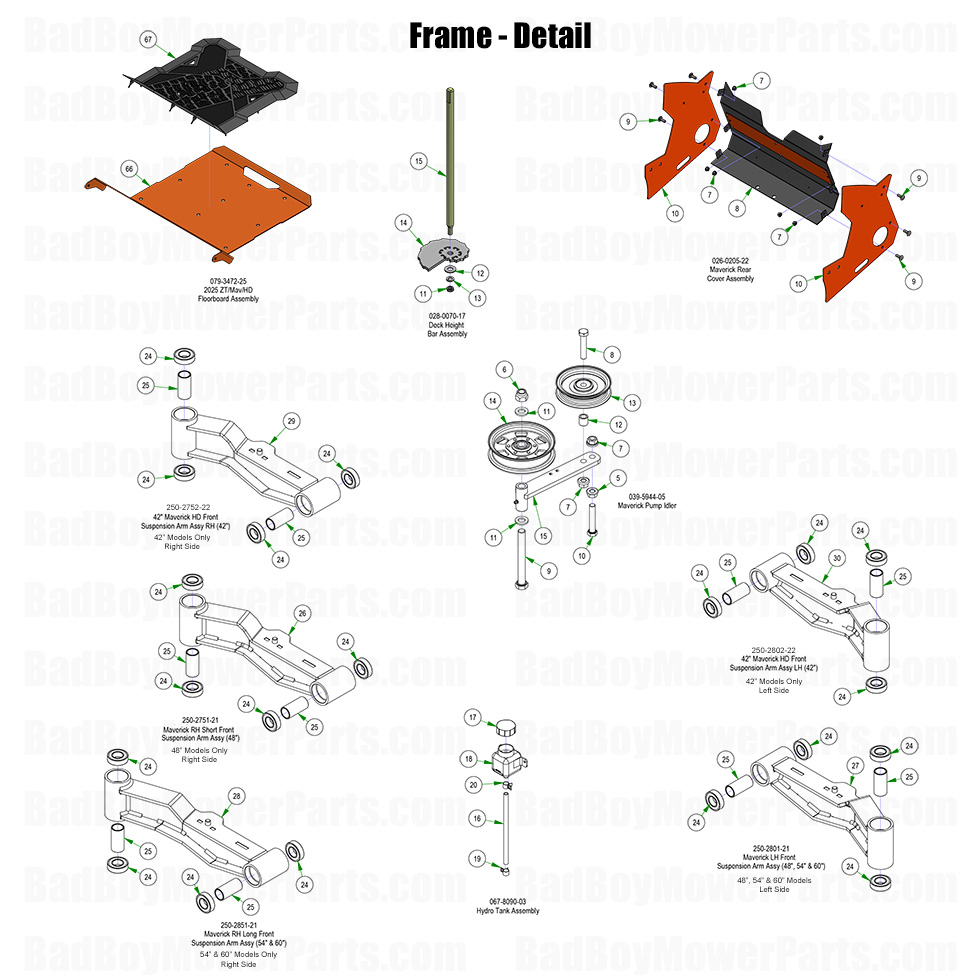

2025 Maverick HD - Frame - Detail

2025 Maverick HD - Frame - Detail

Every component in the Frame - Detail section of your 2025 Maverick HD plays a role in its durability and performance. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower parts to ensure your mower’s frame remains stable and intact. Our Bad Boy Mower part diagrams for 2025 Maverick HD help you locate brackets, bolts, and reinforcements quickly for hassle-free repairs. Over time, exposure to harsh mowing conditions can cause frame components to weaken, leading to vibration and reduced mower efficiency. Replacing worn frame parts helps prevent further damage and extends the lifespan of your machine. We carry fast-moving parts to minimize downtime, and with Free Shipping On Orders Over $100, you get premium replacements without extra shipping fees. Keep your Maverick HD structurally sound—order Frame - Detail parts today and maintain its rugged durability.

Bad Boy Mower Parts Lookup

2025 Maverick HD - Frame - Detail
  Position Number SKU Product Title Price
5 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
6 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
7 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
7 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8 014-5300-00 014-5300-00 - 2021-2022 Maverick Rear Cover Assembly
$222.99
8 018-0015-00 018-0015-00 - 1/2-13 x 2 1/2 Hex Bolt
$2.99
9 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
9 018-6016-00 018-6016-00 - 5/8 x 5 1/2 Bolt
$2.99
10 026-0226-00 026-0226-00 Rear Cover Side Plate - Painted
$42.79
10 018-6036-00 018-6036-00 - 1/2-13 X 2-3/4 Bolt Zinc
$2.99
11 013-6051-00 013-6051-00 - 3/8-24 Hex Jam Nut Zinc
$2.99
11 019-6017-00 019-6017-00 -.630 ID X 1.122 OD X.142 THK Flat Washer Nylon
$2.99
12 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
12 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
13 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
14 026-1100-00 026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster (See Models Used On For Detail)
$15.55
14 033-8000-00 033-8000-00 - 5 3/4 Pump Idler Pulley-5/8 Bore 2016-2025 Maverick
$35.48
15.1 039-5944-05 039-5944-05 - Pump Idler Bracket Assy-EZT
$70.97
15 028-0014-00 028-0014-00 - Deck Height Dial Rod (See Models Used For Detail)
$31.17
15 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
16 051-0016-00 051-0016-00 -ZT/ Maverick 10" Hydro Tank Hose
$9.61
17 066-5050-00 066-5050-00 - Hydraulic Tank Cap (See Models Used On For Details)
$15.60
18.1 067-8090-03 067-8090-03 - Hydro Tank Assembly
$42.46
18 067-8090-00 067-8090-00 - Hydraulic Expansion Tank (See Models Used On For Details)
$31.22
19 072-8065-00 072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS
$2.99
20 072-8066-00 072-8066-00 - 1/2" Hose Clamp
$2.99
24 010-1050-00 010-1050-00 - Front Fork Caster Bearing (See Models Used On For Details)
$18.39
25 025-0003-00 025-0003-00 - Front Bearing Spacer
$14.04
26.1 250-2751-21 250-2751-21 - 2021 Maverick RH Arm Assembly - Short
$199.99
26 250-2751-00 250-2751-00 - I-Beam Front Arm Short-RH--Painted
$129.99
27.1 250-2801-21 250-2801-21 - 2021 and Newer Maverick LH Front Suspension Arm Assy
$132.68
27 250-2801-00 250-2801-00 - I-Beam Front Arm-LH--Painted (See Models Used On For Details)
$93.64
28.1 250-2851-21 250-2851-21 - 2021 and Newer Maverick RH Long Front Suspension Arm Assy
$149.99
28 250-2851-00 250-2851-00 - I-Beam Front Arm Long-RH--Painted
$93.64
29.1 250-2752-22 250-2752-22 - 42" Maverick HD Front Suspension Arm Ass
$209.99
30.1 250-2802-22 250-2802-22 - 42" Maverick HD Front Suspension Arm Ass
$149.99
132 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
