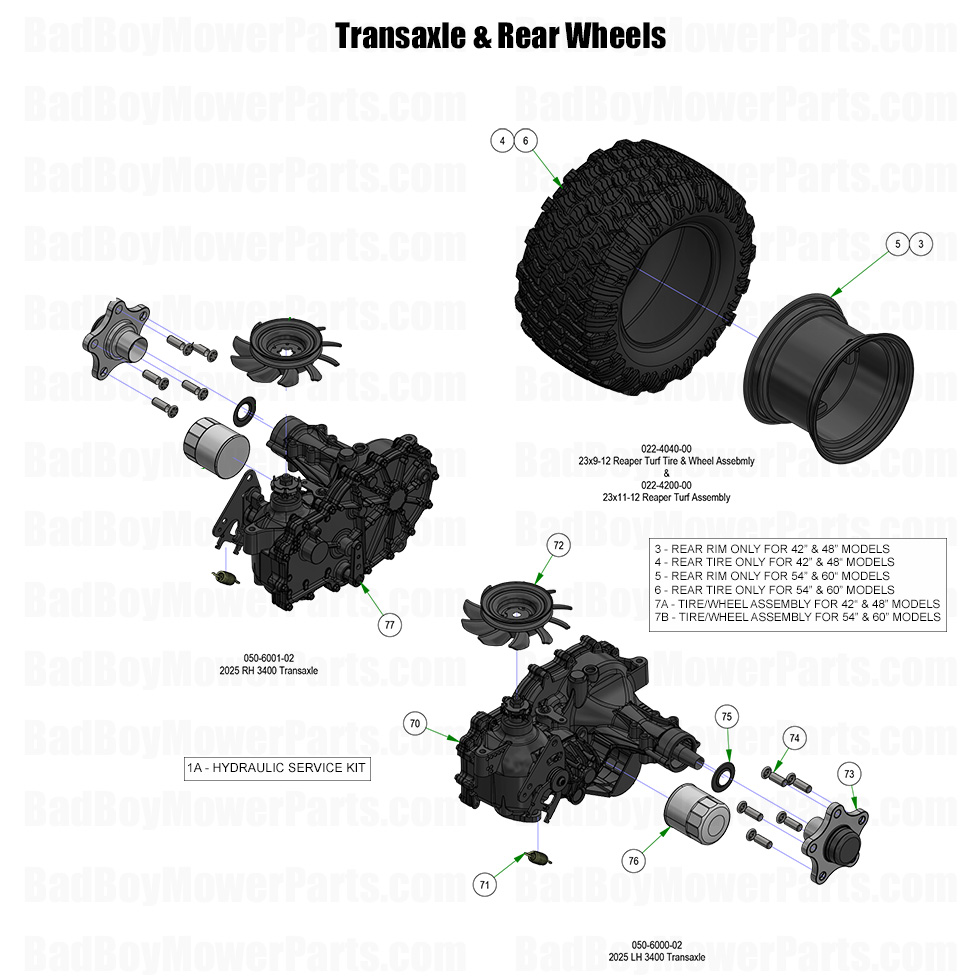

2025 Maverick HD - Transaxle & Rear Wheels

2025 Maverick HD - Transaxle & Rear Wheels

A reliable Transaxle & Rear Wheels system ensures stability and efficient power distribution in your 2025 Maverick HD. At BadBoyMowerParts.com, we stock high-quality Bad Boy Mower parts, including transaxle components, rear wheels, and mounting hardware. Our Bad Boy Mower part diagrams for 2025 Maverick HD make it easy to find the exact parts you need for quick repairs and upgrades. Worn rear wheels or a failing transaxle can reduce efficiency, making your mower harder to control. We carry fast-moving parts to minimize downtime, and with Free Shipping On Orders Over $100, maintaining your mower is more affordable than ever. Don’t let worn-out wheels or a faulty transaxle affect your mowing performance—order Transaxle & Rear Wheels parts today for a smoother ride and better efficiency.

Bad Boy Mower Parts Lookup

2025 Maverick HD - Transaxle & Rear Wheels
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
3 022-3011-00 022-3011-00 - 12x7" Black Wheel-48" EZT Only
$109.99
4 022-4035-00 022-4035-00 - 23x9 - 12 Reaper Turf Tire Only
$201.99
5 022-4070-00 022-4070-00 - Black Wheel 12x8.5 (See Models Used On for Detail)
$141.99
6 022-4195-00 022-4195-00 - 23x11-12 Reaper Turf Tire
$255.99
7A 022-4040-00 022-4040-00 - 23x9-12 Reaper Turf (See Models Used On for Details)
$329.99
7B 022-4200-00 022-4200-00 - 23x11-12 Reaper Tire/Wheel Assembly (See Models Used On For Details)
$320.99
70 050-6000-02 050-6000-02 - 2025 LH 3400 Transaxle
$819.99
71 034-9080-00 034-9080-00 - Gold Transaxle Spring
$14.89
72 050-2072-00 050-2072-00 - Fan/Pulley Kit
$63.96
73 050-2077-00 050-2077-00 - 5 Bolt Hub Kit (See Models Used On For Details)
$102.71
74 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61

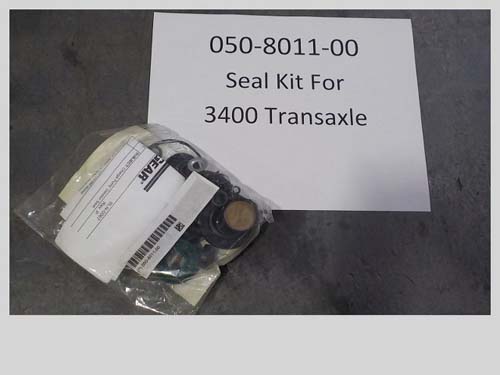

75 050-8011-00 050-8011-00 - Seal Kit for 3400 Transaxle
$109.99
76 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
77 050-6001-02 050-6001-02 - ZT3400 Transaxle Right
$819.99
