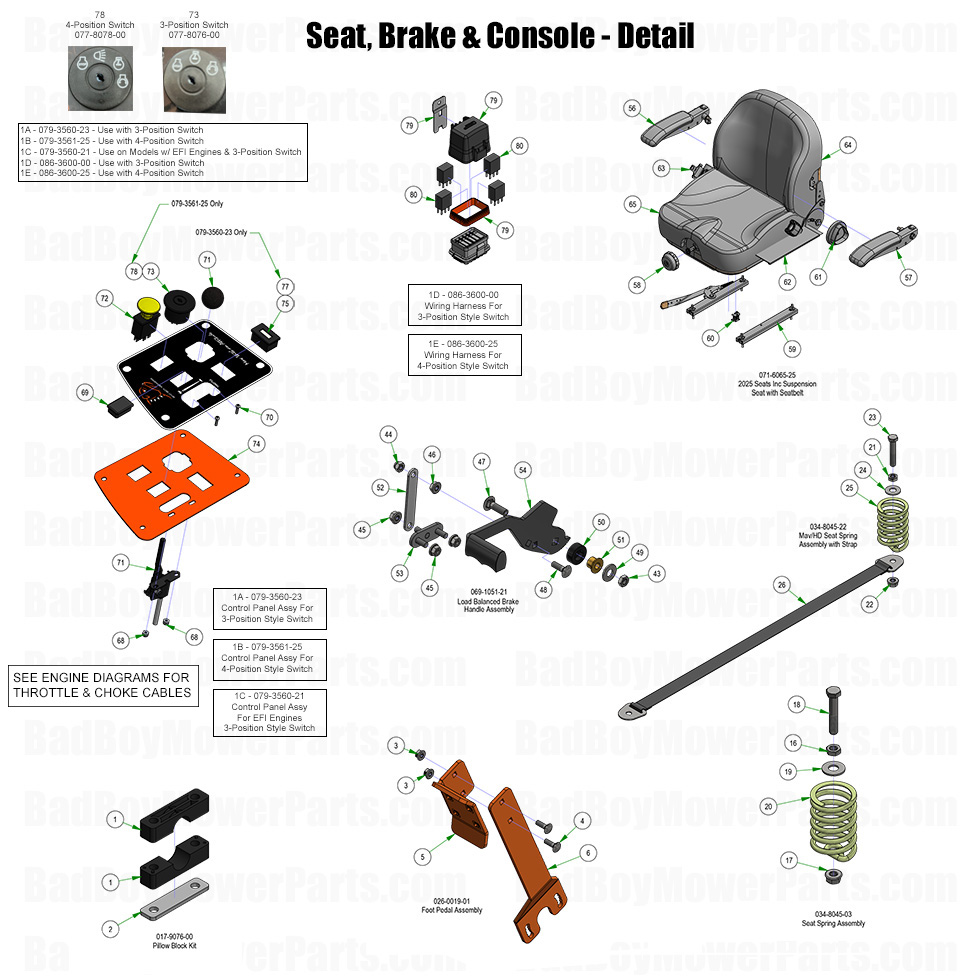

2025 Maverick HD - Seat, Brake & Console - Detail

2025 Maverick HD - Seat, Brake & Console - Detail

Your Seat, Brake & Console - Detail components contribute to both comfort and safety while operating your 2025 Maverick HD. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower parts to ensure your seat, brake system, and control console are in top condition. Our Bad Boy Mower part diagrams for 2025 Maverick HD help you find everything from seat cushions to brake levers and control switches. A worn-out seat can lead to discomfort during long mowing sessions, while faulty brake components can be a safety hazard. Regular maintenance of these parts enhances both convenience and security. We stock fast-moving parts for immediate repairs, and with Free Shipping On Orders Over $100, keeping your mower’s controls and seating in excellent condition is hassle-free. Upgrade or replace your Seat, Brake & Console - Detail components today for a better mowing experience.

Bad Boy Mower Parts Lookup

2025 Maverick HD - Seat, Brake & Console - Detail
  Position Number SKU Product Title Price
1.1 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
1D 086-3600-00 086-3600-00 - Wiring Harness With Clips (See Models Used On For Details)
$299.99
1 017-9077-00 017-9077-00 - Pillow Block-Male
$21.28
2 017-9079-00 017-9079-00 - Pillow Block-Metal Plate
$21.28
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
6 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
16 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
17 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
18 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
19 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
20.1 034-8045-03 034-8045-03 - Seat Spring Assembly (See Models Used On For Detail)
$32.09
20 034-8045-00 034-8045-00 - Seat Spring
$20.49
26.1 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
26 064-8083-00 064-8083-00 Seat Strap w/Buckles
$24.60
43 013-0012-00 013-0012-00 - 3/8-16 Centerlock Half Nut
$3.29
44 013-8042-00 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
$2.99
46 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
47 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
50 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
51 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
52 039-0170-00 039-0170-00 - Brake Cable Extension Plate
$10.99
53 039-0171-00 039-0171-00 - Brake Load Balancer Weldment
$10.99
54 069-1051-00 069-1051-00 - Load Balanced Brake Handle With Grip
$64.19
56 071-6065-11 071-6065-11 RH Armrest-Selfskin Front Adj. for 071-6065-22
$119.99
57 071-6065-12 071-6065-12 - LH Armrest-Selfskin Front Adj. for 071-6065-22
$119.99
58 071-6065-05 071-6065-05 - Weight Adjustment Knob for 071-6065-00
$32.09
59 071-6065-06 071-6065-06 - Tracks for 071-6065-00 (See Models Used On For Details)
$99.37
61 071-6065-10 071-6065-10 - Recliner Adjustment Knob
$32.09
62 071-6065-13 071-6065-13 Bellows w/Hardware for 071-6065-22
$64.19
63 071-6065-14 071-6065-14 - 2" Retractable Belt Kit w/Spacers for 07
$119.99
64.1 071-6065-25 071-6065-25 - 2025 Seats Inc Suspension Seat With Seat
$829.99
65 071-6065-18 071-6065-18 - Cushion Cover for 071-6065-25
$199.99
68 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
69 018-1040-00 018-1040-00 - Light Plug
$2.99
70 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
72 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
73 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
74 079-3461-00 079-3461-00 - Control Panel--Orange
$23.53
75 083-4050-00 083-4050-00 - Tachometer For Briggs/Kohler/Yamaha EFI Units (See Models Used On For Details)
$80.24
77 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
78 077-8078-00 077-8078-00 - 4-Way Key Switch
$11.76
79 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
80 086-1202-19 086-1202-19 - Relay Terminal
$24.97
