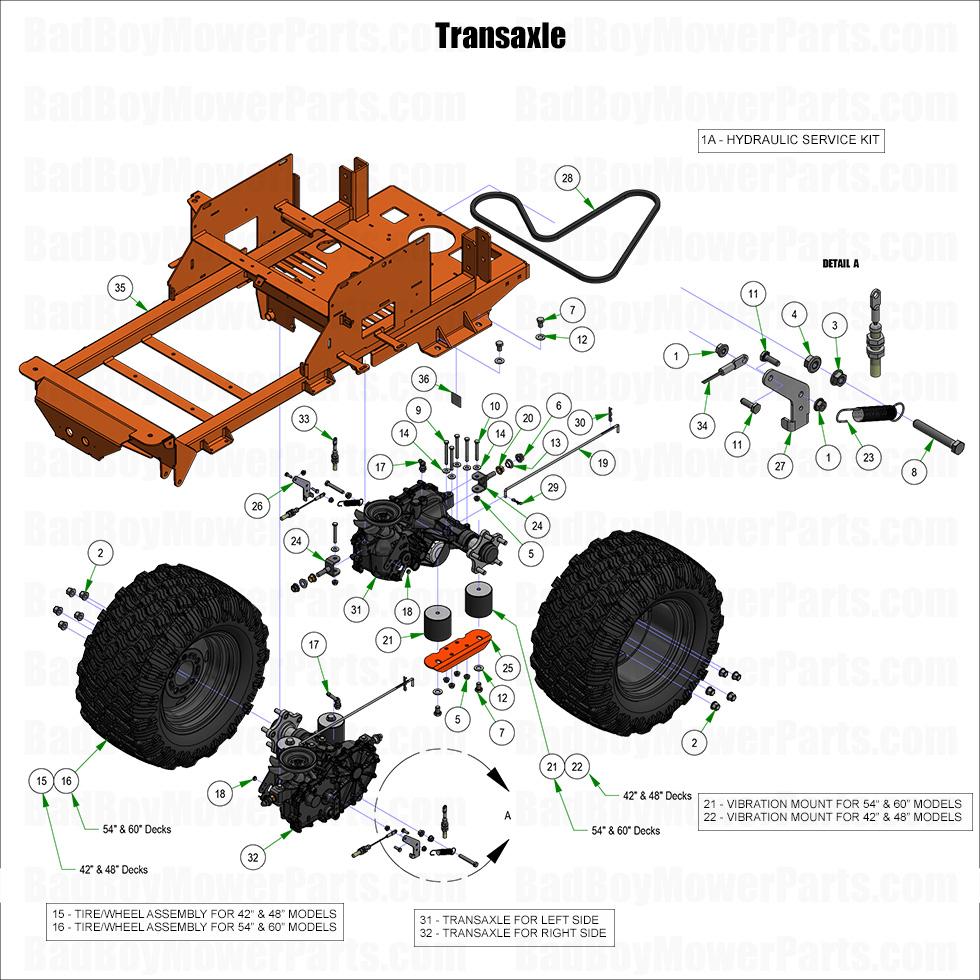

2025 Maverick HD - Transaxle

2025 Maverick HD - Transaxle

The Transaxle in your 2025 Maverick HD ensures efficient power transfer and smooth movement across all terrains. At BadBoyMowerParts.com, we provide durable Bad Boy Mower parts to keep your transaxle in top condition. Whether you need seals, bearings, or complete transaxle replacements, our Bad Boy Mower part diagrams for 2025 Maverick HD make finding the right components easy. A failing transaxle can lead to poor traction, uneven mowing, and inefficient power distribution. We stock fast-moving parts for quick repairs and offer Free Shipping On Orders Over $100, so you can maintain your mower without extra costs. Don’t let transmission issues slow you down—order Transaxle replacement parts today and keep your Maverick HD running smoothly for years to come.

Bad Boy Mower Parts Lookup

2025 Maverick HD - Transaxle
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 013-2050-00 013-2050-00 - 1/4-20 Nylon Insert Flange Nut
$2.99
2 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
3 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
4 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
8 018-2071-00 018-2071-00 - 3/8 x 2 1/2 Hex Tap Bolt - Ful l Thread - ACS
$2.99
9 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
10 018-5344-00 018-5344-00 - 5/16 x 2 1/2 Bolt
$2.99
11 018-8052-00 018-8052-00 - 1/4-20 X 3/4 Hex Bolt
$2.99
12 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
13 019-8027-00 019-8027-00 -.515 ID Plastic Shoulder Washer
$2.99
14 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
15 022-4040-00 022-4040-00 - 23x9-12 Reaper Turf (See Models Used On for Details)
$329.99
16 022-4200-00 022-4200-00 - 23x11-12 Reaper Tire/Wheel Assembly (See Models Used On For Details)
$320.99
17 024-1200-00 024-1200-00 - Fitting, 3/8 x 3/8 45 Degree, 4603-6-6 (See Models Used On For Details)
$19.93
18 025-0036-00 025-0036-00 - Drive Arm Transaxle Spacer
$5.49
19 028-0070-00 028-0070-00 - Neutral Rod
$12.48
20 032-5052-00 032-5052-00 - Bronze Bushing
$4.81
21 032-9000-00 032-9000-00 - Isolator - Green Dot
$70.97
22 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
23 034-1026-00 034-1026-00 - Brake Return Spring (See Models Used On For Details)
$14.19
24 039-0001-00 039-0001-00 - Rear Transaxle Pivot Bracket
$15.60
25 039-1306-00 039-1306-00 - EZT Rear Susp Transaxle Mount
$15.60
26 039-1320-00 039-1320-00 - Brake Arm Extension Bracket [Maverick LH]
$6.04
27 039-1321-00 039-1321-00 - Brake Arm Ext Bracket Right Side
$8.01
28 041-7400-00 041-7400-00 - Pump Belt for Maverick and Maverick HD
$64.19
29 044-2004-00 044-2004-00 - Bow Pin
$2.99
30 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
31 050-6000-02 050-6000-02 - 2025 LH 3400 Transaxle
$819.99
32 050-6001-02 050-6001-02 - ZT3400 Transaxle Right
$819.99
33 064-3050-21 064-3050-21 - 2021-2025 Load Balanced Brake Cable 1
$56.77
34 064-3051-21 064-3051-21 - 2021-2025 Load Balanced Brake Cable 2
$56.77
