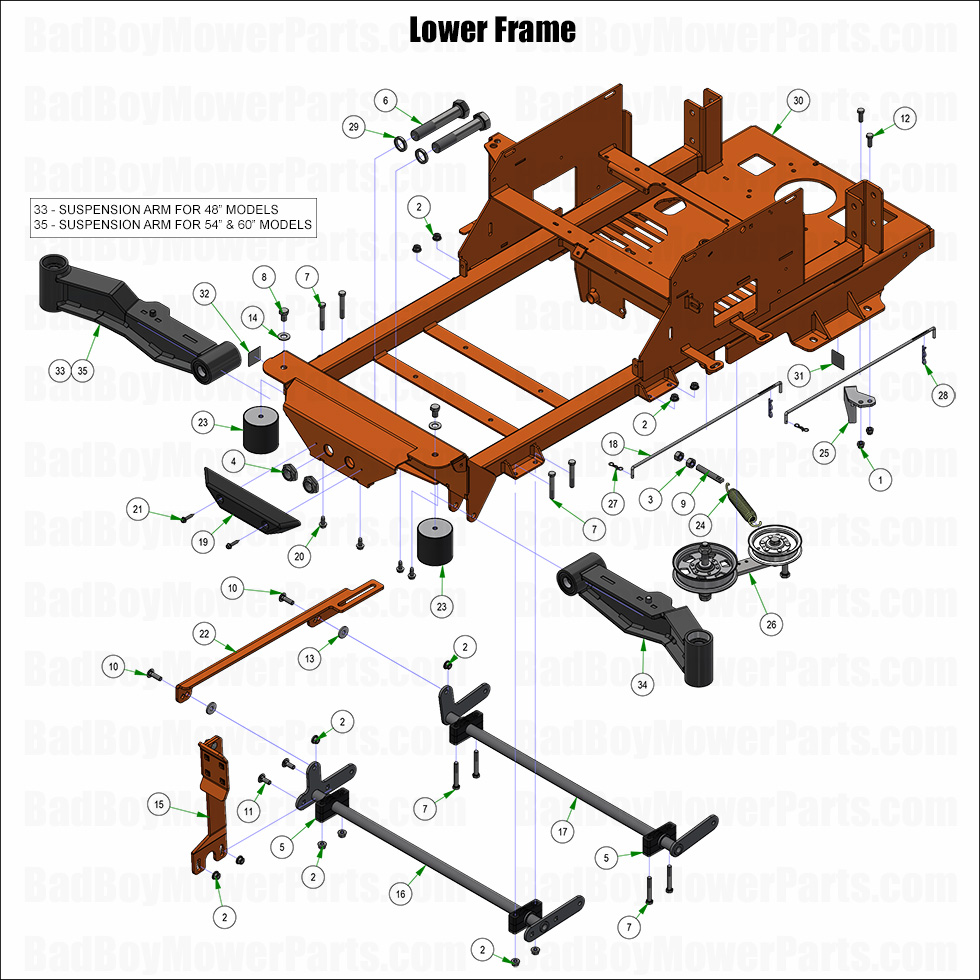

2025 Maverick - Lower Frame Assembly

2025 Maverick - Lower Frame Assembly

The Lower Frame Assembly provides structural integrity and stability to your 2025 Maverick, ensuring durability for heavy-duty mowing. At BadBoyMowerParts.com, we supply high-quality Bad Boy Mower parts to keep your frame secure and long-lasting. Whether you need new brackets, bolts, or support plates, our Bad Boy Mower part diagrams for 2025 Maverick make finding the right components effortless. A damaged lower frame can compromise the overall performance of your mower, making timely replacements crucial. Our fast-moving parts selection ensures that you receive the necessary components quickly, and with Free Shipping On Orders Over $100, maintaining your mower is even more convenient. Don’t let structural issues weaken your machine—order today and keep your Lower Frame Assembly strong and reliable for seasons to come.

Bad Boy Mower Parts Lookup

2025 Maverick - Lower Frame Assembly
  Position Number SKU Product Title Price
1 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
4 013-9004-00 013-9004-00 - 1" Nylock Nut 1/2 Nut - Fine Thread
$3.62
5 017-9076-00 017-9076-00 - Pillow Block Assembly
$23.41
6 018-0026-00 018-0026-00 - 1-14 X 5 1/2 BOLT GR 8
$13.90
7 018-0028-00 018-0028-00 - 3/8x2 1/2" Hex Bolt
$4.39
8 018-1055-00 018-1055-00 - 1/2 x 3/4 Bolt
$2.99
9 018-2004-50 018-2004-50 - All Thread (See Models Used On For Details)
$12.94
10 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
11 018-5044-00 018-5044-00 - 3/8 x 1 Carriage Bolt
$2.99
12 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
13 019-2073-00 019-2073-00 -.390 ID Plastic Washer
$2.99
14 019-5702-00 019-5702-00 - 1/2 SAE Flat Washer GR 8
$2.99
15 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
16 028-0002-00 028-0002-00 - Actuator Bar-Front (See Models Used On For Detail)
$78.08
17 028-0003-00 028-0003-00 - Actuator Bar-Rear (See Models Used On For Detail)
$78.08
18 028-0070-00 028-0070-00 - Neutral Rod
$12.48
19 029-7040-00 029-7040-00 - EZT Front Bumper (See Models Used On For Detail)
$31.17
20 030-7042-00 030-7042-00 - 5/16 x 3/4 Hex Washer Type F Thread Cutting Screw
$2.99
21 030-7047-00 030-7047-00 - 1/4-14 x 1 1/4 HWA Unslot Tek Screw
$2.99
22 031-0510-00 031-0510-00 - Actuator Linkage (See Models Used On For Details)
$46.84
23 032-9002-00 032-9002-00 - Isolator - Red Dot
$70.97
24 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
25 039-0267-00 039-0267-00-ZT Clutch Bracket-Plated
$21.39
26 039-5944-05 039-5944-05 - Pump Idler Bracket Assy-EZT
$70.97
27 044-2004-00 044-2004-00 - Bow Pin
$2.99
28 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
29 058-1000-00 058-1000-00 - MZ Bar Stop
$6.41
32 091-8002-00 091-8002-00 - Independently Articulating Front Susp. Arms Patent Decal
$5.49
33 250-2751-21 250-2751-21 - 2021 Maverick RH Arm Assembly - Short
$199.99
34 250-2801-21 250-2801-21 - 2021 and Newer Maverick LH Front Suspension Arm Assy
$132.68
35 250-2851-21 250-2851-21 - 2021 and Newer Maverick RH Long Front Suspension Arm Assy
$149.99
