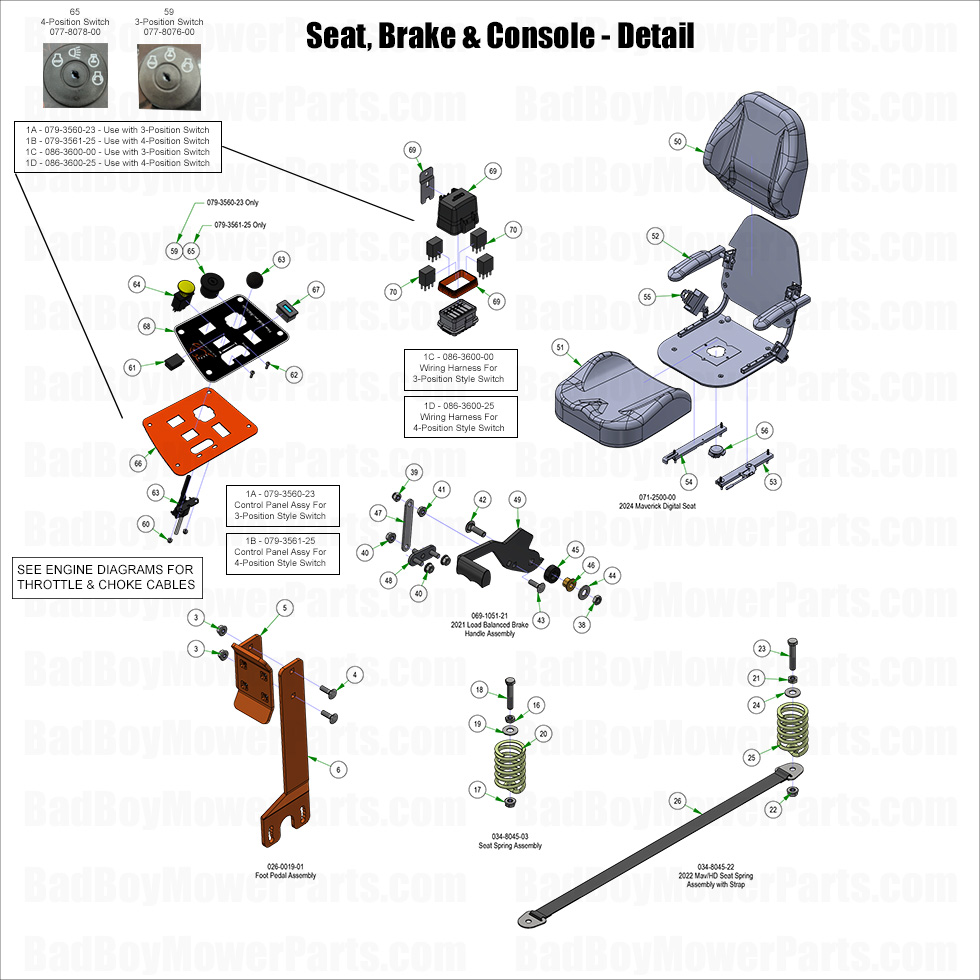

2025 Maverick - Seat, Brake & Console - Detail

2025 Maverick - Seat, Brake & Console - Detail

The Seat, Brake & Console - Detail components ensure comfort, safety, and easy control of your 2025 Maverick. At BadBoyMowerParts.com, we carry top-quality Bad Boy Mower parts for everything from seat hardware to brake pedals and control panels. Our Bad Boy Mower part diagrams for 2025 Maverick make it simple to find the right replacement parts for seamless operation. A properly functioning brake system is crucial for safety, while a comfortable seat and an intact console ensure ease of use. We keep fast-moving parts in stock for quick shipping, and with Free Shipping On Orders Over $100, you can maintain your mower without extra costs. Don’t overlook the importance of these essential components—shop now for Seat, Brake & Console - Detail parts and keep your Maverick running smoothly and safely.

Bad Boy Mower Parts Lookup

2025 Maverick - Seat, Brake & Console - Detail
  Position Number SKU Product Title Price
1C 086-3600-00 086-3600-00 - Wiring Harness With Clips (See Models Used On For Details)
$299.99
3 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
4 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
5 026-0019-00 026-0019-00 - Shallow Foot Pedal (See Models Used On For Detail)
$31.22
6.1 026-0019-01 026-0019-01 - Foot Pedal Assembly (See Models Used On For Details)
$93.69
6 031-0500-00 031-0500-00 - 2017-2024 Deck Pedal Lever (See Models Used On For Detail)
$31.22
16 013-0017-00 013-0017-00 - 3/8-16 Half Jam Nut
$2.99
17 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
18 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
19 019-5029-00 019-5029-00 - 3/8 USS Flat Washer Zinc
$2.99
20.1 034-8045-00 034-8045-00 - Seat Spring
$20.49
26.1 034-8045-22 034-8045-22 - 2022 Mav/HD seat spring assembly with st
$32.09
26 064-8083-00 064-8083-00 Seat Strap w/Buckles
$24.60

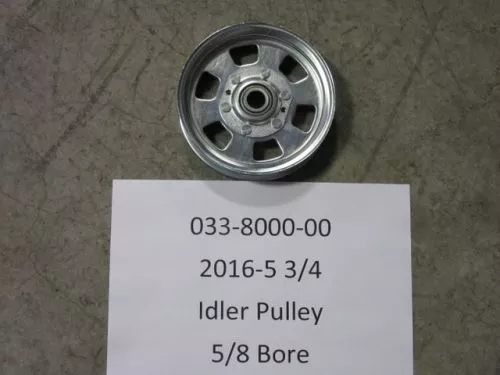

36 033-8000-00 033-8000-00 - 5 3/4 Pump Idler Pulley-5/8 Bore 2016-2025 Maverick
$35.48
39 013-8042-00 013-8042-00 - 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
$2.99
41 013-9002-00 013-9002-00 - 5/16-18 Hex Flange Nuts Zinc w /Serrations
$2.99
42 018-5043-00 018-5043-00 - 3/8-16 X 1-1/4 Carriage Bolt
$2.99
45 025-0001-00 025-0001-00 - Brake Lever Spacer (See Models Used On For Detail)
$8.01
46 032-5053-00 032-5053-00 - Bronze Bushing SF-1220-8 2013 & UP CZT/ZT Brake Bushing
$2.99
47 039-0170-00 039-0170-00 - Brake Cable Extension Plate
$10.99
48 039-0171-00 039-0171-00 - Brake Load Balancer Weldment
$10.99
49.1 069-1051-21 069-1051-21 - Load Balanced Brake Handle Assembly
$70.97
49 069-1051-00 069-1051-00 - Load Balanced Brake Handle With Grip
$64.19
50 071-2500-01 071-2500-01 - Back Cover 2024 Maverick Digital Seat
$106.99
51.1 071-2500-00 071-2500-00 - Maverick Digital Seat
$599.99
51 071-2500-02 071-2500-02 - Seat Cover 2024 Maverick Digital Seat
$106.99
52 071-2500-03 071-2500-03 - Extended Pin (Poly Pad) Arms Pair 2024 M
$129.99
55 071-2500-06 071-2500-06 - Seat Belt Assembly for 2024 Maverick Dig
$119.99
56 071-8061-00 071-8061-00 - Seat Switch (See Models Used On For Detail)
$19.14
59 077-8076-00 077-8076-00 - 3-Position Ignition Switch (key not included)
$21.39
60 013-5019-00 013-5019-00 - 10-24 Nylon Insert Locknut Zinc
$2.99
61 018-1040-00 018-1040-00 - Light Plug
$2.99
62 018-5200-00 018-5200-00 - 10-24 X 5/8 BS C/S 18-8 SS
$2.99
63 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
64 056-8058-00 056-8058-00 - PTO Engager-Switch for Blades
$34.29
65 077-8078-00 077-8078-00 - 4-Way Key Switch
$11.76
66 079-3461-00 079-3461-00 - Control Panel--Orange
$23.53
67 083-4013-00 083-4013-00 - Tachometer-N211-0100-1003
$74.89
68 091-4072-00 091-4072-00 - Control Panel Decal
$9.89
69 086-1202-01 086-1202-01 - 2019-2024 Relay Cap Kit
$18.45
70 086-1202-19 086-1202-19 - Relay Terminal
$24.97
