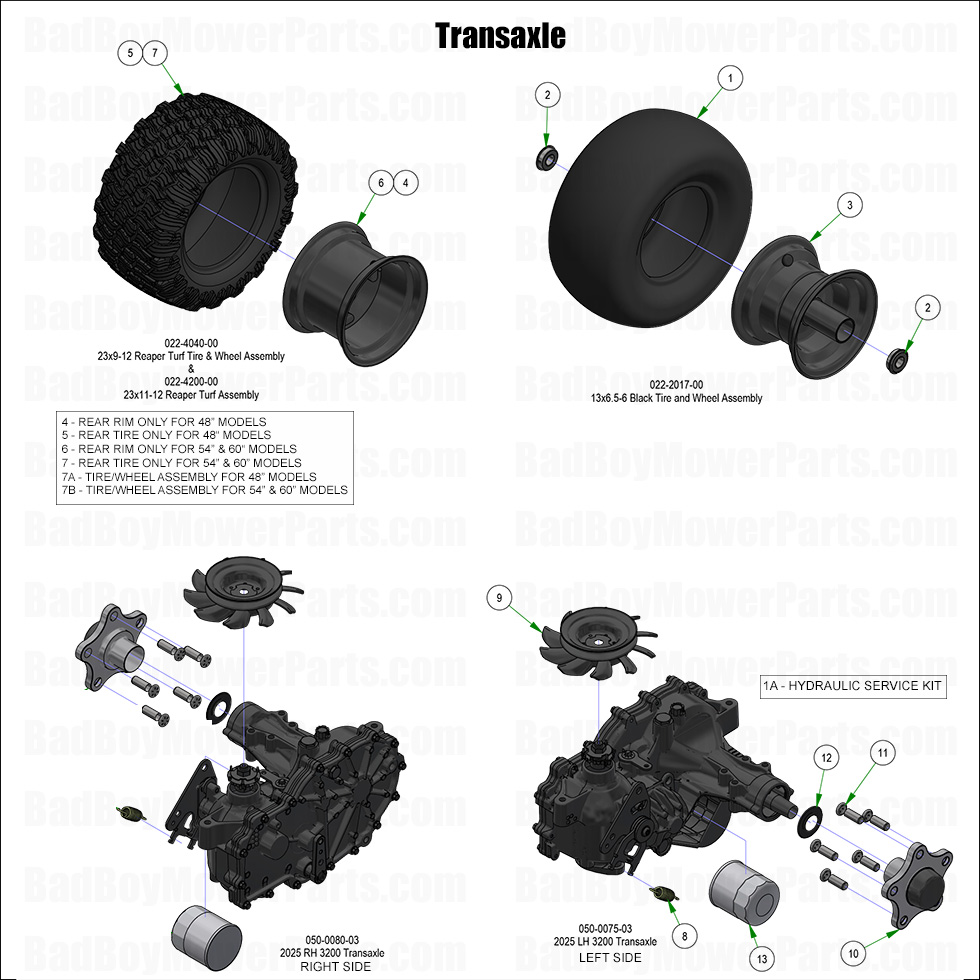

2025 Maverick - Wheel Assembly & Transaxle

2025 Maverick - Wheel Assembly & Transaxle

Find the parts for your 2025 Maverick at BadBoyMowerParts.com. We have the Wheel Assembly parts and all the Bad Boy Mower parts you need.

Bad Boy Mower Parts Lookup

2025 Maverick - Wheel Assembly & Transaxle
  Position Number SKU Product Title Price
1A 085-4051-01 085-4051-01 - Hydro Service Kit for 2021 & Newer ZT Avenger, ZT Elite & Maverick Models (Without Expansion Tanks)
$125.99
1 022-5347-00 022-5347-00 - 13 x 6.50 - 6 Tire
$96.29
2 022-7009-00 022-7009-00 - 1 3/8" Small Bore Bearing-Hoosier
$13.36
3 022-7007-00 022-7007-00 - 6 x 4.5 Black Wheel Small Bore (See Models Used On For Details)
$56.81
4 022-3011-00 022-3011-00 - 12x7" Black Wheel-48" EZT Only
$109.99
5 022-4035-00 022-4035-00 - 23x9 - 12 Reaper Turf Tire Only
$201.99
6 022-4070-00 022-4070-00 - Black Wheel 12x8.5 (See Models Used On for Detail)
$141.99
7A 022-4040-00 022-4040-00 - 23x9-12 Reaper Turf (See Models Used On for Details)
$329.99
7B 022-4200-00 022-4200-00 - 23x11-12 Reaper Tire/Wheel Assembly (See Models Used On For Details)
$320.99
7 022-4195-00 022-4195-00 - 23x11-12 Reaper Turf Tire
$255.99
9 050-2070-00 050-2070-00 - 2020 -2024 ZT Avenger/ ZT/Maverick Transaxle Fan/Pulley Kit
$85.17
10 050-2077-00 050-2077-00 - 5 Bolt Hub Kit (See Models Used On For Details)
$102.71
11 050-2012-00 050-2012-00 - Transaxle Wheel Studs/ Drum Brake Studs
$5.61
12 050-8010-00 050-8010-00 - ZT/Maverick Transaxle Seal Kit (ZT-2800)
$109.46
13 063-1050-00 063-1050-00 - ZT Hydraulic Filter
$22.71
022-2017-00 022-2017-00 - 13 x 6.50 - 6 Black Tire and Wheel Assembly
$94.15
050-0080-03 050-0080-03 - 2025 RH 3200 Transaxle Maverick
$799.99
050-0075-03 050-0075-03 - Maverick Transaxle Left
$799.99
