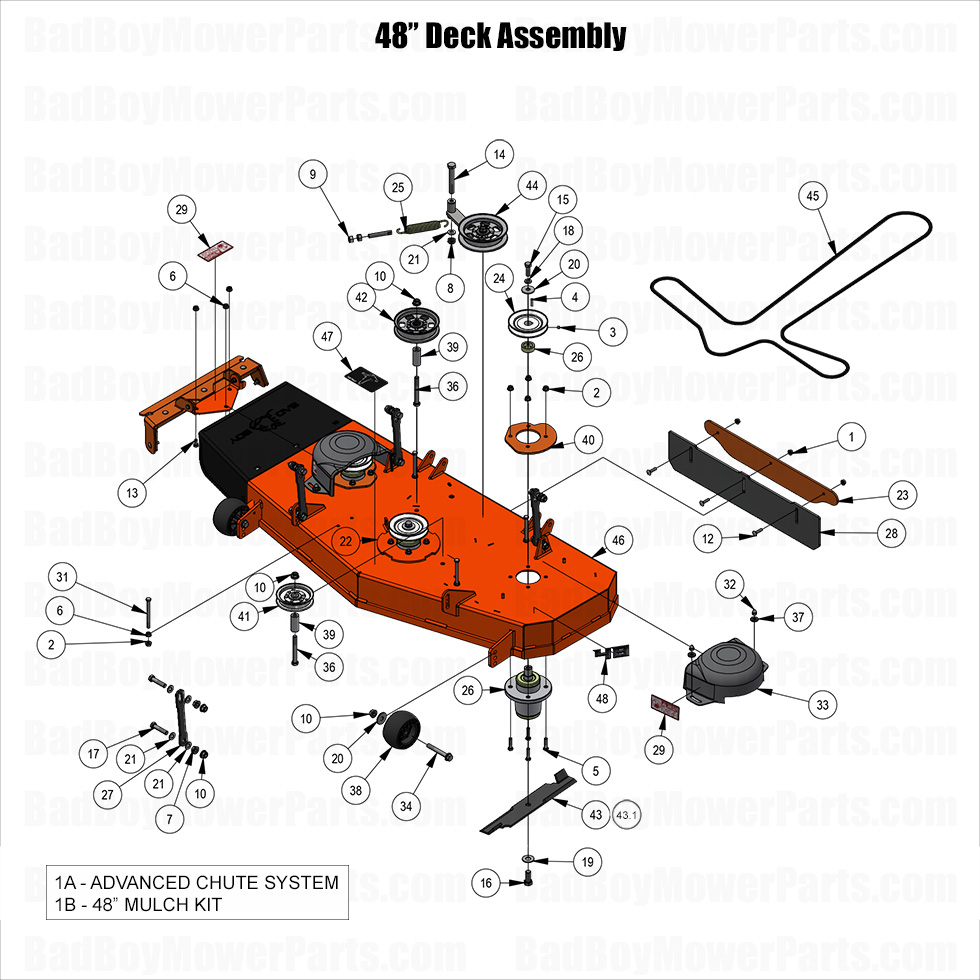

2025 Raider - 48" Deck Assembly

2025 Raider - 48" Deck Assembly

The 2025 Raider 48" Deck Assembly is built for durability, but regular maintenance is essential for long-lasting performance. At BadBoyMowerParts.com, we provide high-quality Bad Boy Mower Parts to keep your deck in top shape. Whether you need new blades, belts, or spindles, our Bad Boy Lawn Mower Parts selection has the right components for fast and easy repairs. Our Bad Boy Mower Part diagrams make it simple to find and order the correct replacement parts, ensuring your deck functions optimally. A properly maintained deck results in smoother cuts, reduced vibration, and increased mower efficiency. We stock Bad Boy Parts Online for fast ordering and quick delivery. Plus, take advantage of Free Shipping On Orders Over $100, making it more convenient to keep your deck in excellent condition. Don't let worn-out parts affect your mowing—shop for 2025 Raider 48" Deck Assembly replacements today.

Bad Boy Mower Parts Lookup

2025 Raider - 48" Deck Assembly
  Position Number SKU Product Title Price
1A 088-6050-00 088-6050-00 - Cable Advanced Chute System Assembly (See Models Used On For Detail)
$249.00
1B 210-0248-50 210-0248-50 - 2017- 2025 48" Mulch Kit w/Blades (Not for Avenger and MZ)
$318.45
1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
4 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
5 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
6 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
7 013-5300-00 013-5300-00 - 1/2-13 Hex Fange Nuts Zinc w/ Serrations
$2.99
8 013-5301-00 013-5301-00 - 5/8-11 Nylon Insert Jam Locknut Zinc
$2.99
9 013-7018-00 013-7018-00 - 1/2-13 Hex Nuts Zinc
$2.99
10 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
12 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
13 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
14 018-5311-00 018-5311-00 - 5/8-11 X 4" Hex Bolts Zinc
$4.06
15 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
16 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
17 018-6037-00 018-6037-00 - 1/2-13 X 2-1/4 Hex Bolt
$2.99
18 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
19 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
20 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
21 019-8054-00 019-8054-00 -.505 ID X 1 OD X.128 THK Flat Washer Nylon
$2.99
23 026-0307-00 026-0307-00 - 2023 4' & 5' Striping Kit Plate-Painted
$10.99
24 033-6003-00 033-6003-00 - 5" Spindle Deck Pulley - DB-80 (without set screw) (See Models Used On For Details)
$42.58
25 034-2020-00 034-2020-00 - Idler Spring (See Models Used On For Detail)
$17.11
26 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
28 084-5005-00 084-5005-00 - 2023 MZ Stripe Kit Rubber
$56.77
29 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
31 018-2005-00 018-2005-00 - 3/8-16 X 4-1/4 Hex Bolt
$2.99
32 013-0004-00 013-0004-00 - Acorn Nut-Pulley Cover
$3.29
33 014-4000-00 014-4000-00 - Pulley Cover (See Models Used On For Details)
$28.39
34 018-0010-00 018-0010-00 - Deck Wheel Bolt
$6.48
36 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
37 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
38 022-1000-00 022-1000-00 - Deck Wheel Only
$17.11
39 025-0032-00 025-0032-00 - Stationary Idler Spacer (See Models Used On For Details)
$8.46
40 026-0024-00 026-0024-00 - 42 & 48 Deck Spindle Support Plate
$14.19
41 033-6001-00 033-6001-00 - 4 3/4 Idler Pulley (See Models Used On For Details)
$31.22
42 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
43.1 038-5000-00 038-5000-00 - 48"/50" Gator Mulching Blade
$22.99
43 038-5350-00 038-5350-00 - 48"/50" High Lift Fusion Blade
$22.99
44 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
45 041-0120-00 041-0120-00 - Deck Belt (See Models Used On For More Details - Not for 54" MZ)
$88.80
46 060-2318-00 060-2318-00 - 2023 48" Walk Behind Deck--Painted
$1399.99
47 091-0393-00 091-0393-00 - 48"/ 42" Deck Route Decal (See Models Used On for Details)
$11.76
48 091-0503-00 091-0503-00 - MY24 48" Deck Decal
$10.99
