2025 Raider - Engine - Kawasaki

2025 Raider - Engine - Kawasaki

The 2025 Raider Engine - Kawasaki delivers exceptional power and efficiency, but regular maintenance with high-quality Bad Boy Mower Parts is essential for long-term performance. At BadBoyMowerParts.com, we offer genuine Bad Boy Lawn Mower Parts, including air filters, spark plugs, fuel pumps, and ignition components. Our Bad Boy Mower Part diagrams make finding the correct Kawasaki engine parts fast and simple. Routine engine maintenance ensures better fuel efficiency, smoother operation, and reduced downtime. We stock Bad Boy Parts Online, so you can order with confidence and receive fast shipping. Keeping your Kawasaki engine in peak condition helps prevent costly repairs and extends the lifespan of your mower. Plus, with Free Shipping On Orders Over $100, maintaining your engine is more affordable than ever. Don’t wait for engine issues—order 2025 Raider Engine - Kawasaki parts today and keep your mower running at maximum performance.

Bad Boy Mower Parts Lookup

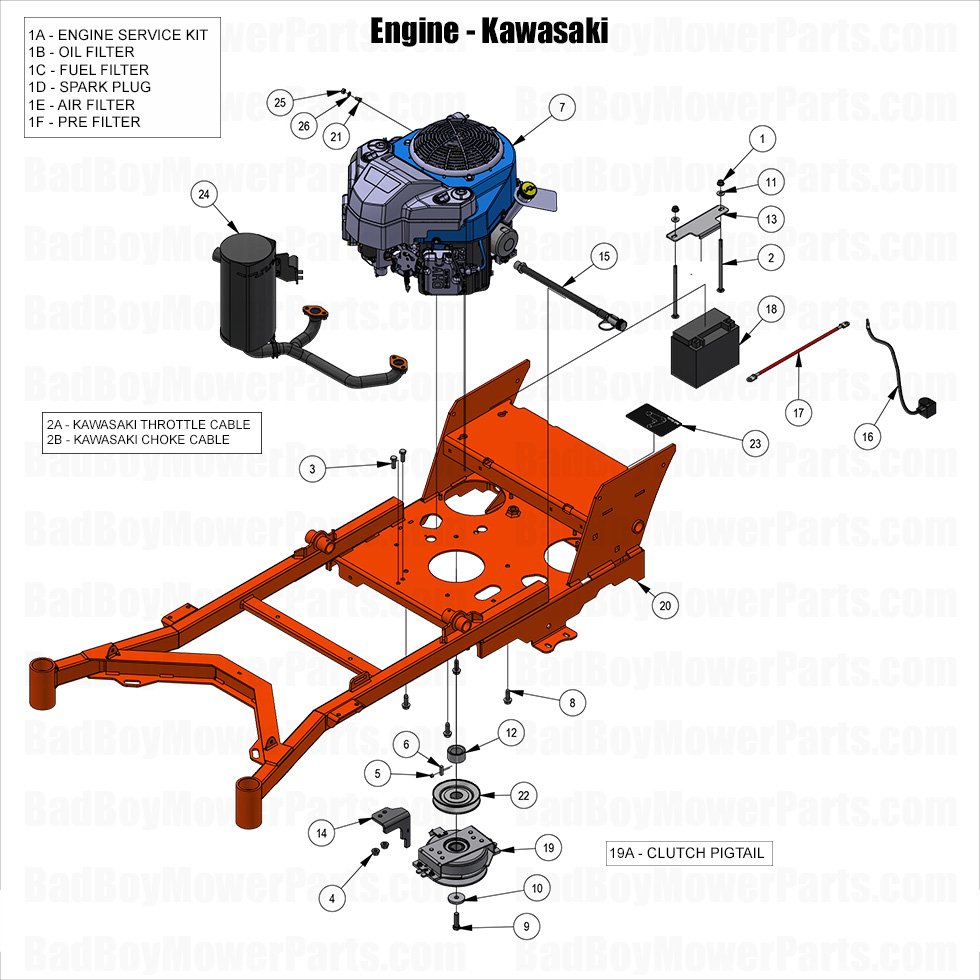

2025 Raider - Engine - Kawasaki
  Position Number SKU Product Title Price
1A 063-2000-01 063-2000-01 - Kawasaki FR & FS Service Kit
$88.25
1B 063-2096-00 063-2096-00 - Oil Filter for Kawasaki FR/FS/FX691/FX730/FX751
$28.88
1C 063-6000-00 063-6000-00 - Universal Inline Fuel Filter
$14.19
1D 015-8001-00 015-8001-00 - Spark Plug-Kawasaki (NGK or Equivalent) - Not For FX781, FX820 or FX1000
$8.79
1E 063-2097-00 063-2097-00 - 22-26 Kaw Air Filter FR Engine
$25.67
1F 063-2098-00 063-2098-00 - Kawasaki Pre Cleaner for 063-2097-00 Filter
$8.24
1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
2A 055-8020-00 055-8020-00 - Throttle Cable-53" (See Models Used On For Details)
$38.97
2B 054-8017-00 054-8017-00 - 62" Choke Cable (See Models Used On - Engine Diagrams To Verify This Fits your Mower)
$25.80
2 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
3 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
4 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
5 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
6 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
7 015-0087-00 015-0087-00 - Kawasaki 18.5HP FS600 Electric Start
$3099.00
8 018-1075-00 018-1075-00 - 3/8 x 1 1/8 Engine Mounting Bolt
$2.99
9 018-5450-21 018-5450-21 - 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch
$2.99
10 019-0010-00 019-0010-00 - 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
$5.93
11 019-7040-00 019-7040-00 - 1/4 USS Flat Washer Zinc
$2.99
12 025-5032-00 025-5032-00 - 1.130 ID X 1.75 OD X 1" Countersunk Zinc Spacer
$12.83
13 026-0098-00 026-0098-00 - Battery Hold Down Plate
$17.02
15 051-5404-00 051-5404-00 - Kawasaki Oil Drain (See Models Used On For Details)
$42.58
16 064-0030-00 064-0030-00 - 24 inch Black Battery Cable
$18.72
17 064-5301-00 064-5301-00 - 12" Red Battery Cable
$17.16
19A 070-2000-00 070-2000-00 - Clutch Pigtail
$21.24
19 070-0056-00 070-0056-00 - PTO Clutch (See Models Used On For Details)
$364.84
22 033-5034-00 033-5034-00 - 4 3/4 Motor Pulley - DB74-601 Comes with set screw only. Keyway IS NOT included. (See Models Used On For Details)
$35.48
23 091-0418-00 091-0418-00 - 2017-2024 Walk Behind 36" Deck Belt Route
$4.37
24 015-0543-00 015-0543-00 - Exhaust Assembly 2018-2023 Kawasaki Walk Behind
$219.99
26 019-4008-00 019-4008-00 - 1/4 Lockwasher Zinc
$2.99
