2025 Raider - Spindle Assembly & Deck Idler

2025 Raider - Spindle Assembly & Deck Idler

The 2025 Raider Spindle Assembly & Deck Idler is essential for ensuring even cutting and consistent deck performance. At BadBoyMowerParts.com, we offer high-quality Bad Boy Mower Parts to keep your cutting deck operating at peak efficiency. Our Bad Boy Lawn Mower Parts inventory includes spindles, bearings, pulleys, and idler arms to prevent belt slippage and maintain smooth operation. With our Bad Boy Mower Part diagrams, you can quickly locate and order the correct spindle and idler components. A worn-out spindle or faulty idler can cause vibration, uneven cuts, and excessive strain on your mower. We stock Bad Boy Parts Online for fast shipping and quick repairs. Plus, take advantage of Free Shipping On Orders Over $100, making it easy and affordable to maintain your mower’s cutting system. Keep your 2025 Raider Spindle Assembly & Deck Idler performing at its best—order today for optimal mowing results.

Bad Boy Mower Parts Lookup

2025 Raider - Spindle Assembly & Deck Idler
  Position Number SKU Product Title Price
2 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
8.1 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
9 037-4002-00 037-4002-00 - Spindle Spacer (See Models Used On For Details)
$7.28
10 037-9050-00 037-9050-00 - Collar Spacer - Top of Spindle (See Models Used On For Details)
$7.28
11 037-8002-00 037-8002-00 - Dust Cover (Used on 037-4000-00 & 037-6015-50)
$11.76
12 037-6026-00 037-6026-00 - Short Spindle Shaft - No Grooved Shaft
$83.77
13 037-6029-00 037-6029-00 - Spindle Bearing (See Models Used On For Details)
$42.58
14 018-7016-00 018-7016-00 - 1/2-13 X 3 Hex Bolts Zinc
$2.99

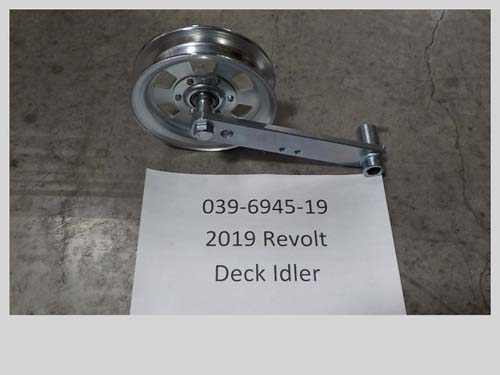

15.1 039-6945-19 039-6945-19 - Revolt Deck Idler Assembly
$70.97
15.1 039-6945-10 039-6945-10 - 36" Walkbehind Deck Idler Assembly
$106.99
15 039-6945-00 039-6945-00 - Idler Arm Bracket
$40.53
18 025-5203-00 025-5203-00 - Spacer 3/4" OD x 1/2" ID x 0.75"
$3.29
19 033-5000-00 033-5000-00 - 5 3/4" Double Bearing Flat Idler Pulley (See Description For Details)
$56.77
20 033-8050-00 033-8050-00 - 2017-2025 5" Split Idler Pulley-Tensioner Only
$35.48
21 025-5337-00 025-5337-00 -.502x.750x1.125 Length Spacer
$4.39
