2025 Raider - Transaxles

2025 Raider - Transaxles

The 2025 Raider Transaxles are critical for delivering smooth power transfer and precise maneuverability. At BadBoyMowerParts.com, we stock high-performance Bad Boy Mower Parts to keep your transaxle system functioning perfectly. Our Bad Boy Lawn Mower Parts inventory includes gears, seals, bearings, and complete transaxle assemblies for reliable operation. With our Bad Boy Mower Part diagrams, you can quickly identify and order the correct replacement parts. A failing transaxle can cause jerky movements, power loss, and inefficient mowing, making regular maintenance essential. We provide Bad Boy Parts Online for fast ordering and immediate availability of essential components. Plus, enjoy Free Shipping On Orders Over $100, making transaxle maintenance cost-effective and stress-free. Keep your 2025 Raider Transaxles operating at their best—order today to ensure seamless performance and enhanced mower longevity.

Bad Boy Mower Parts Lookup

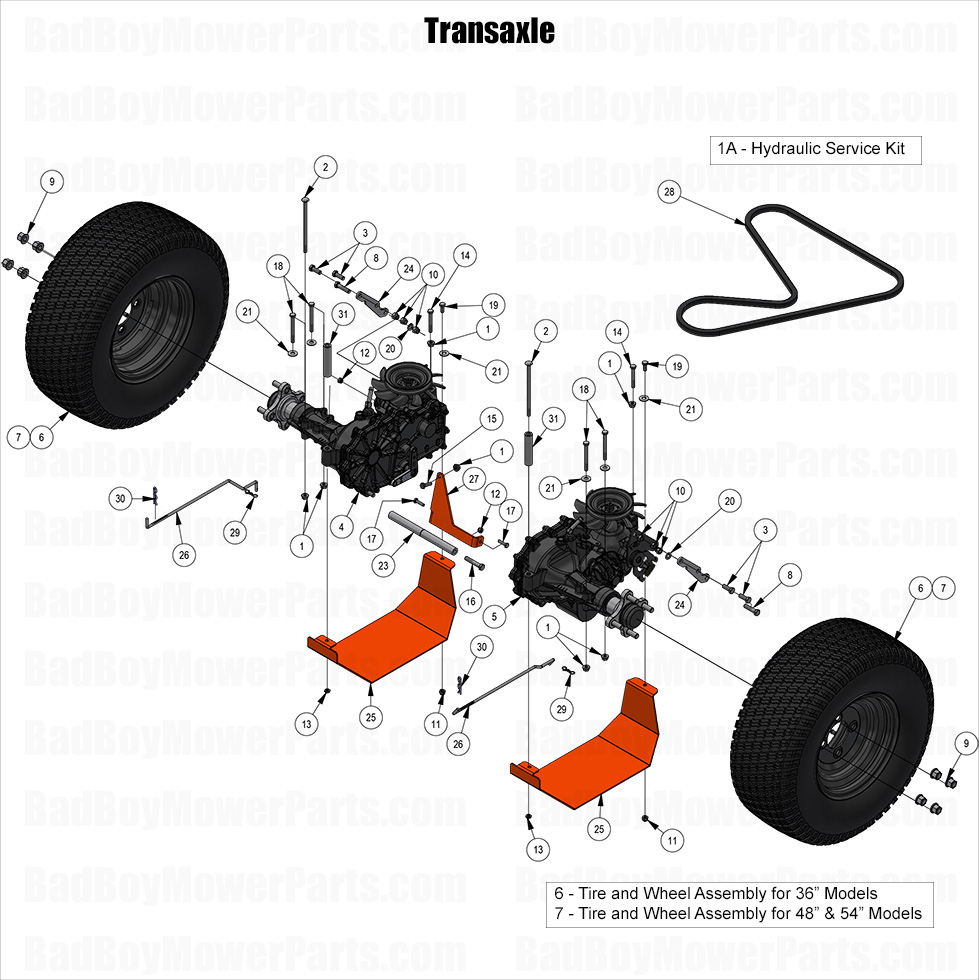

2025 Raider - Transaxles
  Position Number SKU Product Title Price
1A 085-4051-00 085-4051-00 - Hydro Service Package for 2020 and Older Models with Expansion Tanks - ZT2800, ZT3100, ZT3200, and all ZT3400
$104.74
1 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
2 018-0056-00 018-0056-00 - 5/16x6 Carriage Bolt
$2.99
3 018-6049-00 018-6049-00 - 3/8-16 X 1 Hex Bolts Zinc
$2.99
8 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
9 013-3000-00 013-3000-00 - Acorn Lug Nut
$3.29
10 013-5041-00 013-5041-00 - 3/8-16 Nylon Insert Locknut Zinc
$2.99
11 013-8047-00 013-8047-00 - 5/16-18 Nylon Insert Locknut - Zinc
$2.99
12 013-8073-00 013-8073-00 - 1/4-20 Nylon Insert Locknut Zinc
$2.99
13 013-9005-00 013-9005-00 - 5/16-18 Nylock Jam Nut
$2.99
14 018-0023-00 018-0023-00 - 5/16-18 x 2.25" Hex Bolt
$2.99
15 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
16 018-3000-00 018-3000-00 - 3/8-16 X 2 Hex Bolts Zinc
$2.99
17 018-4007-00 018-4007-00 - 1/4-20 X 1 Hex Bolts Zinc
$2.99
18 018-4701-00 018-4701-00 - 5/16-18 X 3 Hex Bolt Zinc
$2.99
19 018-8063-00 018-8063-00 - 5/16-18 X 3/4 Hex Bolt
$2.99
20 019-5037-00 019-5037-00 - 3/8" Lockwasher Zinc
$2.99
21 019-8044-00 019-8044-00 - 5/16 USS Flat Washer Zinc
$2.99
23 025-0018-00 025-0018-00 - 2017 Transaxle Spacer Walk Behind
$11.76
24 026-0173-00 026-0173-00 - 2020 Walk Behind Hydro Plate Extension-- No Longer Available
Obsolete.
25 026-3441-00 026-3441-00 - 2020 Walk Behind Trans Skid Plate--Orang
$53.49
27 039-1917-00 039-1917-00 - Walk Behind Brake Pull Bracket
$10.99
28 041-8053-00 041-8053-00 - Walk Behind Pump Belt
$58.84
29 044-2004-00 044-2004-00 - Bow Pin
$2.99
30 044-2008-00 044-2008-00 - Neutral Rod Clip
$2.99
31 025-0070-00 025-0070-00 - Transaxle Spacer
$6.41
