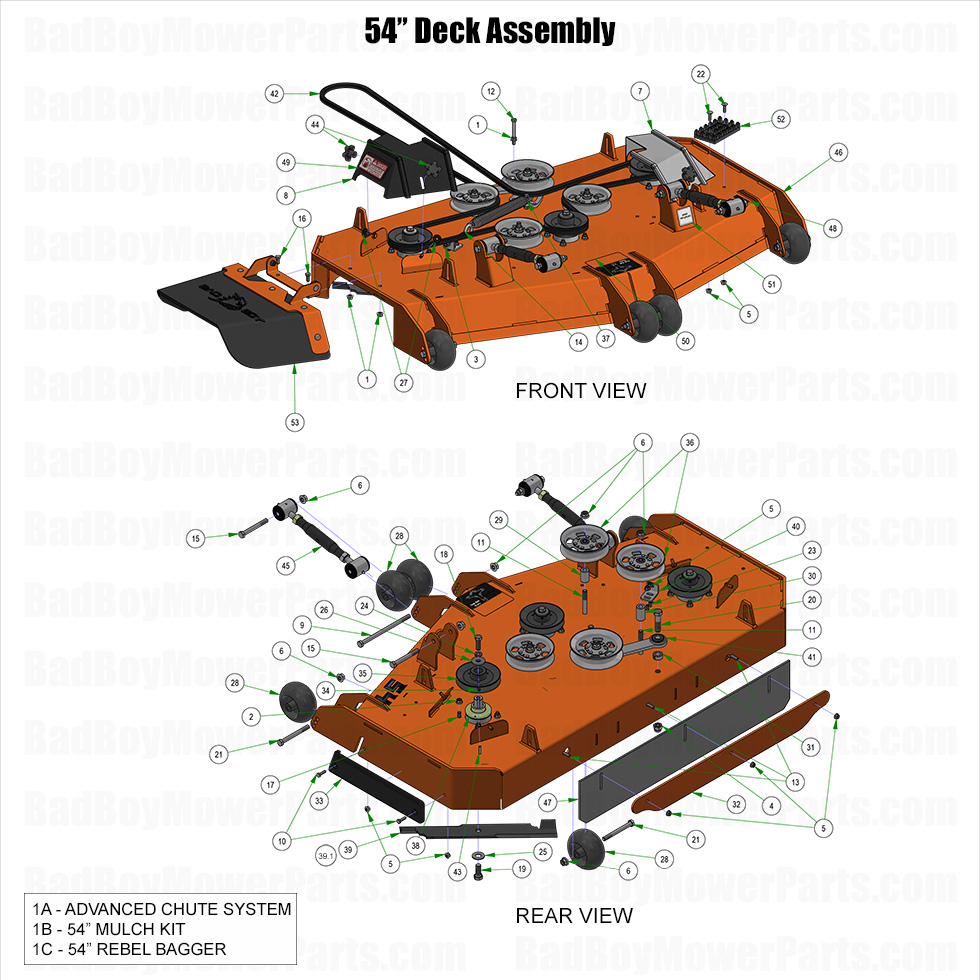

2025 Rebel & Rebel X - 54" Deck Assembly

2025 Rebel & Rebel X - 54" Deck Assembly

A properly maintained 2025 Rebel & Rebel X 54" Deck Assembly ensures a clean and professional cut every time. At BadBoyMowerParts.com, we provide top-quality Bad Boy Mower Parts to keep your deck in peak condition. From blades and spindles to pulleys and belts, our Bad Boy Lawn Mower Parts inventory has the right components for fast repairs. Using our Bad Boy Mower Part diagrams, you can quickly find and order the necessary parts for seamless installation. A well-maintained deck reduces vibration, increases mowing efficiency, and prevents excessive wear. We keep Bad Boy Parts Online available for immediate shipping, minimizing downtime. Plus, with Free Shipping On Orders Over $100, maintaining your mower has never been more affordable. Don’t let a worn-out deck affect your mowing performance—order 2025 Rebel & Rebel X 54" Deck Assembly replacement parts today and ensure optimal cutting results.

Bad Boy Mower Parts Lookup

2025 Rebel & Rebel X - 54" Deck Assembly
  Position Number SKU Product Title Price
1A 088-5419-00 088-5419-00 - Advanced Chute System for 2019-2025 54" Outlaws
$249.00
1B 210-0354-00 210-0354-00 - 54" Mulch Kit w/Blades (Not for MZ or Avenger) (See Models Used On for Detail)
$318.45
1C 092-4004-23 092-4004-23 Top Discharge Bagger (2019-2025 54" Rebel & Rogue)
$2799.99
1 013-5201-00 013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations
$2.99
2 013-5202-00 013-5202-00 - 3/8 Nylock Flange Nut
$2.99
3 013-6014-00 013-6014-00 - 3/8-16 Hex Nuts Zinc
$2.99
4 013-7021-00 013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc
$2.99
5 013-8049-00 013-8049-00 - 5/16-18 Nylon Flange Nut
$2.99
6 013-8050-00 013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon
$2.99
7 014-5050-00 014-5050-00 - 54" Deck Left Pulley Cover 2019-2022 Rebel & Rogue
$17.86
8 014-5051-00 014-5051-00 - 54" Deck Right Pulley Cover 2019-2025 Rebel & Rogue
$17.86
9 018-0046-00 018-0046-00 - 1/2-13 x 8" Hex Bolt
$4.06
10 018-2007-00 018-2007-00 - 5/16-18 X 1 Hex Bolt Zinc
$2.99
11 018-2018-00 018-2018-00 - 1/2 x 3 1/2 Flange Bolt - Gr 8
$3.62
12 018-4700-00 018-4700-00 - 3/8-16 X 3 Hex Bolts Zinc
$2.99
13 018-4703-00 018-4703-00 - 5/16-18 X 1-1/4 Carriage Bolt
$2.99
14 018-4707-00 018-4707-00 - 4" 3/8-16 Eye Bolt
$4.06
15 018-5019-00 018-5019-00 - 1/2-13 X 4 GR 8 Hex Bolt
$4.39
16 018-5250-00 018-5250-00 - 3/8-16 X 3/4 Hex Bolts
$2.99
17 018-6012-00 018-6012-00 - 3/8 x 1 1/2 Bolt
$2.99
18 018-6019-00 018-6019-00 - 1/2-20 X 1-1/2 Bolt Zinc, Fine Thread Bolt
$2.99
19 018-6020-00 018-6020-00 - 5/8-18 X 1-1/2 GR 8 Hex Bolts Zinc Yellow for Blade Spindle
$2.99
20 018-6059-00 018-6059-00 - 5/8-11 X 2-1/2 Hex Bolts
$2.99
21 018-7050-00 018-7050-00 - 1/2-13 X 4-1/2 Hex Bolts
$2.99
22 018-8065-00 018-8065-00 - 5/16-18 X 1 Carriage Bolt Zinc
$2.99
23 018-8066-00 018-8066-00 - 5/16 x 7/8 Carriage Bolt
$2.99
24 019-5007-00 019-5007-00 - 1/2 Lockwasher Zinc
$2.99
25 019-5038-00 019-5038-00 - 5/8 Flat Washer
$2.99
26 019-6020-00 019-6020-00 - 1/2 Belleville Washer #K2000-G -150
$5.16
27 019-6050-00 019-6050-00 -.360 ID Black Plastic Washer
$2.99
28 022-1001-00 022-1001-00 - Deck Wheel (See Models Used On For Detail)
$17.11
29 025-5338-00 025-5338-00 -.502 ID X.750 OD X 1.500" Spacer Zinc
$3.62
30 025-5339-00 025-5339-00 - .502 ID X 1.00 OD X 1.750 Length Spacer Zinc
$5.36
31 025-7020-00 025-7020-00 - 5/8 Set Collar w/One Set Screw
$4.37
32 026-0234-00 026-0234-00 - 61" Bolt In Baffle Deck V2 Striping Plat
$172.99
33 029-7036-00 029-7036-00 - Deck Trim Bumper
$23.41
34 030-0050-00 030-0050-00 - 5/16 Set Screw
$2.99
35 033-6006-00 033-6006-00 - 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (without set screw)
$35.48
36 033-7201-25 033-7201-25 - 5 3/4 Idler Pulley
$35.48
37 034-2030-00 034-2030-00 - 2019-Newer Deck Spring (See Models Used On For Details)
$31.22
38 037-4000-00 037-4000-00 - Commercial Spindle Assembly (See Models Used On For Details)
$291.91
39.1 038-0003-00 038-0003-00 - 54" & 2024 Raider 36" Deck Gator Mulching Blade
$22.99
39 038-0001-00 038-0001-00 - 54" & 2024 Raider 36" High Lift Fusion Blade
$22.99
40 039-0144-00 039-0144-00 - Deck Eye Bolt Tab For Rebel/Renegade/Rogue (See Models Used On For Details)
$14.19
41 039-6946-18 039-6946-18 - Deck Idler Assembly
$78.08
42 041-1650-00 041-1650-00 - B165 Deck Belt (See Models Used On For More Details, Not For 54" ZT/CZT/Maverick)
$90.94
43 042-6030-00 042-6030-00 - 1/4" x 1" Square Key
$4.81
44 045-6043-00 045-6043-00 - Black Plastic Knob Spindle Cover
$4.39
45 048-8000-00 048-8000-00 Turnbuckle Assembly (obsolete)
use part #048-9000-00
$80.24
46 060-5551-19 060-5551-19 - 2019 54" Sloped Deck Weldment
$1099.99
47 084-5004-00 084-5004-00 - R Series Rubber for Deck
$56.77
48 091-0504-00 091-0504-00 - MY24 54" Deck Decal
$10.99
49 091-3012-00 091-3012-00 - Danger Decal-Spindle/Discharge
$2.99
50 091-4036-00 091-4036-00 - 2019-2022 Rebel & Rogue Deck Belt Route Decal
$9.61
51 091-8001-00 091-8001-00 - Impact Absorption Patent Decal
$2.99
52 099-7000-00 099-7000-00 - Deck Step Assembly (See Models Used On For Details)
$53.49
53 210-7000-98 210-7000-98 - Chute Assembly (See Models Used On for Detail)
$159.22
